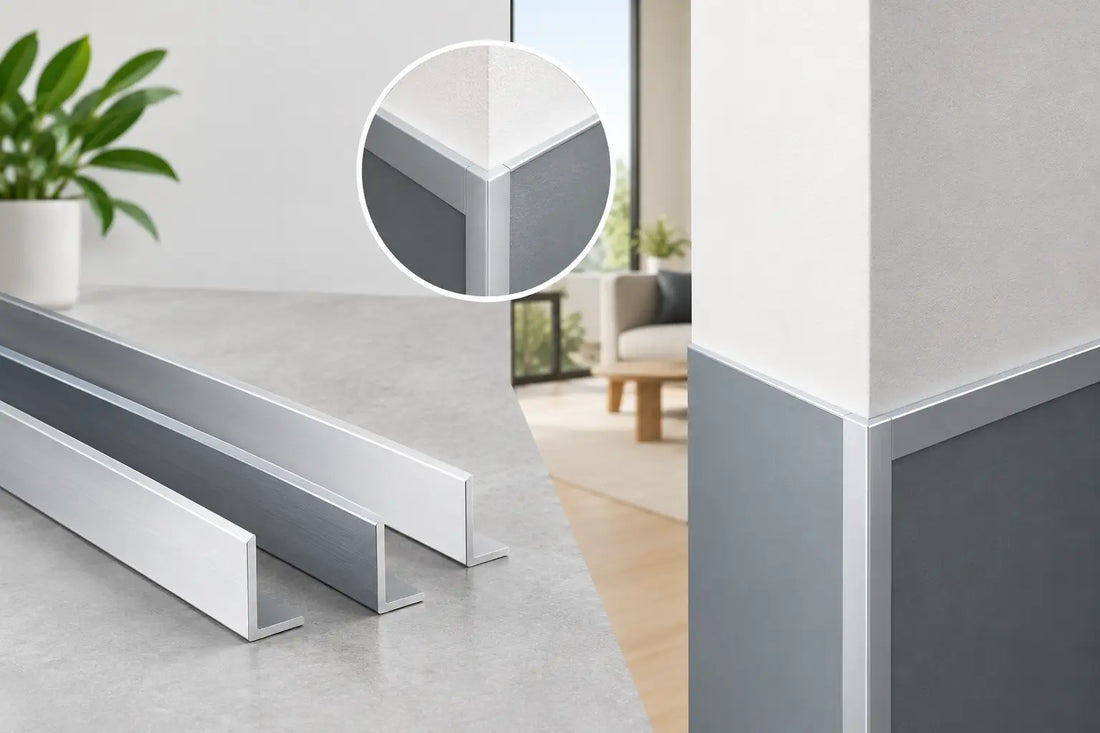

Aluminium Angle Trim for Clean Interior Edges

A sharp external corner is one of the first details people notice in a completed interior. Aluminium angle trim gives gypsum board returns, wall linings, joinery edges and exposed transitions a straight, durable finish that is difficult to achieve consistently with joint compound alone. Used correctly, it protects vulnerable corners while supporting the restrained lines expected in contemporary commercial, hospitality and high-end residential fit-outs.

The profile may look simple, but specification should not be an afterthought. Leg dimensions, metal thickness, finish, substrate and fixing method all affect the final result. The right angle trim can become a precise visual detail; the wrong one can create proud edges, uneven paint lines or a finish that is unsuitable for the level of impact the area receives.

What aluminium angle trim does

Aluminium angle trim is an L-shaped profile with two perpendicular legs. It is commonly installed over or alongside an external edge to create a clean arris, cover a cut material edge or protect a corner from routine knocks. In drylining work, it can finish exposed plasterboard returns around openings, bulkheads and feature walls. In joinery and interior fit-out, it is also used as a visible architectural accent or an edge guard between different finishes.

Unlike a conventional perforated corner bead designed to be concealed beneath compound, a solid aluminium angle is often specified where its face remains visible. This makes the quality of the profile and the accuracy of installation especially important. Raw aluminium offers a restrained metallic appearance, while powder-coated white or black profiles can either blend into a surface or create a deliberate linear contrast.

It is useful to separate three related functions. A trim may protect an edge, conceal a junction, or form a visible design line. One profile can do all three, but only when its proportions and finish suit the surrounding assembly.

Selecting aluminium angle trim by application

Start with the construction detail rather than choosing a standard size by habit. The same profile that works well on a plasterboard nib may be too light for a busy corridor corner or too visually heavy for a fine joinery reveal.

Drylining and plasterboard returns

For external plasterboard corners, the trim must sit straight over a sound, accurately cut substrate. A narrow leg can produce a discreet finished edge, particularly where the profile is intended to read as a fine line. Wider legs provide more cover where board edges are less precise, but they create a more pronounced visible detail.

Consider the board thickness and any skim, paint or decorative coating build-up. A profile that is proud of the intended finish can catch the light and look accidental. Where the aim is a concealed reinforced corner beneath a plaster finish, a purpose-made angle or corner bead is usually the better choice than a decorative exposed profile.

Joinery, wall panels and material transitions

Visible aluminium angles are frequently used to finish laminate, veneer, compact board or decorative wall panel edges. Here, the profile needs to cover the exposed material sufficiently without overwhelming it. A crisp black angle can frame light timber panelling effectively, while a natural aluminium finish can suit stone, concrete-effect and metal-led palettes.

Allow for movement in timber-based materials and check that the trim will not restrict expansion at panel junctions. The trim should finish the edge, not force separate elements into a rigid assembly where movement is expected.

High-traffic corners

In circulation routes, retail environments and public-facing interiors, an aluminium angle can provide a stronger exposed edge than an unprotected plaster corner. However, aluminium trim is not automatically a heavy-duty impact protection system. The expected traffic, trolley use, cleaning regime and risk of direct impact should guide the decision. Areas subject to repeated hard knocks may require a dedicated corner guard or a more substantial protection detail.

Glazing and partition interfaces

Around glazed partitions, aluminium angles can help align adjacent drylining, linings or joinery with the minimal geometry of glazing U channels and frameless glass systems. The profile should not interfere with glass tolerances, gasket zones, door clearances or the movement allowances required by the partition system. This is a coordinated detail, not simply an edge trim added at the end of the project.

Choose leg size, thickness and finish together

Leg dimensions determine how much of each face the trim covers. Equal-leg angles create a balanced corner detail, while unequal-leg profiles can suit a return where one face needs more coverage than the other. A larger angle is more forgiving of irregular cuts, but it also creates a stronger visual line.

Material thickness affects stiffness and handling. A thin profile can be appropriate for a lightly used decorative detail, provided the substrate is true and fixing is continuous. A heavier gauge is better able to remain straight over longer lengths and is less likely to dent during installation or later use. It does not remove the need for careful handling: exposed aluminium can still be scratched, marked or distorted before handover.

Finish selection is equally practical. Mill-finish aluminium has a natural industrial appearance but can show handling marks and variations more readily than a coated profile. White powder coating can integrate with painted drylining, although colour matching should be checked against the specified paint system. Black trim gives a defined shadow-like outline, but any poor alignment will be more noticeable. Requesting a sample before ordering a full project quantity is worthwhile where finish, sheen and edge proportion are central to the design intent.

Installation details that determine the final line

A profile cannot correct a poor substrate. Before fixing, check that plasterboard edges are straight, corners are square where required, and the wall face is free from high spots. Dry fitting a length first will reveal whether a joint, cut edge or fixing head is likely to push the trim out of line.

Cutting should produce a clean, burr-free end. Use equipment suited to non-ferrous metal and protect the visible face during handling. Mitred corners can look refined on short, carefully controlled details, but they require accurate cutting and are vulnerable to opening if the substrate moves. Butt joints are often more practical on long runs, provided their position is planned and the ends are neatly finished.

Fixing method depends on the substrate and whether the profile is exposed. Adhesive can provide a clean appearance where the trim is light and the backing is stable, but it relies on proper surface preparation and even contact. Mechanical fixings offer positive retention, particularly on longer lengths or areas exposed to knocks, yet screw heads must be positioned and finished deliberately. On a visible architectural angle, randomly spaced exposed fixings can undermine the purpose of the detail.

Use a straightedge or laser to maintain alignment over the full run. Short sections may look acceptable in isolation but reveal a visible wave once paint, lighting and adjoining lines are complete. Protect finished trim from wet trades, abrasive cleaning and contact with steel tools that can mark the surface.

Avoid common specification errors

The most frequent error is treating every external corner as the same condition. A decorative angle, a plaster-ready corner bead and an impact guard have different roles. Selecting on appearance alone can leave an edge under-protected or introduce a profile that cannot be integrated cleanly with the finish build-up.

Another issue is ignoring adjacent details. A wall angle may terminate at a recessed skirting profile, door frame, glazing channel or ceiling shadow gap. These interfaces need to be drawn and set out together so that profile faces align and no awkward slivers of board or sealant remain. Where several architectural trims meet, consistent reveal widths and finish colours matter more than any individual component.

Finally, do not assume aluminium is appropriate in every environment without checking the wider specification. Moisture exposure, cleaning chemicals, contact with dissimilar metals and local fire-performance requirements may affect the chosen profile, finish or fixing method. The trim should support the assembly requirements, not be expected to provide performance it was not designed to deliver.

For projects where clean edges carry the design, aluminium angle trim is a small component with a large visual effect. Set out the profile early, test the finish against adjacent materials, and give the installation team a clear termination detail. That preparation is what turns a simple L-section into a consistently sharp architectural finish.
