Choosing the Right Frameless Glass Door Closer
Share
A frameless glass door closer is the component that determines whether a glass partition door feels controlled and deliberate or becomes a recurring snag on site. The glass may be perfectly aligned and the patch fittings neatly positioned, but poor closing speed, incorrect spring power or an unsuitable mounting arrangement will quickly undermine the finished installation.
For commercial partitions, hospitality interiors, offices and high-end residential schemes, the closer must work with the glass specification, door size, opening direction and surrounding construction. Selecting it early also helps avoid late changes to patch preparation, floor finishes and access-control hardware.
What a Frameless Glass Door Closer Does
A frameless glass door closer returns an opened glass door to its closed position through a controlled hydraulic mechanism. Depending on the system, it may be supplied as a floor-mounted hydraulic patch closer, an overhead closer, or a concealed closer integrated with compatible patch fittings and pivot hardware.
The principle is straightforward, but adjustment is where installation quality is won or lost. Hydraulic valves control the main closing sweep and the final latching action. The first stage brings the door through most of its travel; the latch stage applies the final movement needed for the lock, latch or magnetic catch to engage correctly. If the sweep is too fast, the door can feel harsh and place unnecessary stress on the fittings. If it is too slow, the latch may not engage consistently.
A closer is therefore not simply a self-closing device. It is part of the operating system for the whole glass door assembly, working alongside hinges or pivots, pull handles, locks, stops, glazing channels and any access-control equipment.
Choose the Closer Around the Door, Not the Opening
The starting point is the actual glass leaf. Door width, height, thickness and weight affect the power required from the closer. A wide, tall glass door with heavy patch fittings has greater closing momentum than a narrow internal leaf, even where both use the same glass thickness.
Manufacturers state maximum door weight and width limits for each closer. These limits should be treated as operating boundaries, not targets to be exceeded. A closer selected at the edge of its rating may struggle to provide reliable latching, particularly where air pressure, stack effect or building ventilation influences the door. For heavily used routes, selecting sufficient capacity with a sensible margin is usually preferable to forcing a small closer to do more than it was designed for.
Glass thickness is equally important. Common frameless applications use toughened safety glass, but the required preparation, clamp arrangement and compatible fittings vary between systems. The glass processor needs accurate details for holes, notches and cut-outs before manufacture. Drilling or modifying toughened glass after tempering is not an option, so the closer and patch-fitting schedule must be agreed before the glass is ordered.
Floor-mounted hydraulic patch closers
A floor-mounted hydraulic patch closer is a common choice where minimal visual interruption is the priority. The main body is recessed into the floor within a floor box, while a top patch or pivot controls the upper fixing point. This arrangement produces a clean glass elevation and can suit single or double-action doors.
Its main trade-off is coordination. The floor box position must align accurately with the glass pivot, and the finished floor level must be known. Tile thickness, screed build-up, stone flooring, carpet transitions and underfloor heating all require consideration before cutting or recessing the substrate. A closer that is level with the structural slab but incorrectly set relative to the finished floor will create adjustment problems later.
Floor closers also require a suitable base construction and allowance for access to adjustment screws. On refurbishment work, checking slab depth, reinforcement and services before selecting a recessed unit is essential.

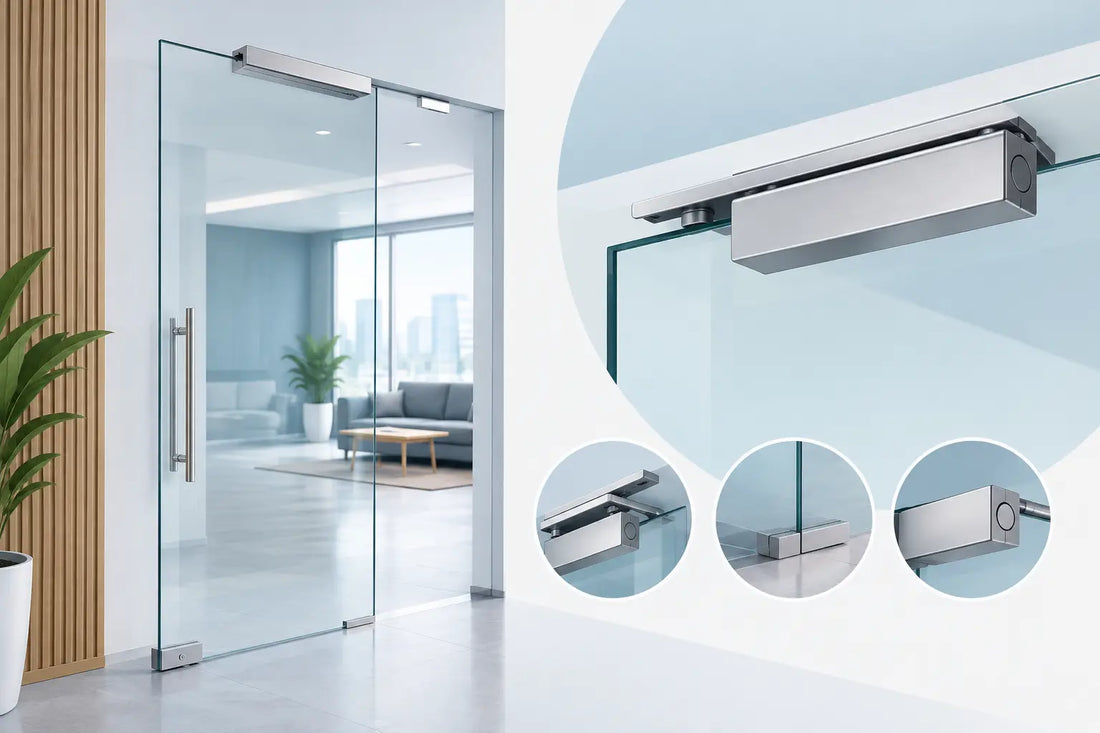

Overhead and surface-mounted closers
Overhead closers can be a practical alternative where floor penetration is restricted or where maintenance access is more important than a fully concealed appearance. They may suit glass doors within a framed head detail or systems with purpose-designed top rails and brackets.
The visual result depends on the surrounding partition system. In a highly minimal installation, an exposed overhead body may be less desirable than a floor spring. In a busy commercial environment, however, easier inspection and servicing can justify the visible hardware. The correct choice depends on the architectural intent, duty cycle and available structure above the opening.
Opening Type, Hold-Open and Stops
Before ordering, confirm whether the door is single-action or double-action. A single-action door opens in one direction and normally closes against a stop, frame or rebate. A double-action door can swing both ways and is typically controlled by a floor closer with a defined centre position. The closer must be designed for the required movement; this cannot be resolved by adjustment alone.
Hold-open is another decision that should be made at specification stage. Some closers provide fixed hold-open points, often at 90 degrees, while others are non-hold-open. Fixed hold-open can assist cleaning, deliveries and day-to-day movement, but it may be unsuitable on escape routes or in areas where doors must remain shut for security, acoustic or environmental reasons. Project requirements and applicable regulations should always take precedence over convenience.
Physical stops are not optional accessories. A wall stop or floor stop limits travel before the door can strike adjacent glass, plasterboard returns, furniture or ironmongery. The stop position must account for the pull handle projection, not only the glass edge. On double-action doors, the permitted swing in both directions needs checking, especially where the opening sits close to a corridor wall or return partition.
Coordinate Hardware as One Assembly
A frameless glass door closer performs best when every item is selected as a compatible set. Mixing hardware from different systems can create conflicts in pivot dimensions, glass cut-outs, spindle heights and clearances. A door may appear to fit during dry assembly but then bind, sit out of plumb or fail to latch once final finishes are complete.
Confirm these details before releasing the glass and hardware order:
- glass thickness, leaf dimensions and finished weight;
- closer type, maximum capacity and required opening function;
- pivot centres, top-patch arrangement and floor-box setting-out;
- lock, lever latch, pull handle and strike details;
- wall, floor or glass stops and their final positions;
- finished floor level, floor build-up and substrate limitations.
Installation Details That Affect Performance
Accurate setting-out is more valuable than excessive adjustment. Establish the pivot line from a fixed datum, then set the floor box or base plate in relation to the final floor level. Check the head fixing and top pivot directly above it. If upper and lower pivots are not vertically aligned, the glass can twist through its travel and load the fittings unevenly.
Protect the closer during wet trades and flooring work. Cementitious materials, dust and moisture can damage moving parts or obstruct adjustment points. The cover plate should be fitted cleanly after final floor work, with no raised edges that create a trip risk or collect dirt.
Once the glass is hung, adjust the closer gradually. Start with the door operating freely and the latch or lock correctly aligned. Make small changes to sweep and latch speed, allowing the hydraulic mechanism to settle between adjustments. Avoid fully closing adjustment valves or forcing screws beyond their travel, as this can damage the closer and void manufacturer support.
The completed door should close consistently from a normal opening angle without slamming, drifting open or stopping short of the latch. It should also be tested under the building conditions it will actually experience. A door that works during a quiet fit-out can behave differently once mechanical ventilation is commissioned and nearby doors are operating.
Maintenance and Replacement Planning
Hydraulic closers are serviceable building components, not fit-and-forget hardware. Periodic inspection should cover loose patch screws, cover-plate condition, oil leakage, unusual resistance, closing speed and correct latch engagement. If a door begins to slam or no longer closes fully, first check for changed floor levels, loose stops, misaligned strikes or obstruction before assuming the closer itself has failed.
For phased refurbishments and repeat installations, standardising a compatible closer and patch-fitting arrangement can reduce errors in procurement and simplify spares planning. It also gives installers familiar glass preparations and predictable adjustment procedures across multiple openings.
A well-selected closer lets the door disappear into the architecture when it is not being used, while delivering controlled movement every time it is. That is the practical detail behind a frameless glass partition that continues to look precise long after handover.
