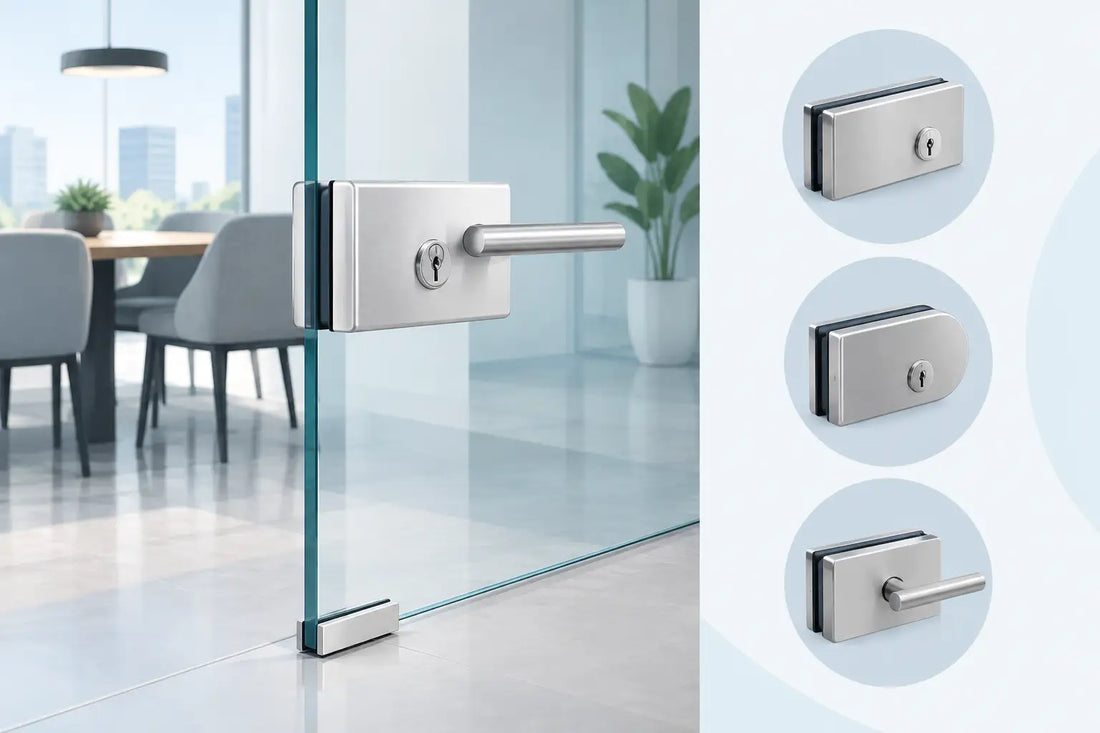

Choosing a Glass Door Patch Lock for Frameless Doors
Share
A frameless glass door can look deceptively simple, but the locking point is where appearance, security and glass fabrication have to work together. A correctly specified glass door patch lock keeps the door line clean while providing a dependable closing and locking arrangement for offices, meeting rooms, retail units and high-end residential interiors. The wrong unit can leave a door difficult to operate, visually mismatched or impossible to fit once the glass has been toughened.
What a glass door patch lock does
A patch lock is a mechanical lock body fixed directly to the edge or lower area of a frameless glass door. Rather than sitting within a timber or aluminium stile, it clamps around prepared toughened glass through factory-made cut-outs. It is commonly paired with a floor strike, wall-mounted keep, glass-to-glass receiver or a strike plate within a slim frame.
This arrangement allows the door to retain the minimal appearance expected of frameless glazing. The lock body remains visible, but it is compact and designed as part of the hardware composition, alongside patch hinges, a hydraulic patch closer, pull handles and floor or wall stops.
Most patch locks are used on single-action or double-action glass doors in internal partitions. They can provide a simple latch function, key locking from one or both sides, a thumbturn on one side, or a cylinder arrangement suited to a building-wide keying schedule. The right choice depends on who needs access, whether privacy is required, and the door’s opening configuration.
Start with the door system, not the lock finish
Finish is often the first feature discussed on design-led projects, particularly where black, brushed stainless steel or polished chrome hardware is visible against clear glass. It should not be the first specification decision. A glass door patch lock must first be compatible with the door leaf, closer, frame condition and strike location.
Confirm glass thickness and preparation
Frameless door hardware is typically designed for a defined glass thickness, commonly 10 mm or 12 mm toughened safety glass. The lock body, gaskets and fixing screws must suit the actual panel thickness. Do not assume that a patch designed for 10 mm glass will clamp securely to 12 mm glass simply by tightening the fixings.
The glass also requires accurately positioned holes and notches. These must be finalised before the panel is toughened. Toughened glass cannot be drilled, cut or reworked on site without shattering, so the glass processor needs the hardware preparation drawing early in the procurement process.
Check the required edge clearance as well as the cut-out size. A lock positioned too close to an edge, corner or adjacent hinge preparation can compromise both fitting tolerances and the visual balance of the door.
Establish handing and door movement
Handing determines where the lock, cylinder, handle and strike sit in relation to the opening. On pivoted doors, also establish whether the leaf opens in one direction or swings both ways. A double-action hydraulic patch closer can return the door from either direction, but the locking arrangement still needs a positive and correctly located receiving point.
For a single door closing against a wall or aluminium frame, a wall-mounted strike or framed keep may be appropriate. For a door within a glass partition, a glass-to-glass keep can maintain the all-glass appearance. Pairs of doors introduce another decision: one leaf may be fixed with a floor bolt while the active leaf locks into it, or both leaves may require a coordinated locking solution.
Door movement should also be checked against adjacent walls, furniture and circulation routes. A lock body or pull handle that contacts a partition before the door reaches its intended opening position will quickly damage the hardware or glass. Select a correctly positioned stop as part of the same system.
Coordinate with the closer and hinges
The lock does not operate in isolation. A hydraulic patch closer or overhead closer must bring the leaf into its closed position accurately enough for the latch or bolt to engage the keep. If the closer speed, final latch action or pivot alignment is poorly adjusted, users may have to pull the door closed manually before locking it.
For frequently used commercial doors, this coordination matters more than the nominal lock rating. A high-quality lock cannot compensate for a sagging leaf, a poorly aligned floor pivot or a closer that does not overcome the final few degrees of travel.
Select the locking function for the room’s use
A meeting room, consultation room and back-of-house store may all use frameless glass doors, yet their lock requirements differ considerably. Specify the function around daily use rather than selecting a standard key cylinder by default.
A latch with a privacy turn is often sufficient for an internal room where occupants need temporary privacy but no controlled access. A key-and-thumbturn arrangement allows authorised entry from the corridor while avoiding the need for a key on the occupied side. Double-cylinder locks can suit restricted rooms, although the escape implications and applicable building requirements must be reviewed before use.
For access-controlled doors, the glass patch lock may form only one element of the assembly. Electric strikes, maglocks or access-control readers need careful coordination with the partition system and means of escape. A conventional mechanical patch lock is not automatically compatible with every electronic access strategy.
Before placing an order, confirm these five points with the project team and hardware supplier:
- Glass thickness, panel dimensions and final preparation drawing.
- Door handing, swing direction and pivot or hinge arrangement.
- Lock function, cylinder type and any master-key requirement.
- Strike location: floor, wall, frame or adjacent glass panel.
- Required finish across locks, patch fittings, handles and closers.
Security, privacy and life-safety need separate decisions
A lock that provides privacy is not necessarily a security lock. Likewise, a stronger cylinder does not make a glazed partition suitable for high-security use. The surrounding glass, framing, access route and fixing substrate all affect the performance of the complete opening.
On many internal fit-outs, the practical requirement is controlled access and a professional closing action rather than forced-entry resistance. In that case, a reliable lock patch, quality cylinder and accurately fitted keep are usually more valuable than an over-specified product that complicates installation.
Where the door sits on an escape route, or forms part of a fire, acoustic or security-rated assembly, do not assume standard frameless hardware is acceptable. The entire tested system must be specified for that duty. Glass type, frame, seals, closer, lock, ironmongery and installation method may all be controlled by the relevant certification and project requirements.
Match the finish without treating it as purely decorative
Hardware finishes influence the visual discipline of a glazed partition. Brushed stainless steel remains a practical choice for high-traffic commercial spaces because it conceals fingerprints and minor handling marks better than polished finishes. Black hardware provides strong definition against clear glass and works particularly well with black aluminium glazing channels, but scratches and inconsistent sheen can be more apparent.
Polished chrome can suit hospitality and premium residential schemes where a brighter finish is intended. It generally needs more cleaning to retain its appearance. The best result comes from specifying the lock, hinges or patch fittings, pull handles and closer cover in a compatible finish family from the outset. Mixing nominally similar finishes from unrelated ranges can produce visible differences in tone and texture.
Also consider cleaning products. Abrasive pads and aggressive chemicals can mark plated or coated surfaces, while residue around gaskets can detract from the clean edge detail of the glass.
Installation details that protect the finished door
A glass door patch lock should be installed by experienced glazing or partition contractors using the manufacturer’s setting-out dimensions. The glass must be clean at the contact points, and protective gaskets should sit flat between the metal body and the glass. Metal must never bear directly against the glass edge.
Tighten fixings progressively and evenly. Excessive torque can stress the glass around holes or cause gaskets to distort; insufficient torque can allow movement under repeated use. Once fitted, align the strike so the bolt or latch enters without scraping, forcing or lifting the door leaf.
Commissioning should include more than checking whether the key turns. Operate the door from both sides, test the closer through its full swing, confirm the door stops in the intended position and check that handles, lock body and pull furniture clear surrounding finishes. Recheck the setting after initial use, particularly on busy project handovers where partitions can settle and closer adjustments are often altered.
Build the lock into the specification early
The most efficient frameless door installations are coordinated before glass fabrication, not corrected after delivery. Include the glass door patch lock on the door schedule alongside glass thickness, hardware finish, handing, closer type, pull handle position and strike condition. This gives the glass processor, installer and procurement team one clear reference point.
Where finish samples or hardware compatibility remain undecided, resolving those details before the glass is ordered is far less costly than revising a toughened panel on site. Partitions Ltd supports this approach by bringing compatible glazing-partition components and door hardware into one focused specification route.
A well-chosen patch lock should feel almost unremarkable in daily use: the glass closes accurately, the key or thumbturn operates cleanly, and the hardware supports the crisp, minimal partition line the project was designed to achieve.
