Choosing Commercial Glass Door Pull Handles

A pull handle is one of the first components a user touches on a frameless entrance or partition door. Commercial glass door pull handles therefore need to do more than suit the visual scheme. Their size, fixing method, finish and position must work with the glass thickness, lock arrangement, door closer and traffic level to give a controlled, durable result.

For glazed office fronts, meeting rooms, retail entrances and hospitality partitions, the handle is a visible architectural detail. A poorly proportioned or incorrectly drilled handle can make an otherwise precise glass installation look improvised. Specifying it alongside the patch fittings and door hardware avoids that problem.

Start with the door system, not the handle finish

The appearance of a pull handle matters, particularly where black hardware, satin stainless steel or polished finishes form part of the interior palette. However, the door construction sets the first requirements. Confirm whether the door is frameless toughened glass, framed glass or part of a patch-fitted system, then establish the glass thickness and the hardware drilling schedule.

Most commercial glass door pull handles are through-fixed with paired fixing bosses passing through pre-drilled holes in the glass. This produces a secure, clean installation, but it means hole positions must be agreed before the glass is manufactured. Toughened glass cannot be drilled, cut or reworked after tempering. A late handle change may therefore require replacement glass rather than a simple site alteration.

Door handing and swing also affect the specification. On a single-action swing door, check that the handle will not foul an adjacent glazed panel, wall return, side-light or door stop. On double doors, allow sufficient clearance between opposing pulls. Where the door closes against a patch lock or a floor-mounted keep, the handle position should leave comfortable operating space without conflicting with the lock body.

Check glass thickness and drilling dimensions

Handle manufacturers typically state suitable glass thicknesses and required hole diameters. These figures should be used exactly, rather than estimated from a similar fitting. The fixing sleeve, protective gaskets and glass clamping surfaces are designed to work within a defined range.

A handle specified for 10 mm or 12 mm toughened glass may not clamp correctly on a thinner panel. Conversely, forcing a fixing through an unsuitable hole size can place unnecessary stress on the glass around the drilling. Obtain the final drilling detail from the selected handle before issuing the glass order, especially where the door also carries patch fittings, locks or hinges.

Selecting the right pull-handle type

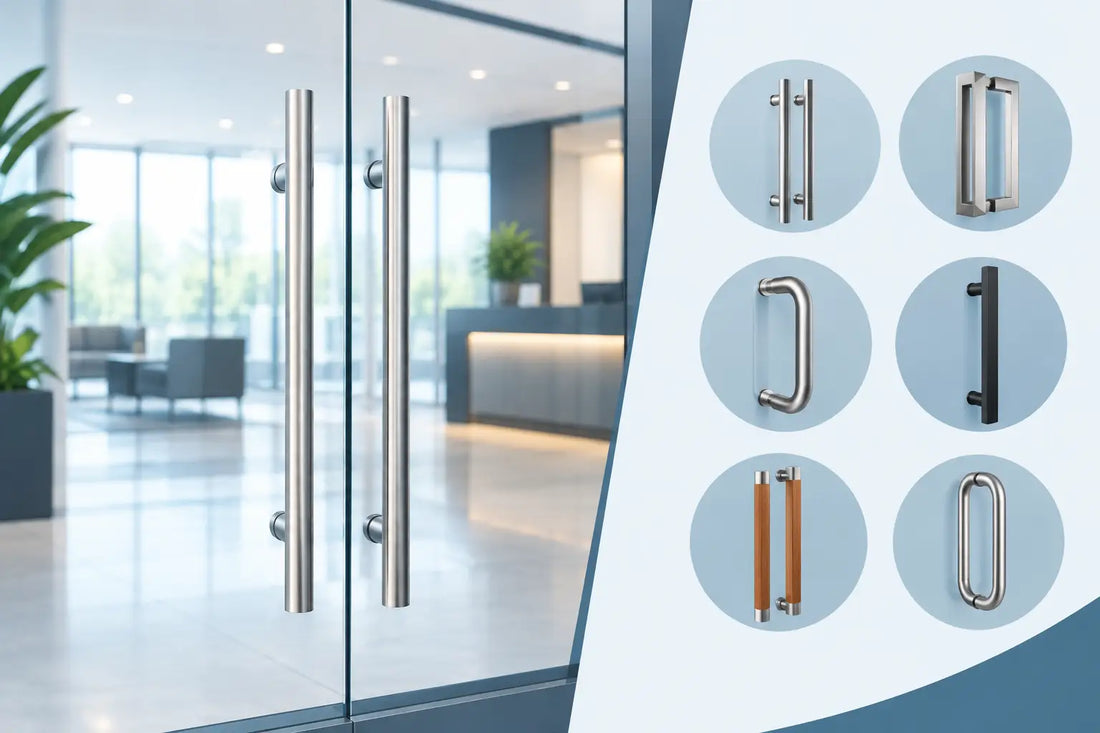

Straight back-to-back bar pulls are the standard choice for many commercial glazed doors. Their simple geometry suits contemporary partition systems and provides a consistent grip from both sides of the door. They are available in a range of lengths and diameters, allowing the handle to be scaled to suit a narrow office door or a larger, heavier entrance leaf.

Offset and D-shaped pulls can be useful where additional hand clearance is required, or where the project calls for a more pronounced visual feature. Ladder pulls are often selected for taller entrance doors and higher-traffic settings because they offer more than one gripping height. The trade-off is visual weight: a large ladder handle can dominate a light internal glass screen if it is not proportioned carefully.

Recessed or flush pull solutions have a different purpose. They are suited to sliding glass doors, pocket systems or locations where projections into a circulation route must be kept to a minimum. They are not a substitute for a full pull handle on a hinged commercial door where users need positive leverage to overcome the door closer.

Handle length should reflect the door and use

There is no single correct handle length. A modest pull may be appropriate for a lightly used meeting-room door, while a taller pull gives a clearer point of contact on a principal entrance. As a practical rule, consider the width and height of the glass leaf, the visual scale of nearby frames and partition channels, and the expected user group.

Accessibility also deserves attention. The gripping area should be easy to identify and reach, with sufficient clearance between the handle and the glass for a full hand. A slim diameter may look refined but can feel less comfortable where the door is heavy or frequently used. On doors with hydraulic patch closers, the closing resistance and latch action should be considered alongside the handle profile.

Coordinate pull handles with locks and closers

Glass door hardware works as a system. A pull handle may sit close to a deadlock, magnetic latch, lever latch or patch lock, and these components need to be arranged so each remains usable. On a lockable door, the key cylinder, thumbturn or lever should not be obstructed by the handle tube or fixing boss.

The closer type also matters. Floor springs and hydraulic patch closers can control substantial glass leaves, but the user still needs a handle that provides effective leverage. If the door has a strong closing force, an undersized pull may make opening less comfortable. Equally, an oversized handle will not correct a closer that has been set too heavily or installed outside its intended door-weight range.

For fire, escape and access-controlled doors, confirm the full door requirement before selecting a pull. A pull handle is not a panic exit device, and it should not be specified where a compliant emergency-opening solution is required. Hardware compatibility, door function and applicable project requirements must take priority over appearance.

Choose finishes for the environment, not only the scheme

Satin stainless steel remains a practical choice for commercial interiors. It works with a broad range of glazing channels and patch fittings, disguises light handling marks better than a polished surface, and has a restrained architectural appearance. Polished stainless steel can suit more formal hospitality or retail applications, though it will show fingerprints and fine surface marks more readily.

Black finishes create strong definition against clear glass and complement black aluminium partition profiles. They are especially effective in minimal-framed office fronts and contemporary refurbishment projects. Their long-term appearance depends on the quality of the coating and the cleaning regime. Abrasive pads and unsuitable chemical cleaners can damage coated surfaces, leaving visible wear around the gripping zone.

Brass-toned and bronze finishes can provide warmth in premium hospitality, residential and retail interiors. These require careful coordination with hinges, locks, patch fittings and adjacent ironmongery. Mixing nominally similar finishes from different suppliers can produce noticeable variation under the same lighting, so sample approval is worthwhile where the finish is central to the design.

Installation details that protect the glass

The glass should be clean and fully supported during handle installation. Fixings must be tightened evenly, using the manufacturer’s recommended sequence and without over-tightening. Protective washers or gaskets should remain correctly positioned between metal components and glass to prevent direct contact and distribute clamping pressure.

Before final tightening, check handle alignment from both elevations. On a glass partition, even a slight misalignment is highly visible because there is no frame detail to disguise it. Confirm the pull is level, parallel to the glass edge and consistent with handles on adjacent doors.

Installers should also check operational clearances with the door fully open and closed. This includes clearance to walls, glazing channels, furniture, access-control readers and door stops. The correct stop is particularly important: allowing a glass door to strike a wall or partition end can damage both the handle and the door hardware.

Plan maintenance into the handover

Commercial door pulls are high-contact components. A simple maintenance plan helps preserve their appearance and keeps fixings secure. Routine cleaning with a soft cloth and a suitable non-abrasive cleaner will remove fingerprints and surface residue. Periodic checks should confirm that the fixing bosses remain tight, the handle has no movement, and the door closer, lock and stop are still operating correctly.

Where a handle is loose, do not continue tightening it repeatedly without investigating the cause. Movement can indicate worn fixings, incorrect glass-hole dimensions, missing gaskets or a door that is being subjected to impact. Addressing the underlying issue is safer than masking it with additional torque.

Specify early for a cleaner glazed partition result

Commercial glass door pull handles are small in comparison with the glazing system around them, but their effect on the finished partition is immediate. Early selection allows the glass drilling, lock position, patch fittings, closer and stops to be coordinated as one assembly. It also gives the project team time to review finish samples and confirm the handle’s scale against the intended interior.

For contractors and specifiers, the most efficient route is to finalise the door function first, then choose a pull that suits the glass, hardware layout and level of use. A correctly detailed handle will feel natural in use, remain aligned through daily traffic and support the crisp, minimal finish expected from a frameless glass installation.

Before glass is ordered, place the selected pull handle beside the final door schedule and drilling drawing. That one check can prevent the costly site compromises that are most visible on clear glass.
