External Corner Bead Types for Drywall Edges

A sharp external corner can make a partition line read as deliberate; a chipped, wavy or poorly aligned one can undermine an otherwise high-specification fit-out. Choosing between external corner bead types is therefore not simply a finishing decision. It affects impact resistance, plaster build-up, installation speed and the final visual language of the interior.

For drylining and gypsum plasterboard work, the correct bead should match the board thickness, jointing method, corner geometry and expected level of traffic. A standard 90-degree corner in a back-of-house corridor does not need the same detail as a curved feature wall in a hospitality scheme or a crisp reveal beside frameless glass.

What an external corner bead does

An external corner bead protects the exposed arris where two plasterboard faces meet. It gives the finisher a straight, consistent guide for joint compound or plaster, while reinforcing the point most likely to receive knocks from trolleys, furniture, luggage and day-to-day building use.

Most beads include a central nose and perforated, expanded or paper-faced wings. The wings key into the finish coat or are fixed directly to the board, creating a stable transition from corner to wall surface. The material and profile shape determine how the detail performs and how it appears once painted.

The best specification begins with the finish you are trying to achieve. Is the intention a fine, square architectural line, a softened bullnose, a return at the end of a partition, or a profile that can follow a non-standard curve? Once that is clear, the practical fixing and durability requirements become easier to resolve.

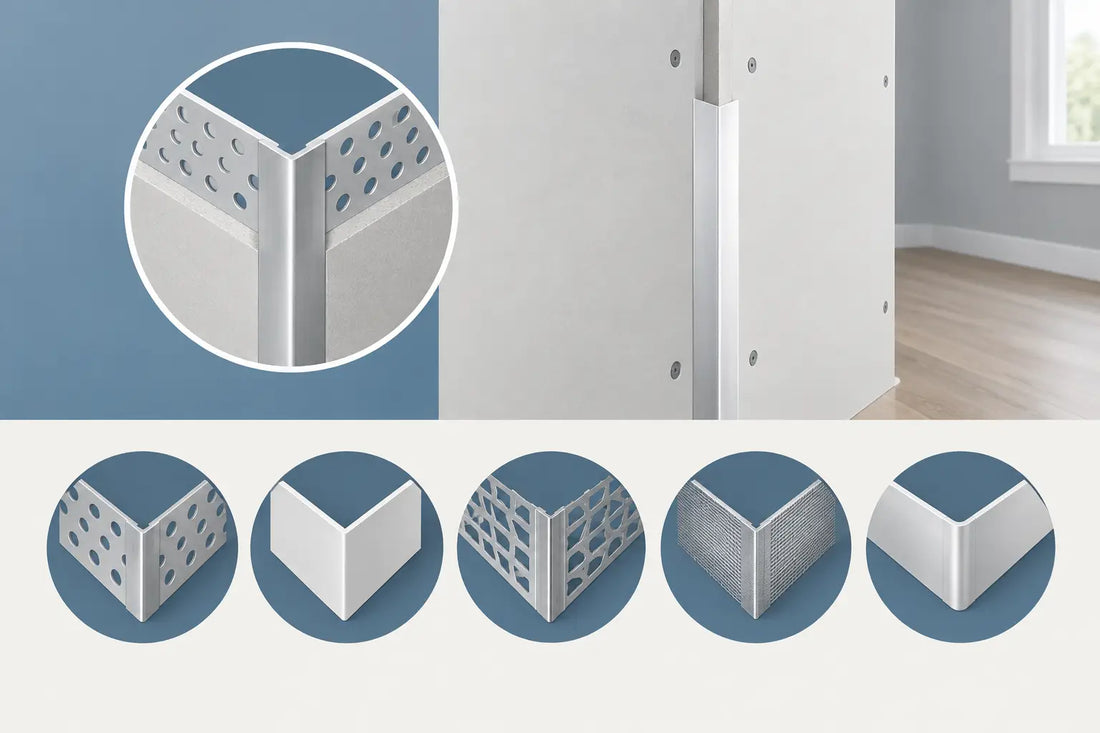

External corner bead types for drylining projects

Galvanised steel corner bead

Galvanised steel remains a familiar choice for conventional drylining. It provides a rigid, straight edge and good resistance to minor site damage during installation. Perforated wings give jointing compound a mechanical key, and the material is well suited to square 90-degree corners on standard gypsum plasterboard partitions.

Its strength is also its limitation. Steel is intended for straight, regular corners and is less forgiving where framing is out of line or where the corner needs to follow a radius. It must be cut cleanly and installed without distortion: a bent nose is difficult to disguise with compound. In damp or corrosive environments, specify a product designed for those conditions rather than assuming a standard galvanised bead is suitable.

Aluminium corner bead

Aluminium corner bead is a practical option where a light, corrosion-resistant profile is required. It creates a crisp line with a clean, consistent nose and is straightforward to cut and handle on site. For interior schemes that already use aluminium architectural trims, it can also support a more coordinated material approach, even where the bead itself will be plastered and painted.

As with steel, aluminium beads work best on straight external corners. Care is needed during transport and fixing because a lightweight profile can be dented if it is handled roughly. The substrate should be true before installation; bead is a finishing guide, not a solution for a poorly formed partition corner.

Paper-faced metal bead

Paper-faced metal bead combines a metal-reinforced nose with paper flanges that bed into joint compound. This produces a particularly clean transition at the edge of the bead and can reduce the risk of compound cracking along the wings when correctly installed.

It is often selected for high-quality taped-and-jointed finishes where a refined surface is the priority. The paper face needs full, even bedding and careful pressure during fitting. Dry patches, trapped air or insufficient compound behind the wings can leave a weak bond that may show later as blisters or edge movement.

PVC or uPVC corner bead

PVC corner beads are light, easy to cut and resistant to moisture. They do not rust and are commonly used where the project needs a simple, practical bead for internal drylining, particularly in areas subject to occasional humidity.

The trade-off is impact performance. A quality PVC bead can provide a durable finish, but it will not behave in exactly the same way as a rigid metal profile under concentrated knocks. For busy circulation routes, service corridors or commercial interiors where damage is likely, consider whether a more substantial metal-reinforced detail is warranted.

Bullnose corner bead

Bullnose bead replaces the sharp 90-degree arris with a rounded radius. It is used when the design calls for softer wall geometry, or where a rounded edge is preferred for comfort and reduced vulnerability at exposed corners. Common applications include healthcare, education, residential communal areas and interiors with a less rectilinear aesthetic.

A bullnose profile needs to be coordinated with the board installation and finishing system. The radius changes the amount of compound required and the way light falls across the corner. It should be treated as an intentional design detail, not substituted for a square bead late in the programme, as adjacent trims, skirtings and door details may need adjustment.

Flexible corner bead

Flexible bead is designed for curved walls, irregular radii and non-standard angles. Depending on the product construction, it may use a flexible plastic body, composite material or articulated sections that allow the profile to follow convex external curves.

This is the appropriate choice for feature bulkheads, curved partitions and bespoke joinery interfaces where a rigid bead would kink or lift. It should be fixed progressively along the curve to avoid flat spots. A template, consistent board framing and careful checking before jointing are essential, because compound will not correct an uneven radius.

Adjustable-angle bead

Not every external corner is 90 degrees. Adjustable-angle bead accommodates obtuse or acute angles, making it useful for faceted wall forms, angled returns and altered layouts in refurbishment work. It provides a more controlled finish than trying to force a standard rigid bead onto a non-square corner.

Check the angle range before procurement and test the profile against the built condition where tolerances are tight. On a long angled partition, even a small variation in framing can become obvious when a straight finishing profile is applied.

Choosing the right profile for the location

Material choice should follow the environment and the intended finish, not habit. A standard square metal bead is efficient for straight, high-traffic corners. Paper-faced metal bead is a strong choice where taped joints and paint-ready surface quality are central. PVC is useful where moisture resistance and easy handling matter, while flexible and adjustable-angle profiles solve geometry that conventional beads cannot follow.

Also consider board thickness and wing width. The bead must sit correctly over the plasterboard edge without leaving an excessive compound build-up. Wider wings can help feather the transition on uneven backgrounds, but they require more space and finishing material. Shorter wings may suit confined details, provided the system still gives adequate support.

For exposed architectural junctions, the bead may not be the right detail at all. A plasterboard edge meeting a glazing channel, shadow-gap trim, recessed skirting profile or aluminium angle often needs a purpose-designed trim rather than a concealed corner bead. These interfaces require compatible dimensions and a clear decision on which surface finishes first.

Installation details that protect the finish

External corner beads perform best when the plasterboard corner is properly formed. Boards should be securely fixed, edges aligned and framing stable before the bead is introduced. Trying to pull misaligned boards into position with screws, staples or compound can transfer stress into the finished corner.

Fixing method depends on the bead and finishing system. Mechanical fixings can be fast and reliable for suitable metal profiles, while jointing compound is commonly used to bed paper-faced and some PVC beads. Adhesives may also be appropriate where specified by the manufacturer. Whichever method is used, keep the nose straight and avoid over-fixing, which can create local distortion.

After fitting, inspect the corner from both directions. Check for a continuous line, full contact at the wings and a consistent relationship to adjacent reveals, skirtings and ceiling details. Apply compound in controlled coats, allowing each coat to dry before the next. Heavy application in one pass increases shrinkage and makes a crisp corner harder to retain.

Specify the corner, not just the bead

A corner bead is a small component, but it governs a highly visible part of the finished wall. Set out the required corner shape, substrate, finish system and exposure to impact before ordering. Where appearance is critical, request a trim sample and review the profile alongside the plasterboard, paint specification and neighbouring architectural details.

That small amount of coordination helps installers work faster and gives the completed partition the clean, durable edge the design intended.
