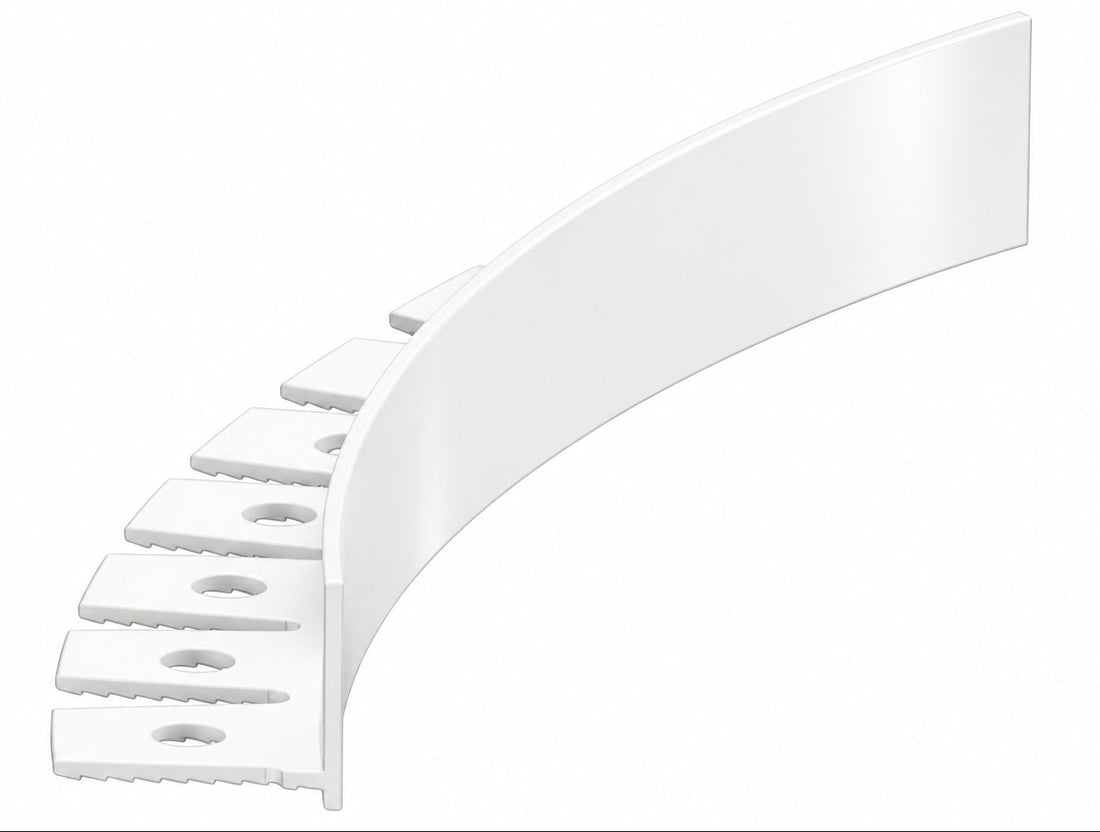

Flexible Plasterboard Edge Bead for Curved Walls

A curved plasterboard opening can look precise on the drawing and improvised on site. The difference is often the edge detail. Flexible plasterboard edge bead gives radiused reveals, arches and curved partition ends a controlled line while protecting the vulnerable gypsum board edge beneath the finish. Used correctly, it removes the uneven, hand-formed look that can make an otherwise well-built interior feel incomplete.

Unlike a standard rigid corner bead, a flexible bead is designed to follow a changing radius without buckling or forcing the board edge out of shape. It is a finishing component, not a correction for poor framing. The curve still needs to be set out accurately, the board must be securely fixed, and the bead must be selected for the intended coating system and exposure level.

Where flexible plasterboard edge bead earns its place

Flexible edge bead is most useful where a plasterboard edge cannot be finished in a straight run. Typical applications include curved wall returns, arched door openings, circular feature walls, window reveals, bulkheads and the outside edge of a radiused partition. It is also useful on refurbishment work, where existing openings rarely follow a perfectly repeatable radius.

The visible benefit is consistency. A correctly installed bead establishes the same edge position from one end of the curve to the other, so joint compound can be applied to a known line. It also creates a more durable arris than an exposed plasterboard edge, reducing damage from trolleys, furniture, cleaning equipment and regular foot traffic.

This matters particularly in hospitality, workplace and retail fit-outs. Curves tend to sit in prominent locations: reception features, corridor entrances, display zones and transition points between spaces. Those are exactly the areas where chipped board, wavering skim and uneven paint lines become noticeable.

Curved does not always mean flexible

Not every non-linear detail needs a flexible bead. A large, constant-radius curve may sometimes be formed with purpose-made rigid sections or a different architectural trim detail. For a sharp external angle, a conventional corner bead is usually the more economical and more impact-resistant choice.

Flexible bead is the practical option when the radius is tight, variable or difficult to divide into clean straight sections. It should be specified because the geometry requires it, rather than treated as a universal upgrade. The profile material, fixing method and finish all affect the final result.

Selecting the right flexible plasterboard edge bead

Start with the board thickness and the type of corner being finished. Most applications involve an external corner or return, where the bead wraps the exposed edge and provides a nose for the finishing coat. Check that the wings sit comfortably on the board face and that the bead nose delivers the reveal depth or edge definition required by the design.

Material choice is equally important. PVC flexible bead is widely used for curved drylining because it can follow radiused work easily and will not rust. It is well suited to standard internal environments and compound-finished plasterboard assemblies. Where a project calls for a more defined exposed metal edge, aluminium architectural trims may be the better fit, although these are generally selected for controlled straight runs or specifically engineered curved details rather than improvised bending on site.

The finish should support the wider interior scheme. A concealed bead intended for skimming is a construction detail, whereas an exposed edge profile becomes part of the visual language of the room. Black, white, raw aluminium and other architectural finishes need consistent alignment with shadow gaps, reveal trims, skirtings and glazing channels nearby. Mixing profile families without checking face widths and junctions can create awkward steps that are difficult to disguise later.

Match the bead to the finishing system

A flexible bead must be compatible with the specified jointing compound, plaster finish and paint build-up. Paper-faced or mesh-wing variations can improve compound adhesion, while perforated wings allow a suitable jointing material to key through the profile. The best choice depends on the installer’s normal system, the substrate condition and whether the work will receive a full skim or local joint treatment.

For wet or high-humidity areas, consider the full wall build-up rather than the bead alone. Moisture-resistant board, appropriate coatings and correctly detailed junctions matter more than simply changing one finishing accessory. If there is a risk of regular impact, an ordinary flexible PVC bead may not offer the same protection as a heavier-duty solution. This is where project location and use should drive the specification.

Installation starts before the bead is fixed

A bead can only follow the curve it is given. Before fixing, inspect the framing and board line from several viewpoints. A smooth curve should not contain flats, sudden changes in radius or proud screw heads. If the plasterboard has been forced around a radius beyond its capability, the problem needs correcting before finishing begins.

Cut the flexible bead slightly long where practical, then trim accurately after it has been positioned. Dry-fit it first and ensure the nose follows the intended line without tension. Pulling the bead tight can distort a gentle curve; leaving it loose can create ripples that show through the compound. The aim is even contact along both wings.

Fixing method depends on the bead design and the approved finishing system. Staples, nails, screws or jointing compound may be appropriate, but fasteners must not deform the nose or create local hollows in the wings. Space fixings consistently and use only enough to hold the profile in position. Over-fixing is a common cause of bumps that become visible after painting.

Once fixed, apply compound in controlled coats, feathering out evenly from both sides of the bead. Do not attempt to hide poor alignment with excessive material. Heavy build-up can shrink, crack or leave a soft-looking edge, especially under raking light. Allow each coat to dry properly, sand carefully and check the finished curve before decoration.

Common site issues and how to avoid them

The most frequent problem is treating flexible bead as if it will conceal an uneven board edge. It will not. It provides a guide and a protective nose, but the finished profile reflects the substrate beneath it. Accurate framing, correctly prepared plasterboard and a clean joint line are still essential.

Another issue is selecting a bead that bends easily but lacks sufficient control for the required radius. Very flexible products are useful on tight curves, yet they need careful fixing to maintain a fair line. Conversely, a stiffer profile may work well on broad radiuses but resist a tighter arch. A sample piece is worth testing against the actual template or formed board, not just judging by a nominal radius on a schedule.

Poor transitions are also easy to overlook. Where a curved bead meets a straight corner bead, reveal trim, shadow-gap profile or ceiling detail, establish the junction before installation. The termination should be deliberate, square and consistent with the surrounding finish. A cut end left exposed or a poorly filled meeting point will draw attention to what should be a refined architectural detail.

Detailing for a clean commercial finish

The best curved plasterboard work is rarely noticed as a separate feature. It supports the wider architecture: a reception wall reads as one continuous sweep, an arched opening frames the next space cleanly, and a curved partition meets its ceiling or floor detail without visual clutter.

Coordinate edge bead selection early where several finishing systems meet. A curved wall may terminate beside a frameless glass partition, a recessed skirting profile or a plasterboard reveal. Each component has its own face position and tolerance. Resolving those interfaces before board installation is quicker than reworking finished surfaces after a site measurement exposes a clash.

For contractors and procurement teams, consistency across the project is as valuable as the individual profile. Keeping compatible drylining trims and architectural finishing details within one coordinated package simplifies checking, ordering and replacement. Partitions Ltd can support this process with trim sample requests and product advice where a curve, finish or junction needs confirming before full procurement.

A flexible edge bead is a small component, but it carries a large visual responsibility. Specify it around the real radius, the finish system and the expected site conditions, then give the substrate and installation the same attention as the profile itself. That is how a curved plasterboard detail retains its line long after the decorators have left site.
