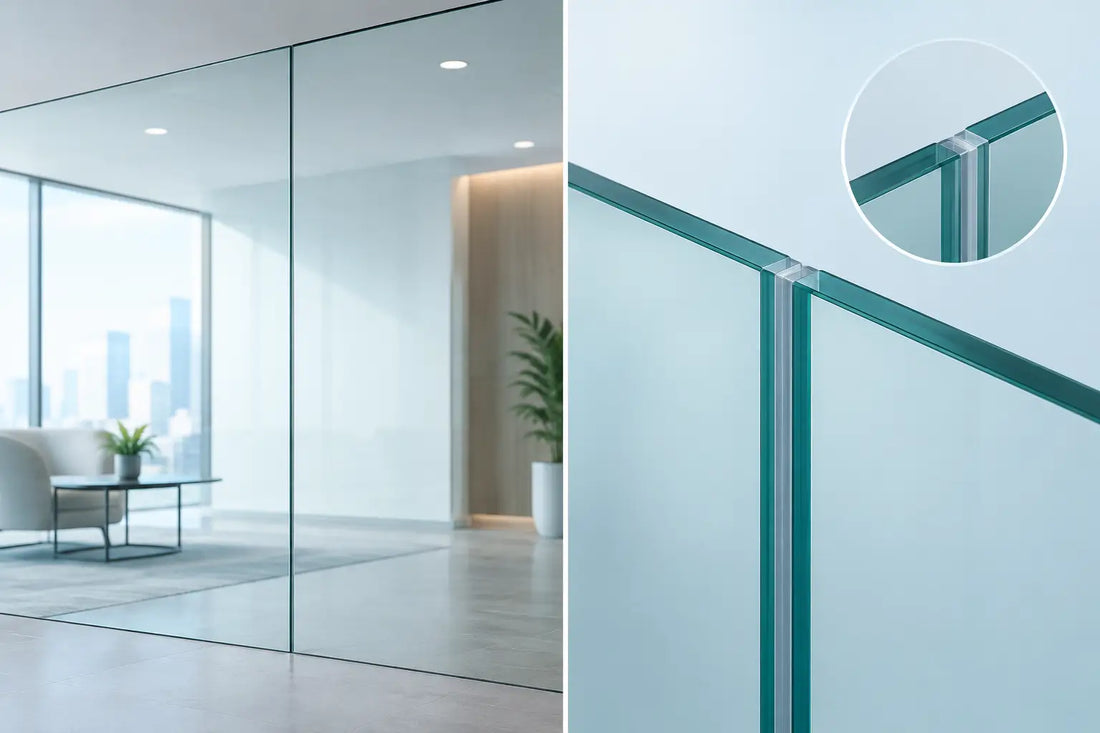

Glass-to-Glass Dry Joint Details for Frameless Walls

A glass-to-glass dry joint can make the difference between a frameless partition that looks deliberately minimal and one that exposes every inconsistency in the opening. Where two toughened glass panels meet, the joint has to control alignment, protect the glass edges and retain a fine, consistent visual line without relying on a broad silicone bead.

For workplace, hospitality, retail and high-end residential interiors, this detail is often specified where uninterrupted sightlines matter. It is a small component within the overall glazing assembly, but it affects the finished appearance, fitting sequence and tolerance strategy for the entire partition run.

What is a glass-to-glass dry joint?

A glass-to-glass dry joint is a mechanical joint system used between adjacent frameless glass panels. Rather than filling the gap with wet-applied sealant, it uses a purpose-designed dry gasket, clear connecting profile or interlocking insert to form a neat interface between the glass edges.

The exact construction varies by system. Some dry joints use transparent polymer profiles that sit over or between the glass edges. Others use compressible gasket sections designed for a defined joint width. In each case, the objective is similar: maintain a controlled separation between panels while producing a cleaner, more repeatable finish than a hand-applied sealant joint.

This is not simply a cosmetic choice. Glass should never be installed edge-to-edge without an appropriate allowance. A dry joint provides separation to help prevent direct glass contact, accommodate permitted manufacturing and site tolerances, and reduce the risk of chipped edges during fitting or in service.

Why dry joints suit contemporary glazed partitions

A silicone joint can be practical, economical and suitable for many glazed screens. However, its final quality depends heavily on site conditions and workmanship. Bead width, colour consistency, adhesion and the cleanliness of the glass all influence the result. On a highly visible run of frameless panels, uneven sealant lines are difficult to disguise.

A glass-to-glass dry joint introduces a pre-defined geometry. Installers can work towards a consistent gap, and the joint profile establishes a more uniform line across the elevation. This is particularly valuable in reception screens, meeting rooms and internal shopfronts, where the partition is viewed at close range and from multiple angles.

Dry joint systems also avoid cure time. Once the panels are correctly located in their glazing channels and the joint insert is fitted, the partition can generally progress without waiting for sealant to set. That can assist sequencing on fast-track fit-outs, although it does not remove the need for accurate setting out and careful handling.

The trade-off is that dry joints are not interchangeable with every glazing application. If a partition must deliver a specific acoustic rating, smoke control, fire performance or water resistance, the full tested system must be assessed. A visually discreet dry joint alone does not create those performance characteristics.

Selecting the right joint detail

The first question is not which profile looks best. It is what the partition is required to do. Internal non-rated office divisions, for example, may prioritise clean alignment and visual transparency. A consulting-room enclosure may require stronger acoustic control. A shower screen or other wet-area application introduces a different demand again, where water management and compatible sealing details become critical.

Match the joint to the glass thickness

Dry joint profiles are manufactured for particular glass thicknesses and sometimes for a restricted tolerance range. Toughened glass, laminated glass and acoustic laminated glass can have different nominal build-ups, so the selected profile must suit the actual panel specification rather than an assumed thickness.

Do not rely on nominal dimensions alone. Confirm the glass thickness, edge finish, panel height and the manufacturer’s stated clearance requirements before ordering. A joint that is too tight can make fitting difficult and place unwanted stress at the glass edge. One that is too loose can look inconsistent, move under service loads or fail to provide the intended cover.

Consider the required sightline

The visible joint width should be coordinated with the wider partition design. This includes the face width of the glazing U channel, the gap at the head, the base detail and the interface with doors. A narrow vertical dry joint can look out of place if the surrounding channels are oversized, while an extremely fine joint can exaggerate minor panel misalignment.

Clear profiles are often selected where the aim is for the joint to recede. They still catch light, however, especially against dark finishes or in strongly lit corridors. Review a sample against the specified glass and interior lighting where the visual standard is high. A sample request is often more useful than judging a transparent section from a product image.

Coordinate doors and structural movement

Fixed glazed panels beside a frameless glass door require more than a neat vertical joint. Door leaves introduce repeated movement, loading at patch fittings and stricter alignment expectations. The side panel, pivot position, lock keep and pull handle arrangement must be coordinated as a complete assembly.

Likewise, partitions beneath soffits need to account for deflection. A dry joint between panels cannot compensate for movement in the building structure if the head channel or deflection detail has not been designed to allow it. The glazing contractor should confirm the movement allowance, channel depth and packing arrangement before the glass is manufactured.

Installation principles that protect the finish

A dry joint rewards accurate preparation. The floor and head channels should be installed true, plumb and in line before glass arrives on site. If the channels wander, fitters may be forced to vary panel gaps to make the elevation work, defeating the purpose of a controlled joint detail.

Glass panels should be checked for correct labels, dimensions and edge condition before lifting. Even a small edge chip can become significant at a tight joint, both visually and mechanically. Use suitable packers in the base channel so each panel is supported correctly and does not bear directly on aluminium or adjacent glass.

Set the first panel plumb, then establish the required joint gap using the system’s recommended spacers or setting method. Fit the adjoining panel without forcing it into position. The joint profile should be installed in accordance with its intended direction and engagement method, with clean hands and clean glass to avoid trapping debris along the visible line.

Avoid treating the profile as a correction for poor setting out. A dry joint may conceal a limited gap, but it cannot straighten bowed glass, compensate for an out-of-plumb wall or correct a channel installed at the wrong centre line. Where the opening is outside tolerance, resolve the underlying issue before completing the glazing.

Common specification mistakes

One frequent mistake is specifying a dry joint as a stand-alone item rather than part of a compatible glazing system. The glass, U channels, setting blocks, packers, head condition and door hardware all influence whether the finished partition performs and looks as intended.

Another is overlooking cleaning and maintenance. Transparent joint materials can reveal adhesive residue, plaster dust or fingerprints more readily than expected. Protect the panels during nearby drylining, painting and flooring works, then carry out final cleaning with products approved for both the glass and joint material. Abrasive pads and aggressive solvents can mark surfaces or affect certain polymers.

It is also unwise to assume that a dry joint will meet acoustic or fire requirements because the glass itself is specified for those applications. Ratings are achieved by tested assemblies, including the glass type, perimeter containment, seals, frame configuration and installation method. Where a rating is required, obtain confirmation for the complete partition construction.

A detail worth resolving before glass is ordered

Frameless glazing is unforgiving because its quality is judged in millimetres. The glass-to-glass dry joint should therefore be selected early, while panel sizes, door positions, channel details and allowable movement can still be coordinated. Confirm the joint width, glass thickness, profile finish and intended performance before releasing the glass schedule.

When the surrounding construction is set out accurately, the dry joint does what it should: it protects the glass while leaving the architecture clear to see.
