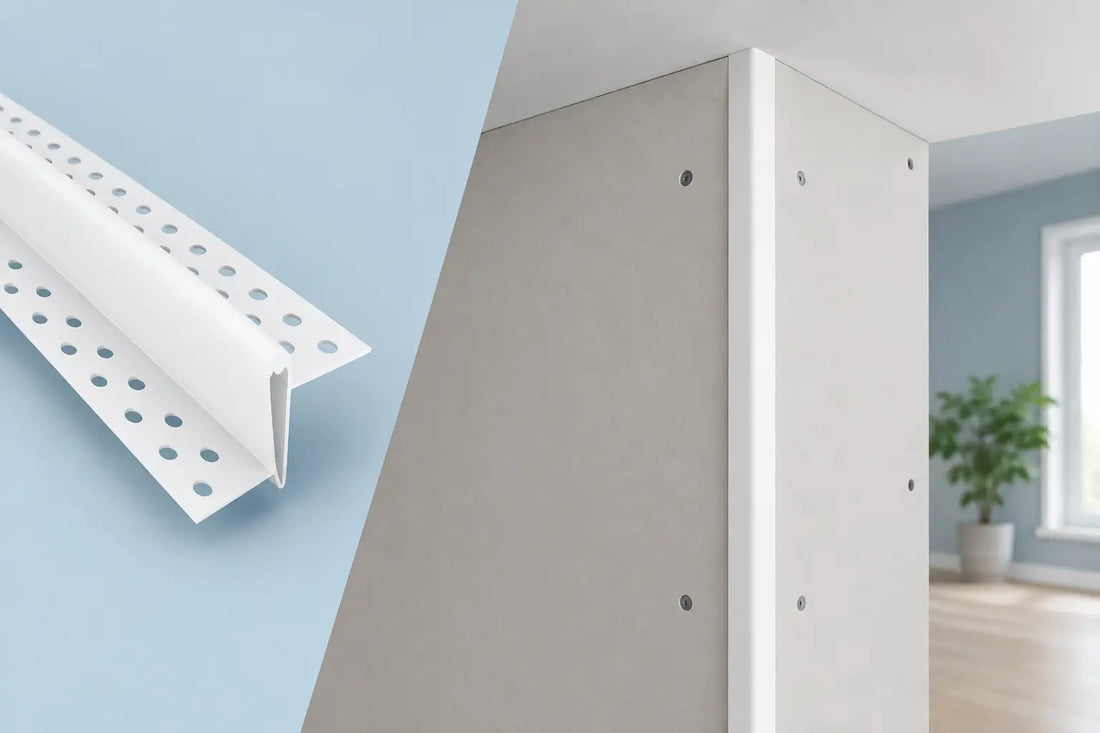

Plasterboard End Cap Trim for Clean Edges

An exposed plasterboard return can make or break a minimal interior detail. Where gypsum board terminates at a window reveal, bulkhead, partition end, opening or service enclosure, plasterboard end cap trim provides the controlled finish that jointing compound alone cannot reliably achieve. It protects the vulnerable board edge while creating a straight, repeatable line that remains sharp after decoration and handover.

For commercial fit-out teams, the profile is a small component with a visible result. Selecting the correct trim depth, material and finish at the design stage avoids improvised site solutions, uneven corners and inconsistent details across a project.

What is plasterboard end cap trim?

Plasterboard end cap trim is an extruded profile designed to cover and finish the exposed edge of a gypsum plasterboard panel. Unlike a conventional external corner bead, which reinforces two boards meeting at an outside corner, an end cap wraps the termination of a single board edge. The finished result is a defined aluminium line or a discreet protective edge, depending on the profile selected.

The trim generally incorporates a channel sized to receive the plasterboard thickness. Once fixed, it forms a durable edge around the board face and return. This makes it particularly useful where the plasterboard edge is intentionally visible rather than plastered into an adjacent wall, frame or ceiling.

Aluminium is a common choice for architectural end caps because it offers accurate dimensions, straightness and a clean surface finish. It is also well suited to areas subject to regular contact, such as circulation routes, retail displays, reception features and workplace partitions. Painted, anodised or raw aluminium finishes allow the detail to either blend into the surrounding scheme or read as a deliberate shadow-line-like accent.

Where end cap trims add value

The most successful use of an end cap trim is where the construction detail needs to be both exposed and dependable. At the end of a freestanding stud partition, for example, the profile gives the board a deliberate termination rather than the appearance of an unfinished drylining edge. It can also provide a crisp finish to ceiling rafts, bulkhead returns and media walls.

Window and door reveals are another common application. When a plasterboard lining returns into an opening, the trim protects the edge from knocks during construction and everyday use. In hospitality and retail schemes, this can be preferable to a painted square edge, which is more likely to chip or lose definition over time.

End cap profiles are also useful beside glazed partitions and frameless glass doors. These interfaces demand close dimensional control: the plasterboard finish must align correctly with glazing channels, frames, patch fittings or door clearances. A specified profile creates a known finished edge, helping installers coordinate drylining and glazing work without relying on variable skim-coat thicknesses.

The visual effect depends on the finish and proportion. A white-coated trim can recede into a light wall finish, while black aluminium can frame an opening or complement black glazing hardware. Mill-finish aluminium has a more industrial architectural character, but it should be selected with care where surface consistency or a refined decorative appearance is required.

Selecting the right plasterboard end cap trim

Board thickness is the first decision. Standard gypsum plasterboard, fire-rated board, acoustic board and multi-layer assemblies can all produce different finished thicknesses. The profile channel must suit the actual board being installed, not simply the nominal specification. A tight channel can damage the board face or prevent full engagement; an oversized channel can leave movement or an untidy gap.

Consider whether the trim is intended to sit flush with the board face, project slightly as a feature, or form part of a wider reveal detail. The profile depth and visible flange determine how strongly it reads in the completed interior. On a high-end residential or hotel project, a slim exposed line may be the preferred detail. In a busy back-of-house area, a wider, more protective edge may offer better long-term performance.

Finish selection should be coordinated early with adjacent materials. A black end cap beside black-framed glazing and dark ironmongery can create a coherent language across the fit-out. White profiles work well where the aim is a quiet, low-contrast finish. Raw aluminium can be appropriate in contemporary commercial spaces, although installers should protect it from plaster, paint and adhesive contamination during the works.

It is equally important to assess the location. An end cap trim protects an edge, but it is not a substitute for an impact-rated wall system where trolleys, luggage, equipment or public traffic are likely to strike the partition repeatedly. In those locations, the wall build-up, board type and protection strategy should be considered together.

Coordinate the finished dimensions

A trim should be specified from finished faces, not just framing positions. Allow for board thickness, adhesive or fixing method, joint treatment, paint build-up and any adjacent tile, timber, glazing channel or skirting detail. This is especially relevant at door openings, where a few millimetres can affect visual alignment or clearances for door hardware.

Where a profile meets a shadow gap, recessed skirting or ceiling transition, produce a coordinated section detail before installation starts. Architectural trims perform best when they are treated as part of the system, rather than as a late-stage solution for covering an exposed edge.

Installation principles for a clean result

Good installation starts with a straight, well-supported plasterboard edge. The board should be accurately cut, securely fixed and free from crushed paper or loose gypsum at the termination. A profile cannot correct a wavy board edge or an out-of-plumb stud line without compromising the finished appearance.

Cut aluminium profiles with suitable equipment to achieve a clean, burr-free end. Mitred joints may be appropriate where the trim turns around a return or opening, but they need accurate cutting and controlled assembly. A poor mitre is highly visible once painted walls and directional lighting draw attention to the edge.

Follow the profile manufacturer’s recommended fixing approach. Depending on the trim and substrate, this may involve adhesive, screws, staples or a combination of methods. Fixings should not distort the profile, and adhesive should be applied consistently to avoid voids or localised movement. Keep the visible face clean during installation, particularly with black, anodised or raw aluminium finishes.

Before closing up the area, check line, level and consistency at eye height. Long runs beside glazing, joinery or a ceiling shadow gap should be viewed as a whole. A trim that is technically fitted but visually misaligned will still undermine an otherwise precise interior.

Common specification and site issues

One recurring issue is using an edge bead where an end cap is required. Both products finish plasterboard, but they solve different conditions. An edge bead is generally designed to be jointed and concealed beneath plaster or compound. An end cap is intended to form the exposed termination itself. Substituting one for the other can create unnecessary finishing work and an inferior visual result.

Another issue is ordering trim before confirming the board build-up. A 12.5 mm board detail may become a 15 mm fire-rated board or a double-layer acoustic partition during coordination. Recheck trim sizes once wall types are final, particularly on projects with several partition specifications.

Finish damage is also avoidable. Aluminium profiles should arrive on site at the right stage, be stored dry and protected from other trades. Wet plaster, aggressive cleaners and careless paint preparation can mark exposed surfaces. Agree responsibility for protection and final cleaning before the drylining package is completed.

A detail worth resolving early

Plasterboard end cap trim is most effective when it is specified as an architectural finish, not treated as a last-minute accessory. It gives drylining contractors a clear installation detail, supports consistent procurement and delivers the crisp edge that contemporary interiors depend on.

For schemes combining gypsum board returns, shadow gaps, recessed skirtings or frameless glass partitions, request a trim sample and review it against the actual board and finish schedule. Seeing the profile in context is often the quickest way to confirm whether the line should disappear, contrast or become a defining part of the interior.
