Recessed Skirting Profile Installation Guide

A recessed skirting detail only looks effortless when the build-up has been controlled before the first board is fixed. Recessed skirting profile installation is not a finishing task added after drylining: it is a coordinated wall, floor and plasterboard detail. Get the datum, board position or floor level wrong, and the intended clean shadow line can become uneven, blocked by flooring, or vulnerable to impact.

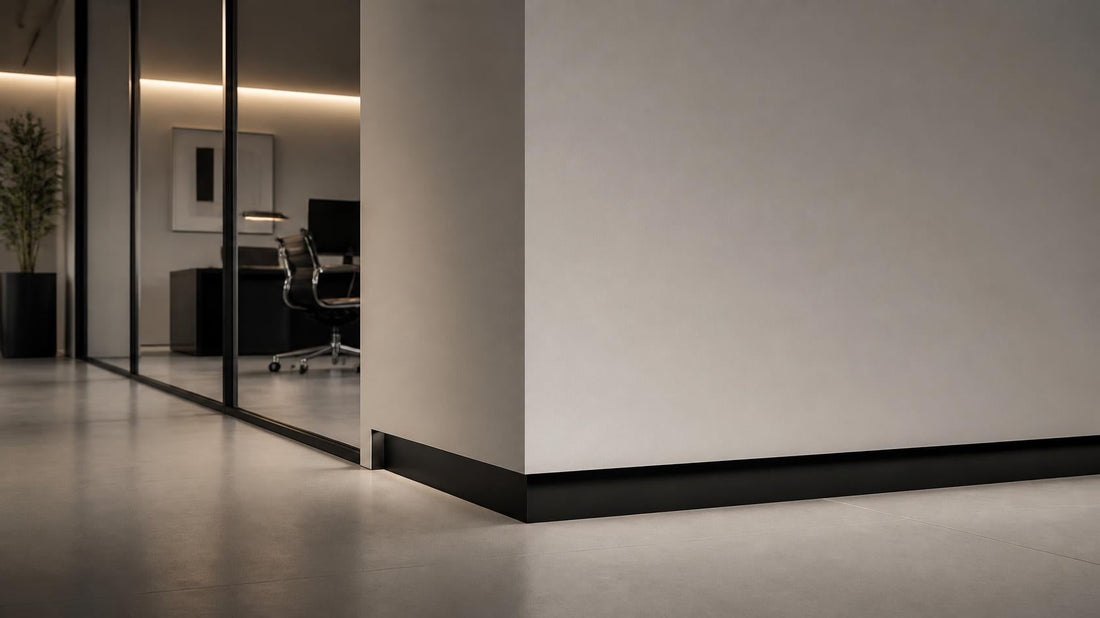

For commercial interiors, hospitality schemes and high-specification residential work, the profile creates a deliberate recess at the base of the wall. It removes the visual projection of a conventional skirting board while retaining a crisp, protectable edge between wall and floor. The result depends as much on sequencing and tolerance management as on the aluminium profile itself.

Choose the recessed skirting detail before framing

The term recessed skirting is used for several different details. Some profiles create a narrow shadow gap with the plasterboard finishing flush above it. Others form a deeper channel intended to accept a separate skirting insert, LED element or flush floor finish. A true floating-wall appearance may also use a profile that sets the gypsum plasterboard back from the floor without a visible base trim.

These systems are not interchangeable. Confirm whether the specified profile is designed for a particular plasterboard thickness, whether it is fixed directly to the stud frame or a solid substrate, and whether it needs an additional backing member. The profile depth must suit the intended recess, but it also has to allow for jointing compound, skim finish where applicable, paint and the final floor construction.

This is especially relevant where drawings show a nominal 10 mm or 15 mm shadow gap. The visible dimension is not simply the aluminium extrusion depth. It is the finished dimension after board, decoration, adhesive, tile, carpet, timber or vinyl have all been installed. Establish the finished floor level first, then set the profile datum from that level rather than from the structural slab.

Set-out for recessed skirting profile installation

Start with a level survey of the floor perimeter. Slabs can vary significantly, particularly in refurbishment work, and a profile installed at one fixed height from an uneven slab will deliver a visibly inconsistent reveal. Mark a continuous control line using the agreed finished floor level and use this line to establish the bottom edge or reference point of the profile.

Coordinate the detail with door frames, glazed partitions, wall linings and thresholds before installation begins. A recessed skirting channel that runs into a frameless glass door jamb needs a considered termination; leaving the profile to stop wherever the dryliner reaches the opening rarely produces a satisfactory result. Likewise, check whether concealed door frames have their own base details and whether the shadow gap should continue, return or terminate with an end cap.

At external corners, decide whether mitred joints, pre-formed corner pieces or square butt joints are appropriate for the selected system. Mitres can provide a fine visual result but demand accurate cutting and protection throughout the remaining works. On high-traffic projects, purpose-made accessories or carefully finished butt joints may be more practical. Internal corners should also be planned rather than forced: a small discrepancy at the corner can telegraph down the full length of a shadow line.

Prepare a straight, adequately supported substrate

Recessed skirting profiles need continuous, stable support. On metal stud partitions, provide noggings, tracks or suitable backing at the fixing line as required by the profile design. Do not rely on the edge of gypsum plasterboard to keep the extrusion straight. On masonry or concrete, remove high spots and correct major irregularities before fixing; packing isolated points behind a long aluminium section can introduce waves and make the board face difficult to align.

Check wall plumb at the same time. A recessed profile can be installed perfectly level but still look incorrect if the wall above bows or twists. Where tolerances are outside the acceptable range, address the framing or substrate rather than attempting to disguise the issue with additional jointing compound. Shadow details are deliberately unforgiving because they make changes in line and depth easy to see.

Aluminium profiles should be handled as finished architectural components. Keep visible faces free of adhesive, wet plaster and metal swarf, and avoid dragging lengths across abrasive surfaces. If the profile includes a protective film, leave it in place until heavy work and painting are complete, provided this does not interfere with joint treatment or create residue through prolonged exposure.

Fix the profile without losing the line

Dry-fit long runs first. This identifies conflicts around openings and confirms joint positions before fasteners are installed. Where full-length pieces are impractical, place joints in less conspicuous locations where possible and ensure adjoining sections are straight, level and properly supported. A joint that is fractionally proud will remain visible after decoration.

Use the fixing method specified for the profile and substrate. Screws are commonly used into metal or timber backing, while suitable mechanical fixings may be needed for masonry. Adhesive can be appropriate only where the system permits it and the substrate is clean, sound and sufficiently flat. It should not replace mechanical restraint where the profile must control the plasterboard edge or resist repeated cleaning and impact.

Fix progressively along the length, checking level and straightness as you go. Over-tightening can distort lighter extrusions, while widely spaced fixings can allow the profile to move as boards are installed. The aim is a rigid, continuous reference edge that will not change position when the drylining crew tapes, fills and sands the wall.

Integrate the gypsum plasterboard correctly

The plasterboard installation is where the recessed detail becomes visually convincing. Cut boards accurately so their bottom edge sits within the profile's intended receiving zone or aligns with its finishing flange. A rough board edge, excessive gap or forced board can cause cracking, a weak joint or a shadow line that varies along the wall.

Maintain the specified clearance above the floor. Board should not bridge into a floor finish or rest on a potentially damp slab. The profile is often used to create that controlled separation, but the dryliner still needs to avoid filling the recess with offcuts, joint compound or plaster debris.

Where the profile has a perforated or mesh finishing wing, bed it fully into the jointing material and feather the finish over the adjoining board face. Keep compound out of the visible channel. If the design uses a crisp exposed aluminium arris, masking it before finishing can reduce clean-up and protect the coating. Do not sand aggressively against the extrusion, particularly on black, white or anodised finishes where scratches are difficult to disguise.

The chosen wall finish matters. Paint provides the clearest reading of a fine shadow gap, while thick textured coatings can soften the intended edge. Tile, timber panelling or decorative wall linings require a different set-out because their finished thickness may project beyond the profile face. In those cases, use a profile designed for the cladding build-up rather than adapting a standard plasterboard detail on site.

Coordinate flooring and final protection

Flooring should meet the recessed skirting detail as drawn, not be pushed indiscriminately into it. Tile and stone installations need consistent perimeter movement provision, particularly across large areas or where underfloor heating is present. Timber and resilient finishes also need their specified expansion allowance. The visual recess can conceal a carefully controlled edge, but it must not be treated as a void to be packed solid with adhesive, grout or sealant.

Whether a sealant joint is required depends on the floor type, acoustic strategy, cleaning regime and manufacturer guidance. In a dry office setting, an open shadow gap may be entirely appropriate. In wet areas, healthcare environments or heavily cleaned hospitality spaces, a compatible sealed detail may be necessary. That decision should be made at specification stage, as sealant colour and joint geometry affect the appearance of the recess.

Protect the installed profile during screeding, flooring and subsequent fit-out. Aluminium edges are particularly exposed to damage from trolleys, ladders and floor-laying tools. A clean handover often comes down to simple site discipline: cover finished details, remove protection carefully, then inspect every run under raking light before practical completion.

Common faults and how to avoid them

The most frequent problem is setting the profile from the slab before the floor finish has been confirmed. The result is either a recess partly covered by the floor or an oversized gap that looks accidental. A coordinated finished-floor-level datum prevents both outcomes.

Another common fault is treating the detail as decorative trim rather than part of the drylining system. If there is inadequate backing, incorrect board thickness or no allowance for joint finish, the profile cannot deliver a straight, durable edge. Similarly, filling the visible channel during plastering removes the very shadow line the profile was selected to create.

Finally, do not overlook interfaces. Door jambs, partition bases, return walls and changes in floor finish require planned terminations. Ordering suitable end caps and corner accessories where available is generally quicker and more consistent than improvising a solution after decoration.

A recessed skirting detail rewards disciplined set-out: specify the profile around the complete wall and floor build-up, install it as a fixed drylining reference, and protect the finished edge until the last trade leaves site.
