Shadow Gap Ceiling Detail: Specify and Fit It

A shadow gap ceiling detail is only as clean as the setting-out behind it. The finished void may be a narrow black line at the wall head, but it depends on straight framing, consistent board positions and a profile that is designed for the planned plasterboard build-up. Get those elements right and the ceiling appears to float just clear of the wall. Get them wrong and the detail exposes every deviation.

For commercial fit-out, hospitality and high-end residential interiors, this wall-to-ceiling transition replaces the visual weight of a conventional cornice, caulked junction or surface-fixed trim. It creates a deliberate recess that separates planes, accommodates controlled movement and gives lighting, joinery and glazing lines a more considered edge.

What a shadow gap ceiling detail does

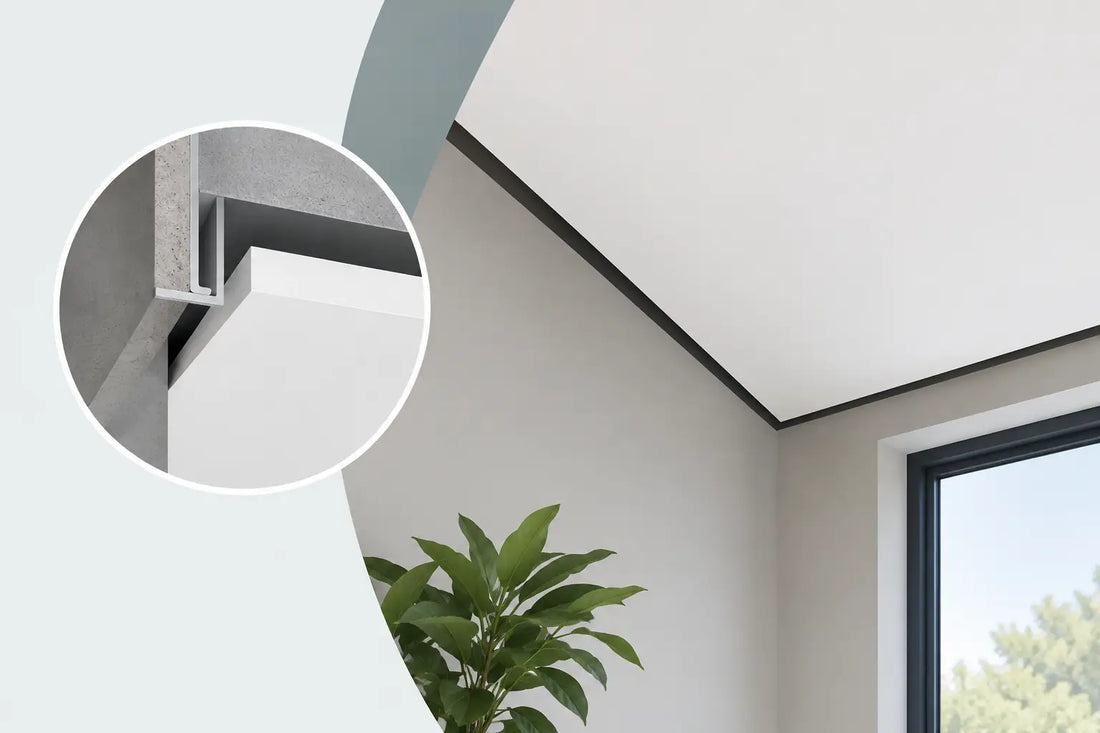

A shadow gap is a recessed channel formed where the ceiling lining meets the wall lining. Rather than bringing the two plasterboard surfaces tightly together, an aluminium profile establishes a precise, continuous gap. The dark recess creates contrast and makes the ceiling plane visually distinct.

The profile is not simply decorative. It provides a straight, durable termination for the gypsum plasterboard edge, reducing the risk of fragile plaster arrises at a highly visible junction. Depending on the system, it can also define the ceiling datum while allowing the wall board or plaster finish to terminate independently beneath it.

This distinction matters on projects where finishes meet at different stages. A suspended plasterboard ceiling may be installed before wall drylining is complete, or a finished wall may meet a new ceiling during refurbishment. The selected detail must suit the construction sequence, not just the intended appearance.

Choose the profile around the build-up

The visible width of a shadow gap is usually the first design decision, but it should not be the only one. A narrow reveal can look refined in a small office or private residence, while a wider recess may read better across a large lobby or retail ceiling. In either case, the profile depth, board thickness and framing position need to work together.

Board thickness and return geometry

Profiles are generally formed to receive a specific plasterboard thickness. Using a trim intended for one board size with another can leave the board proud, recessed or without sufficient support at the edge. Confirm the board thickness before ordering, including whether the ceiling uses a single layer, a fire-rated build-up or acoustic board.

Also establish which surface returns into the reveal. In many details, the ceiling board enters the profile and the wall finish terminates below it. In others, the wall board is captured or finished to a separate leg. This changes both the installation order and the amount of tolerance available at the wall head.

Ceiling system and substrate

A shadow gap profile needs a stable fixing line. On a metal suspended ceiling, it is normally fixed back to perimeter framing, noggins or a suitably designed carrier arrangement. On a direct-fixed system, the substrate must be flat enough to maintain the intended reveal. Fixing an aluminium profile to an uneven wall without packing or adjustment will reproduce the irregularity along the entire ceiling edge.

Concrete soffits, steelwork, timber framing and existing masonry all require different fixing methods. Select appropriate mechanical fixings and spacing for the substrate and profile design. Adhesive alone is rarely the right answer for a long, exposed ceiling termination unless the profile manufacturer specifically permits it.

Finish and visual intent

Raw aluminium is often appropriate where the trim will be fully finished into the drylining system. Pre-finished black profiles create a strong, crisp shadow line and can reduce the need for painting inside the recess. White profiles may suit light interiors where the recess is intended to be quieter, although they will not deliver the same visual depth as a dark reveal.

The decision depends on the design intent and maintenance expectations. A black gap makes slight inconsistencies more visible if setting-out is poor, but it gives the strongest architectural result when the lines are true. A painted recess can be adjusted on site, but paint build-up and poor masking can soften the edge the profile was selected to create.

Setting out before fixing

The ceiling perimeter should be set from a consistent datum, not from a wall that may be out of plumb. Laser levels and reference lines are essential, particularly where the shadow gap continues through multiple rooms, around glazed partitions or into joinery bulkheads.

Check the ceiling layout against door heads, glazing channels, curtain pockets and linear lighting before the first length is installed. A gap that drifts by even a few millimetres can be conspicuous beside a frameless glass partition or a full-height door frame. Establish where profiles start and stop, how corners are resolved, and whether a continuous reveal is needed at changes in ceiling level.

Allow for the actual finished wall position, not merely the stud line. Wall boards, skim coats, tile backers and decorative panels can all alter the face dimension. On refurbishment work, survey existing walls carefully. It may be necessary to use packing, adjustable framing or a slightly wider reveal to absorb realistic site tolerances without compromising the visual line.

Installation sequence for a crisp reveal

Fix the profile straight and firmly, checking it repeatedly rather than trying to correct alignment once boards are in place. Where profile lengths meet, keep joints tight, level and supported. A stepped butt joint will show as a break in the shadow line, especially under side lighting.

Ceiling boards should be cut accurately and seated as the profile design requires. Do not force a bowed board into the trim, as this can distort the aluminium or open the gap elsewhere. Maintain the recommended fixing centres close to the board edge while avoiding screws that may deform the profile or break out into the reveal.

Jointing compound should finish the plasterboard face without bridging the recess. The purpose of the profile is to preserve a clean separation, so excess compound, tape or caulk must not fill the void. Protect exposed finished profiles during taping, sanding and painting. Scratched aluminium, paint bleed and compound residue are difficult to disguise once the ceiling is complete.

Corners deserve particular attention. Mitred corners can provide a continuous visual return, but they demand accurate cutting and stable support. A butt-jointed corner may be more practical in some construction sequences, provided the joint line is planned and remains discreet. For long runs, consider thermal movement and the profile supplier's guidance on expansion joints, especially in areas with substantial glazing or changing temperatures.

Common specification errors

The most frequent failure is treating the shadow gap as a last-minute trim. By the time ceiling framing, wall boards and services are installed, there may be no room to place the profile correctly. The result is often an improvised gap with unsupported board edges, inconsistent width or excessive sealant.

Another issue is specifying the reveal without considering performance requirements. Fire-rated, acoustic and smoke-control partitions may need tested perimeter details. A visual gap cannot override the required continuity of the wall or ceiling system. Coordinate the shadow-gap design with the relevant partition, ceiling and fire-stopping requirements before it reaches site.

Services can create further complications. Sprinkler heads, access panels, diffusers and lighting positions should sit comfortably within the ceiling composition rather than crowding the perimeter line. If concealed LED lighting is planned near the reveal, confirm the heat management, driver access and serviceability strategy. A shadow gap can enhance indirect light, but it is not automatically a lighting recess.

Finally, avoid assuming that all walls will accept the same detail. A plasterboard partition, concrete wall, glazed screen and timber feature wall each present different fixing and finishing conditions. A coordinated family of wall-to-ceiling transition profiles can maintain a consistent visual language while allowing the correct construction method at each interface.

Where the detail earns its value

A well-specified shadow gap ceiling detail is particularly effective where clean vertical lines already matter: frameless glass offices, recessed skirting schemes, flush doors, feature wall panels and minimalist reception spaces. It removes the need for a decorative ceiling moulding while giving the junction a deliberate, engineered finish.

For contractors, the value is equally practical. A purpose-made aluminium profile gives the dryliner a defined edge to work to, improves repeatability across rooms and reduces reliance on hand-formed plaster lines. For designers and procurement teams, selecting compatible profiles early helps prevent small junction decisions becoming site delays.

The best result is not the widest or darkest reveal. It is the one that matches the board build-up, tolerances, performance requirements and surrounding details from the outset. Requesting a trim sample and checking the intended assembly before final specification is a small step that protects the line everyone will notice when the project is finished.
