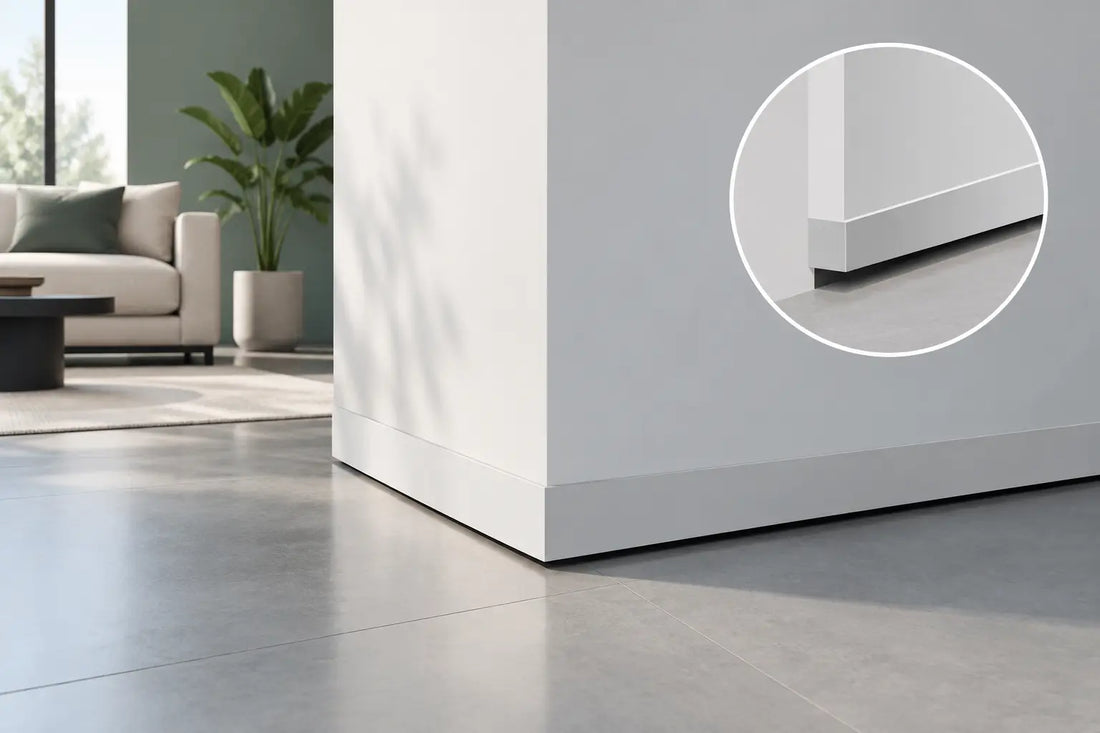

Shadow Gap Skirting for Clean Wall Details

Shadow gap skirting creates the deliberate dark line where a finished wall appears to float above the floor. Rather than applying a conventional skirting board over the wall face, the detail uses a recessed aluminium profile to form a consistent reveal. It is a small construction detail with a significant effect on the perceived quality of a corridor, hotel room, office fit-out or high-end residential interior.

The result depends less on the visible gap than on the wall build-up behind it. A well-specified profile protects the plasterboard edge, sets a reliable finishing datum and accommodates the flooring sequence. A poorly coordinated one can leave uneven reveals, cracked finishes or a profile that disappears beneath the floor covering.

What shadow gap skirting does

A shadow gap skirting profile is installed at the base of a drylining or plasterboard wall before boarding and finishing. Its return creates a recess between the wall face and the floor, replacing the projection normally associated with timber, MDF or PVC skirting. The recess reads as a shadow line, while the aluminium profile provides a straight, durable edge for the board and finish.

This approach suits interiors where flush planes and reduced visual clutter are part of the design intent. It also avoids the common issue of conventional skirting collecting dust along its upper edge or being damaged by cleaning equipment. That does not make it the right choice for every project. A surface-mounted skirting board remains simpler to replace, can conceal greater floor-level variation and may offer better protection in heavily trafficked areas.

The specification should therefore start with performance as well as appearance. Consider the expected wall abuse, cleaning regime, floor finish, wall lining type and whether the detail must incorporate services or low-level lighting. In commercial settings, the cleanest detail is useful only if it remains clean and intact after handover.

Select the profile around the finished floor level

The most critical dimension is not simply the nominal height of the aluminium profile. It is the relationship between the profile, the finished floor level and the completed wall face. Shadow gap skirting is often installed while the structural slab is still exposed, long before carpet, timber, vinyl, tile or resin flooring is complete. The profile must be positioned from a confirmed floor datum, not an assumed one.

A recessed skirting detail generally needs enough clearance to retain a visible shadow line once the floor covering is laid. If the floor finish rises too high, the recess becomes narrow or closes altogether. If it is set too low, the gap can appear excessive and expose an unfinished floor edge. Tile and stone installations also need allowance for adhesive beds, while carpet requires a neatly controlled termination to avoid fibres entering the reveal.

Profile depth matters as much as reveal height. The depth must suit the plasterboard thickness and intended finish build-up. A profile designed for one board thickness can create an awkward step or weak finishing edge when used with another. For walls receiving skim plaster, decorative plaster or multiple paint coats, allow for the full face build-up so the finished wall aligns correctly with the profile edge.

Raw aluminium, black and white finishes each create a different visual outcome. Black provides the strongest shadow effect and can make slight irregularities less noticeable within the recess. White softens the detail against pale walls, although it requires careful protection during finishing. Mill-finish aluminium is often selected where a restrained metallic edge is acceptable, but it should be specified with the rest of the interior palette rather than treated as a default.

Coordinate the wall build-up before installation

Shadow gap skirting works best when it is included in the partition and drylining package from the outset. Installing it as an afterthought usually means compromising the board line, floor edge or both. The installer needs a clear section showing slab condition, track position, board thickness, profile location, finished floor level and wall finish.

On metal stud partitions, the base track and the profile must be coordinated so the board can run continuously into the finishing leg without distortion. On independent linings, furring channels, adhesive dabs or service voids can alter the wall position. The visible face line of the finished board is the controlling reference, not the face of the structural wall behind it.

Corners deserve the same attention. External returns, internal corners, door jambs and junctions with glazed partitions all need a defined termination strategy. Mitred aluminium corners can produce a refined result where the geometry is accurate, while purpose-designed end caps or termination pieces may be more forgiving and more durable in active circulation areas. Do not leave exposed cut ends at door openings unless the specified system is intended to receive them.

The detail should also be checked against door hardware and access requirements. A frameless glass door, for example, may sit within a minimalist partition arrangement where a continuous shadow line reinforces the design. Yet floor stops, patch fittings or threshold conditions may interrupt that line. Resolving these points on drawings is faster and cleaner than altering finished profiles on site.

Installation quality is visible in the finished reveal

Aluminium profiles cannot correct an uneven substrate on their own. The fixing line must be level, straight and adequately supported along its length. Any wave in the profile becomes visible once the floor is down and the wall is painted, particularly where low-angle lighting runs along a corridor.

Installers should set out from established benchmarks, checking the slab for local highs and lows before fixing. Where the substrate varies beyond the profile’s practical tolerance, the solution may be local levelling, a revised floor build-up or a change to the wall datum. Forcing a straight profile over an irregular slab risks stress, loose fixings and inconsistent reveals.

Fix the profile at suitable centres for the substrate and system, maintaining alignment at joints. Profile lengths should meet cleanly, with joints placed where they are least conspicuous and where movement is unlikely to cause the finish to crack. Cuts should be square, burr-free and protected from plaster, jointing compound and aggressive cleaning materials.

Once the profile is secure, plasterboard should be cut accurately and seated without pushing the aluminium out of line. The jointing process is equally important. Compound must feather into the board face while retaining the designed recess. Excess material inside the shadow gap is difficult to remove neatly after curing and destroys the crisp line that justified the detail in the first place.

Plan the flooring sequence, not just the drylining work

The floor contractor needs to understand the shadow gap detail before work starts. A floating floor may require an expansion allowance at the wall edge, which the recess can conceal if it has been sized correctly. Tile installers need a clean, consistent perimeter cut. Carpet installers need a termination method that does not fray into the reveal or pull the wall finish during replacement.

This is where sample sections are valuable. A short mock-up with the selected profile, board, finish and actual floor material will reveal whether the shadow line has the intended scale. It also allows the design team to judge colour contrast, joint quality and the effect of the flooring edge under realistic light. On repetitive fit-outs, approving one mock-up can prevent the same small error being repeated across dozens of rooms.

For refurbishment projects, survey work is especially important. Existing slabs can vary considerably, and retained door frames, radiators or services may conflict with a continuous recessed detail. In those cases, a local transition to conventional skirting or a profile termination can be more appropriate than forcing visual continuity at the expense of build quality.

Common specification mistakes

Most failures with shadow gap skirting are coordination failures rather than product failures. The first is specifying a profile without a confirmed finished floor level. The second is choosing a board-compatible profile but overlooking skim, tile adhesive or other face build-ups. The third is assuming all wall types share the same setting-out line.

Another frequent issue is treating the recess as a service void. It is not a convenient route for loose cables, uneven flooring edges or excess jointing compound. The reveal should remain clear, consistent and easy to clean. Where services must run at low level, they need their own planned route and access strategy.

Finally, select the profile for the environment. A delicate narrow reveal may be ideal for a private suite but vulnerable beside wheeled luggage, cleaning machines or high footfall. In demanding areas, use a sufficiently substantial aluminium section, specify durable finishes and ensure the flooring edge is properly supported.

Partitions Ltd supplies shadow-gap and recessed-skirting profiles as part of a wider range of drylining finishing details, allowing wall transitions, board edges and adjoining partition components to be considered as one coordinated system.

A successful shadow gap is measured in millimetres, but it is achieved through early coordination: a fixed floor datum, compatible wall build-up and disciplined finishing. When those conditions are in place, the detail gives a wall its intended floating edge without asking the installer to hide avoidable problems.
