Wall Ceiling Transition Profile: Specify It Right

A ceiling line that appears perfectly simple is often one of the most demanding details in an interior. Where gypsum plasterboard wall meets ceiling, even a small variation in board alignment, skim coat depth or paint build-up can turn a crisp junction into a visible crack, uneven edge or heavy caulk line. A correctly selected wall ceiling transition profile gives that junction a controlled finish rather than leaving it to site tolerance.

For commercial fit-outs, hospitality schemes, retail interiors and high-end residential work, this is not a minor finishing choice. The wall-to-ceiling detail sets the visual discipline of the whole room. It can create a fine shadow line, form a sharp recessed reveal, accommodate a ceiling plane that stops short of the wall, or provide a clean termination around changes in material.

What a wall ceiling transition profile does

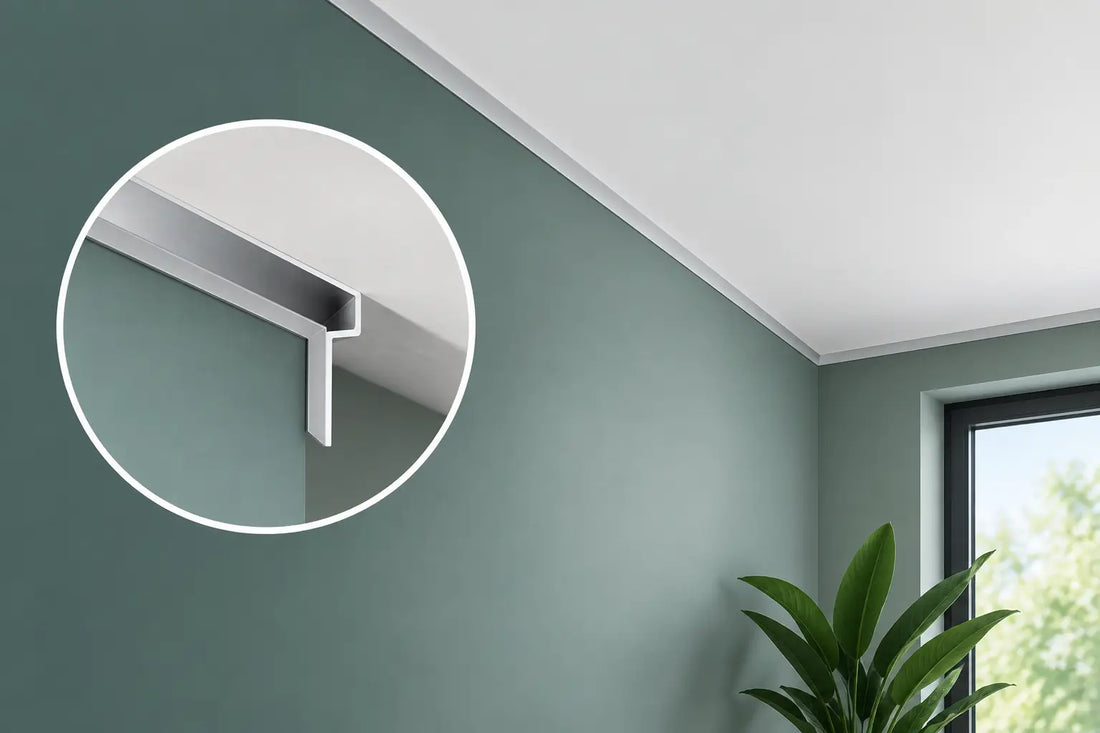

A wall ceiling transition profile is an aluminium trim designed to manage the meeting point between vertical and horizontal plasterboard surfaces. Depending on its geometry, it can create a reveal, protect a plasterboard edge, define a recessed ceiling perimeter or form a crisp line between independently finished planes.

The profile gives installers a stable, straight datum before jointing and finishing. This matters because plaster alone follows the board condition beneath it. If the substrate is not consistently aligned, the finished corner will not be either. A profile establishes the intended line mechanically, reducing reliance on hand-finishing to correct minor inconsistencies.

Architecturally, the result is more deliberate. Rather than a conventional internal corner softened by paint and caulk, the transition can read as a narrow, consistent shadow gap. This is particularly effective where a ceiling is designed to appear separate from the walls, or where linear lighting, concealed curtain tracks or perimeter services need a disciplined edge condition.

It is worth separating visual performance from building performance. A trim can support a neat finish, but it is not automatically a fire-stopping, acoustic-sealing or movement-joint solution. Where the partition or ceiling is part of a rated or acoustic assembly, the full system detail must be checked, including backing, sealants, insulation and specified joint treatments.

Choosing the right wall ceiling transition profile

The correct profile depends on the design intent first, then on board thickness, construction sequence and finishing method. Selecting a trim simply because its visible face looks right can lead to awkward board engagement, insufficient plaster cover or an installation that is difficult to set out consistently.

Shadow-gap and reveal details

A shadow-gap profile is suited to interiors where the ceiling should appear to float slightly away from the wall. The small recessed channel creates a dark line that emphasises geometry without adding decorative moulding. It works especially well with clean, minimal schemes, dark wall finishes and large uninterrupted wall planes.

The reveal dimension needs proportion. A very narrow gap can become lost after paint application, while an oversized recess may look accidental in a low-ceilinged room. The practical requirement is consistency: the same reveal should continue through corners, along long runs and around adjacent architectural features where the design calls for it.

Some profiles create a visible aluminium edge, while others are intended to disappear beneath joint compound and paint, leaving only the recess exposed. The choice affects both appearance and programme. An exposed finish requires careful protection through the remaining trades; a concealed profile places more emphasis on clean jointing and controlled paint application.

Flush transitions and stopping details

Not every wall-to-ceiling junction needs a shadow line. A flush transition profile may be used where wall and ceiling finishes meet at a precise, straight edge but the design requires no visible recess. This can be useful at changes in finish, such as a painted plasterboard ceiling meeting a wall cladding zone, or where a perimeter detail needs to terminate neatly against another system.

For drylining contractors, the main advantage is repeatability. A defined trim edge helps prevent feathered joint compound from drifting across the junction and makes it easier to achieve a sharp paint break. It also protects vulnerable plasterboard edges during finishing and later occupancy.

Movement and independent ceilings

Ceilings and partitions do not always move in the same way. Deflection in the structure above, long ceiling runs, thermal changes and building movement can all affect a rigid junction. If the wall head or ceiling perimeter needs to accommodate movement, a standard decorative trim may not be suitable on its own.

In these cases, the project detail should identify the required movement allowance and the component system designed to provide it. The visual profile still matters, but it must work with the structural and partition design rather than restrain it. This is a common point at fit-out stage: a clean architectural line should never compromise the intended deflection head detail.

Details to confirm before ordering

A wall ceiling transition profile is easiest to install when it has been considered before boarding begins. The profile depth, fixing flange and visible reveal all influence how the framing, board and finish layers meet.

Confirm the plasterboard thickness and whether one or two layers are required. A profile intended for a particular board depth may sit proud or leave an inadequate edge if used with a different build-up. Also establish whether the ceiling board, wall board or both boards engage with the trim. This determines installation sequence and where tolerances can be taken up.

Finish is equally relevant. Raw aluminium is often appropriate where the profile will be skimmed and painted. Pre-finished white, black or anodised-effect options can be used where an exposed line is part of the design. On exposed profiles, request samples early and assess them alongside paint, ceiling tiles, glazing channels and door hardware. A black reveal beside a black-framed glass partition, for example, can create a coherent system detail when dimensions and sheen are matched.

Finally, consider the length and continuity of each run. Long profiles need sensible handling, accurate setting out and clean joints. Where a profile returns into a corner, intersects with a bulkhead or meets a glazing partition, resolve the termination on drawings before materials arrive on site. A well-designed straight run can be undermined by an improvised end detail.

Installation principles that protect the finished line

The substrate must be straight, secure and set out to the required level. Profiles cannot compensate for major framing irregularities. Before fixing, installers should establish a continuous datum using the project’s laser level and check that the intended reveal remains achievable around the room perimeter.

Fix the profile at the specified centres with appropriate screws, staples or other approved fixings for the substrate. Avoid over-driving fixings, as distortion along the flange can telegraph through the joint compound or affect the visible line. Board edges should be cut cleanly and seated without forcing the profile out of alignment.

Joint compound should be applied in controlled passes, keeping material out of any exposed shadow recess. Heavy application at the edge is one of the most common causes of an inconsistent reveal. Once paint is applied, excessive build-up can further reduce a narrow gap, so the painting team should understand that the recess is an intentional architectural feature, not a missed area.

Protection matters after installation. Aluminium profiles at ceiling level are less exposed than wall-corner trims, but they can still be marked by ladders, mobile towers, ceiling service work and cleaning. If the profile has an exposed factory finish, retain the protective film where supplied until the risk of damage has passed, then remove it carefully before handover.

Coordinating the transition with the wider interior system

The strongest results come from treating the wall-to-ceiling junction as part of a family of details. A shadow gap at the ceiling can relate to recessed skirting at floor level, drywall reveals at door openings and slim glazing channels around meeting rooms. Repeating the same visual language gives a fit-out more order without adding unnecessary decoration.

Coordination is particularly valuable where frameless glass partitions meet plasterboard returns. The glazing U channel, wall trim and ceiling transition should be reviewed together so that sightlines are intentional. A few millimetres of difference between revealed edges may be technically acceptable but visually obvious under raking light.

Partitions Ltd supplies architectural aluminium finishing systems for these precise junctions, helping contractors and specifiers coordinate drylining, glazing and clean-edge details from one focused range. For uncertain conditions, a trim sample and section review before procurement can prevent costly changes once boarding is underway.

A wall ceiling transition profile earns its place when it makes the finished space look quieter, straighter and more considered. Specify the profile around the actual board build-up and performance requirements, set it out accurately, and protect the detail through finishing. The result is a ceiling line that does not demand attention, yet makes every adjacent surface look properly resolved.
