Glazing Channels for 10mm and 12mm Glass: A Complete Guide to Safe and Secure Glass Installation

Glass is increasingly used in modern architecture, from internal partitions and balustrades to shopfronts, screens and architectural features. While the glass itself receives much of the attention, the supporting components are just as important.

One of the key components in many glazing systems is the glazing channel.

Glazing channels provide a secure method of holding glass in position while creating a clean, contemporary finish. They are available in different sizes and configurations to accommodate different glass thicknesses, including 10mm and 12mm glass.

However, choosing the right channel is about more than simply matching the channel to the glass thickness. The application, loading conditions, fixing method, glass specification, installation height and safety requirements must all be considered.

This guide explains what glazing channels are, the differences between channels designed for 10mm and 12mm glass, where they are commonly used, and why height safety should be a priority when designing and installing glazed systems.

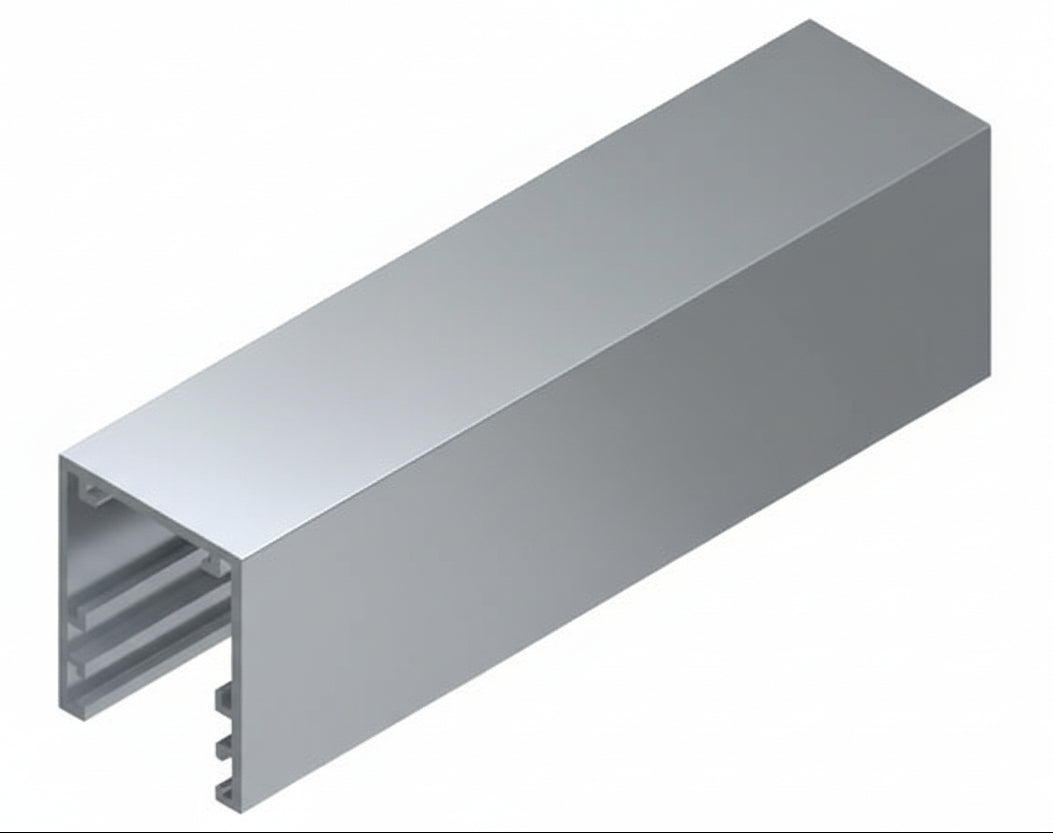

What Is a Glazing Channel?

A glazing channel is a continuous metal profile designed to secure a glass panel along one or more edges.

Channels are commonly manufactured from materials such as aluminium or stainless steel and can be supplied in different finishes to complement the surrounding architecture.

Depending on the system, a glazing channel may use:

• Rubber or EPDM glazing gaskets
• Setting blocks
• Wedges or pressure plates
• Mechanical fixings
• Structural adhesives or approved bonding systems
• Cover trims profiles

The channel transfers loads from the glass into the supporting structure. This makes the channel, its fixings and the substrate an important part of the overall glazing system.

A channel should therefore be selected as part of a complete engineered system, rather than simply as an accessory that fits around a piece of glass.

Glazing Channels for 10mm Glass

10mm glass is commonly used where a balance between strength, weight and appearance is required.

Depending on the glass type and application, 10mm glass may be used for:

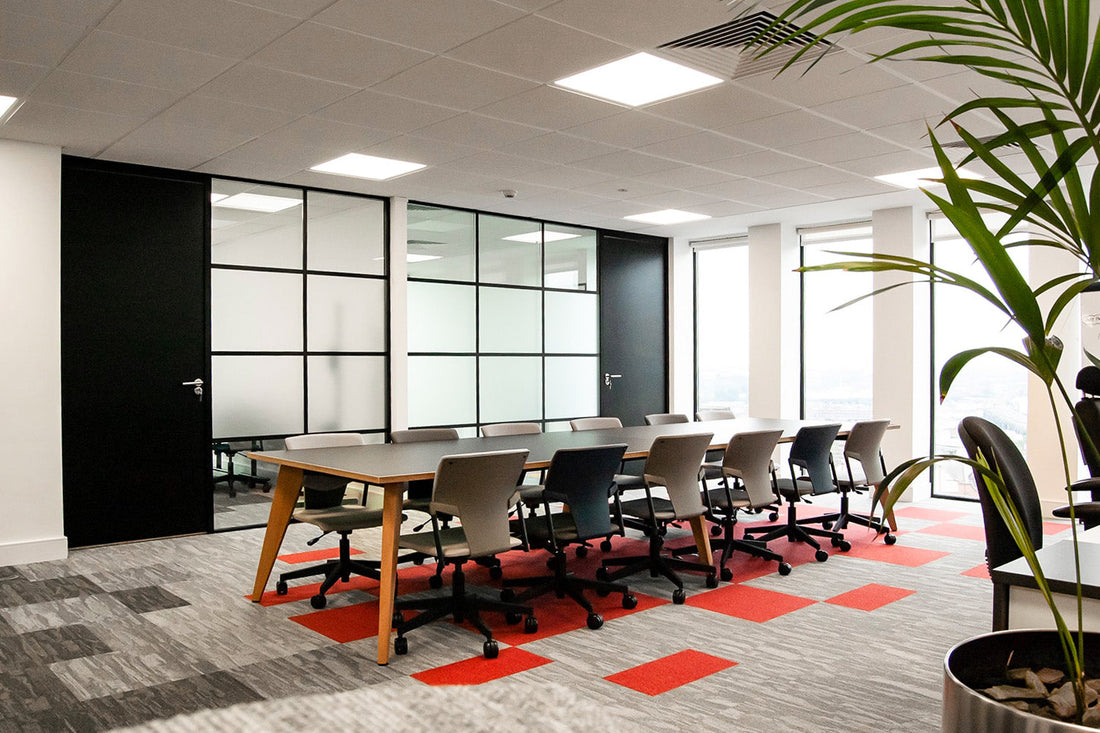

• Internal glass screens
• Office partitions
• Shower screens
• Doors and side panels
• Certain balustrade applications
• Display and commercial glazing
• Architectural screens

A glazing channel intended for 10mm glass needs to provide the correct internal clearance to accommodate the glass, glazing materials and any required tolerances.

The channel should not grip the glass excessively or allow uncontrolled movement. Appropriate gaskets, packers or other approved components may be required to maintain the correct fit.

It is also important to distinguish between 10mm monolithic glass and 10.8mm laminated glass constructions. Their structural behaviour can be very different, so the same channel arrangement should not automatically be assumed suitable for both.

Glazing Channels for 12mm Glass

12mm glass provides a heavier and often more substantial glazing solution.

It is frequently considered for applications where increased thickness is desirable, although the suitability of 12mm glass depends on the specific design and performance requirements.

Typical applications can include:

• Architectural partitions
• Commercial glazing
• Screens
• Certain balustrade systems
• Internal architectural features
• Heavy-duty glazing applications

A channel designed for 12mm glass will generally have a different internal dimension or glazing & gasket arrangement from one designed specifically for 10mm glass.

This difference is important. A channel that accepts 10mm glass should not automatically be assumed to be suitable for Laminated 12.8mm glass, and vice versa.

The manufacturer's specified glass thickness, gasket configuration and installation method should always be checked before installation.

10mm vs 12mm Glazing Channels

The most obvious difference is the glass thickness the channel is designed to accommodate, but there are several other considerations.

The choice should ultimately be based on the complete system design, rather than glass thickness alone.

Why the Correct Channel Size Matters

Using an incorrectly sized channel can create problems during installation and throughout the life of the glazing system.

If the channel is too small, the glass may not fit correctly or may be subjected to inappropriate contact or pressure.

If the channel is too large, simply filling the additional space with unsuitable packing materials may not provide the required structural performance.

Incorrect channel selection can contribute to:

• Glass movement
• Poor alignment
• Damage to glass edges
• Inadequate load transfer
• Water or debris ingress in external applications
• Premature failure of glazing components
• Increased safety risks

For these reasons, installers should follow the glazing-system manufacturer's specifications and installation instructions.

Glazing Channels and Height Safety

Height safety becomes particularly important when glass is installed where people could fall against, through or over the glazing.

Examples include:

• Balustrades
• Staircase guarding
• Mezzanine edges
• Juliet balconies
• Raised walkways
• Terraces
• Platforms
• Open-sided floors
• Elevated external areas

In these situations, the glazing may form part of a fall-protection or guarding system.

This means the design cannot be based purely on appearance.

The complete assembly may need to resist loads generated by people leaning, pushing or falling against the barrier. The glass, glazing channel, fixings and supporting structure must therefore work together.

Glass Safety Is More Than Glass Thickness

One common misconception is that thicker glass automatically means a safer installation.

Thickness is only one part of the equation.

The performance of a glazed barrier can depend on:

• Glass type
• Glass thickness
• Laminated or monolithic construction
• Heat treatment
• Panel dimensions
• Support conditions
• Channel design
• Fixing arrangement
• Fixing spacing
• Substrate strength
• Design loads
• Installation quality
• Edge protection
• Environmental conditions

For safety-critical applications, the complete system should be appropriately designed and assessed for its intended use.

Laminated Glass for Fall Protection

Where glazing forms a protective barrier, laminated glass is often an important consideration because the interlayer can help retain broken glass after fracture.

If a laminated pane breaks, the glass fragments can remain attached to the interlayer rather than falling away immediately.

However, laminated glass should not be treated as automatically suitable for every height-safety application.

The required glass construction should be determined according to the application, dimensions, loads, support conditions and applicable standards or regulations.

For critical installations, obtain appropriate design or engineering advice rather than selecting glass solely on thickness.

The above is oftern referred to a load bearing test requirement.

Channel Fixings Are Critical

A strong glazing channel is only as effective as the structure to which it is fixed.

For example, a channel attached to a weak substrate may not provide adequate resistance even if the channel itself is manufactured from a strong material.

The design should therefore consider:

• Anchor type
• Anchor capacity
• Fixing diameter
• Fixing spacing
• Edge distances
• Substrate material
• Concrete or masonry condition
• Steelwork dimensions
• Timber structure, where applicable
• Pull-out and shear forces
• Installation tolerances

For height-safety applications, fixing design can be especially important because loads may be transferred into the channel and then directly into the supporting structure.

Installation of Glazing Channels

Although exact procedures vary between manufacturers, a typical installation process involves several key stages.

1. Check the design

Before starting work, confirm:

• Glass thickness
• Glass specification
• Channel type
• Channel dimensions
• Required gaskets
• Fixing specification
• Support conditions
• Panel dimensions
• Required tolerances

For safety-critical applications, ensure the design has been appropriately assessed before installation.

2. Prepare the substrate

The supporting surface should be suitable for the selected channel and fixing system.

The substrate should be checked for:

• Level
• Straightness
• Structural condition
• Cracks or damage
• Fixing locations
• Required edge distances

Any defects should be addressed before installing the channel.

3. Position and fix the channel

The channel should be accurately aligned before it is permanently fixed.

Fixings should be installed according to the manufacturer's specified type, spacing and torque requirements.

4. Install glazing components

Appropriate gaskets, setting blocks, packers or other system components should be installed as specified.

Do not substitute components without confirming compatibility with the glazing system.

5. Position the glass

Glass should be handled using suitable equipment and appropriate personal protective equipment.

Care should be taken to prevent glass edges from striking metal, concrete or other hard surfaces.

6. Secure the glass

The glass should be secured using the manufacturer's specified glazing method.

The installer should verify that the panel is correctly positioned and that the required clearances and support conditions have been achieved.

7. Complete inspection

Once installed, inspect the complete system for:

• Correct alignment
• Secure fixings
• Correct gaskets
• Glass damage
• Adequate support
• Correct channel engagement
• Stability
• Finished appearance

For height-safety installations, inspection should be particularly thorough.

Common Mistakes to Avoid

Choosing the channel based only on glass thickness

Knowing that the glass is 10mm or 12mm is not enough. The application and structural requirements must also be considered.

Mixing components from different systems

A gasket, channel and fixing combination that appears physically compatible may not have been tested or designed as a complete system.

Using unsuitable packing

Improvised packing materials can alter the way loads are transferred through the glazing assembly.

Ignoring the substrate

The channel may be capable of carrying the required load, but the supporting substrate and anchors may not be.

Treating a balustrade like ordinary glazing

A balustrade or guarding system has specific safety requirements because its purpose is to prevent falls.

Assuming thicker means safer

12mm glass is not automatically safer than 10mm glass. The complete glass construction and system design are what matter.

Failing to protect glass edges

Glass edges can be particularly vulnerable during transportation and installation. Damage can compromise the performance of the panel.

10mm or 12mm: Which Should You Choose?

There is no universal answer.

For a relatively lightweight architectural application, a correctly specified 10mm glazing system may be appropriate.

For applications requiring a different level of rigidity, appearance or structural performance, a 12mm system may be considered.

However, where glazing is installed at height or forms part of a protective barrier, the decision should be based on the specified system design and applicable requirements, not simply on choosing the thicker glass.

The correct question is not:

"Is 10mm or 12mm glass better?"

Instead, it is:

"Which complete glazing system is suitable for this application and its design loads?"

The Importance of Professional Specification

Glazing systems can look deceptively simple. A glass panel held in an aluminium or stainless-steel channel may appear straightforward, but the engineering behind a safe installation can be considerably more complex.

This is particularly true when glazing is:

• Above ground level
• Used as a balustrade
• Located beside stairs
• Used as guarding
• Exposed to significant wind loads
• Installed in public or commercial areas
• Subject to impact requirements

For these applications, the specification should be established before materials are ordered.

A competent designer, structural engineer, glazing specialist or system manufacturer can help establish the appropriate glass construction, channel system, fixing arrangement and installation method.

Height Safety: A Practical Checklist

Before installing glazing at height, consider the following:

• Is the glazing acting as a barrier or guard?
• What height and location is involved?
• What loads does the system need to withstand?
• Is the selected glass construction appropriate?
• Is laminated safety glass required?
• Is the channel specifically designed for the glass?
• Are the fixings suitable for the substrate?
• Has the supporting structure been checked?
• Are the manufacturer's installation instructions being followed?
• Are the applicable building and safety requirements being addressed?
• Has the completed installation been inspected?

If the answer to any of these questions is uncertain, the installation should be reviewed before work proceeds.

Final Thoughts

Glazing channels provide an effective and attractive way to secure glass, but the channel is only one part of a complete glazing system.

For 10mm and 12mm glass, selecting the correct channel means considering glass thickness, channel clearance, glazing components, fixings and the supporting structure. When the glazing is installed at height or forms part of a balustrade or guarding system, additional attention must be given to structural performance and safety.

Most importantly, do not select a glazing channel based solely on whether it physically fits the glass.

The glass, channel, fixings, substrate and installation method should all be compatible and suitable for the intended application. For height-safety installations in particular, use an appropriately designed and specified system and ensure the work complies with the relevant requirements.

A well-designed glazing channel system does more than create a clean architectural finish — it helps ensure that the glass performs safely and reliably throughout its service life, however some basic projects do not need the measures as stated above, always talk with the supplier for advise, never but assume to avoid safety measures !
