Aluminium U Channels - Two-Part 25x25x3m

These two-part aluminium U channels, measuring 25x25x3mm, are expertly designed for floor and wall abutment applications in partitioning systems. Their precise construction facilitates simple and secure glass insertion at panel ends, making them especially effective for smaller side lights, screens, and standard wall junctions. Crafted from durable aluminium, these channels offer reliable support while ensuring a clean, professional finish. Ideal for architects and installers seeking efficient, high-quality glazing solutions, they streamline installation without compromising structural integrity or aesthetic appeal.

Specification

• Supplied - 25mm x 25mm x 3000mm two part Lengths
• Panel or glass maximum 18mm width capacity / 20mm depth.

• Stocked in 4 popular colours white / silver / grey / black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium.

• Dry glaze  Glass gaskets optional 10-12.8mm glass

• NB: This channel is not recomended for head fixtures only wall and floor.
• Glazing range

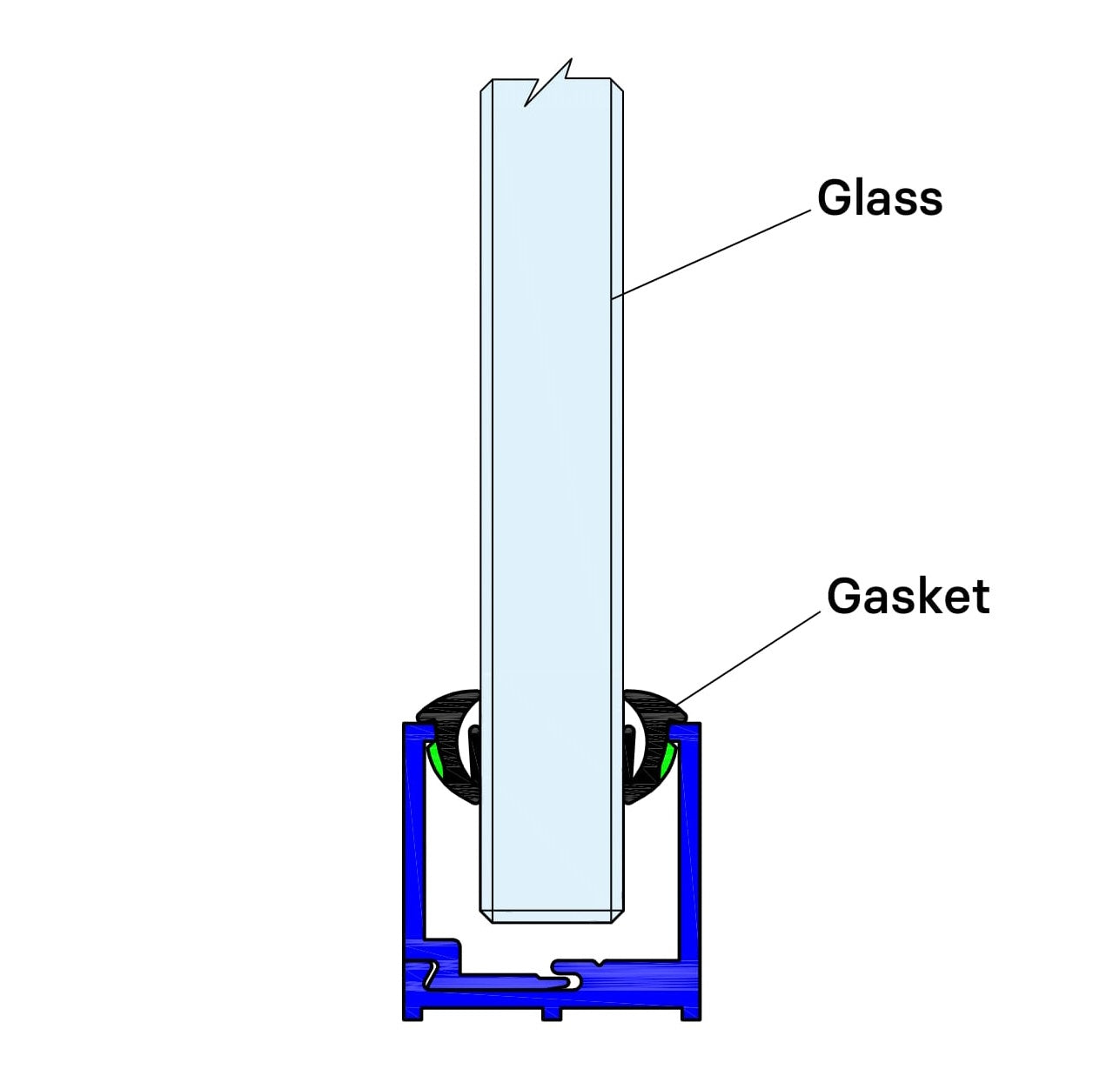

Base U Channel Example

Below example shows glass inserted into base track and glazing bead, gasket is then simply pushed into place to dry fit after glazing bead is inserted, packers recommeded to protect base of glass.

Wall Abutment Glazing U Channel Example

Below example shows glass inserted into track as an abutment example ( down a wall ) gasket is then simply pushed into fit after glazing bead is inserted, clerance for shuffle glazing to be considered when using this method.
