Glazing aluminium U Channels - Two-Part 25x25x3m

Glazing aluminium U Channels - Two-Part 25x25x3m

Designed for use in floor and wall abutment details, these two-part partitioning glazing aluminium U channels provide easy glass insertion at the ends of panel runs, particularly useful for smaller panel side lights and screens as well as traditional wall abutments.

Specification

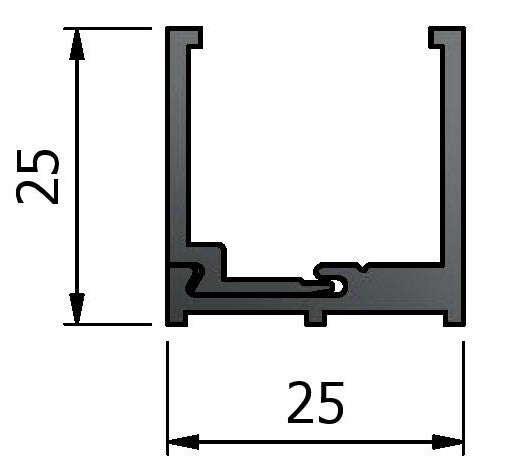

  • Supplied - 25mm x 25mm x 3000mm two part Lengths
  • Panel or glass maximum 18mm width capacity / 20mm depth.

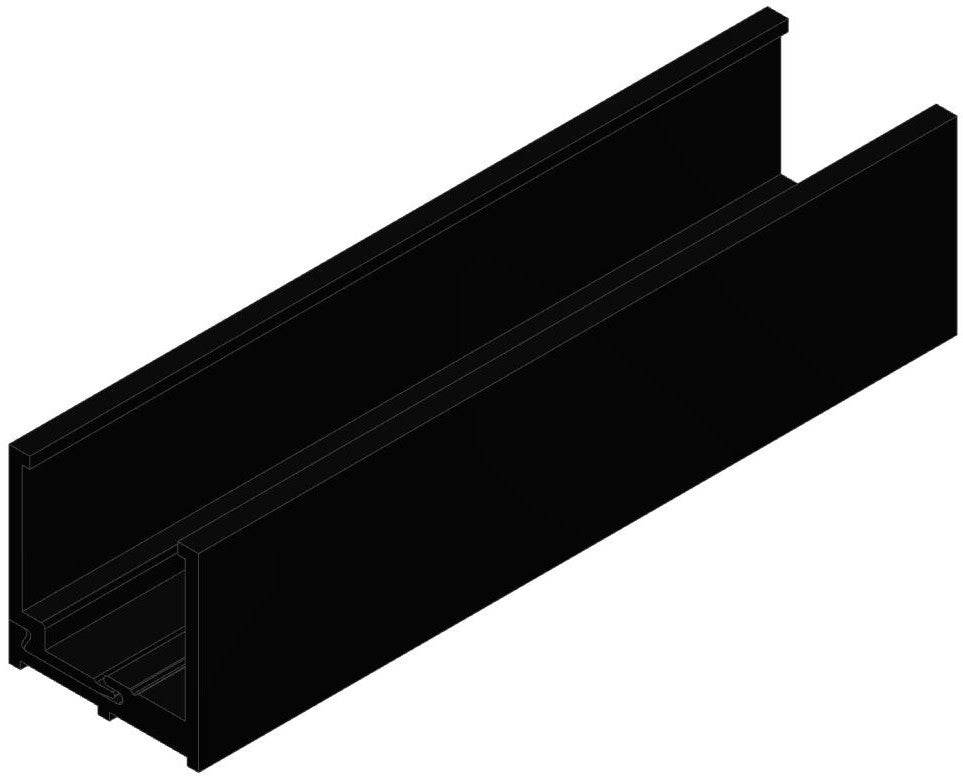

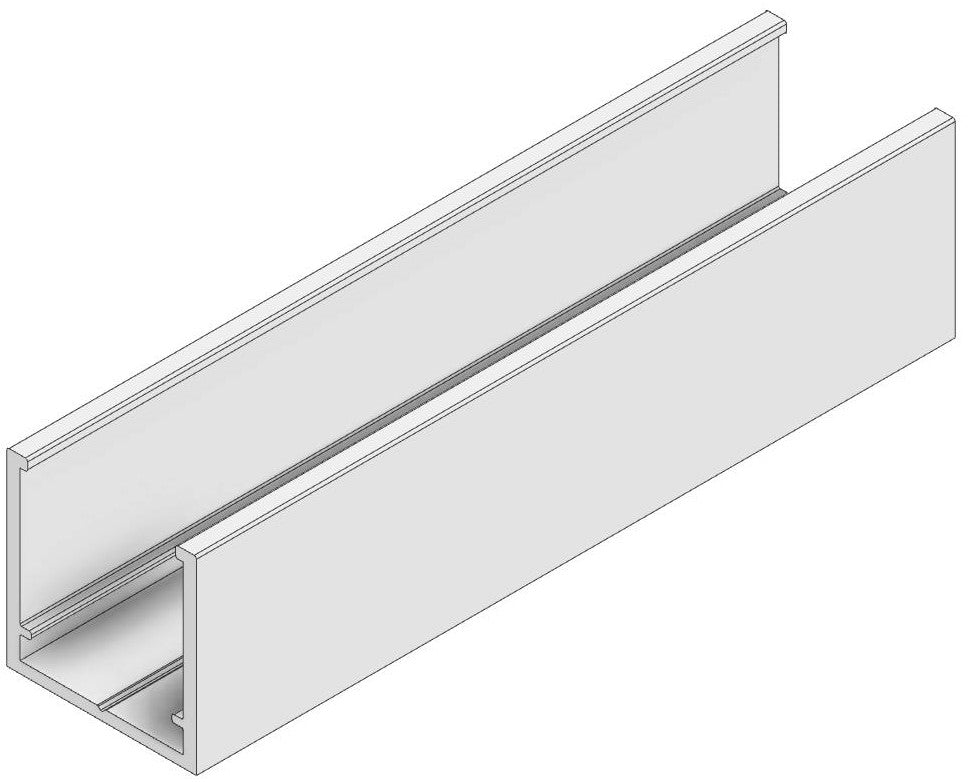

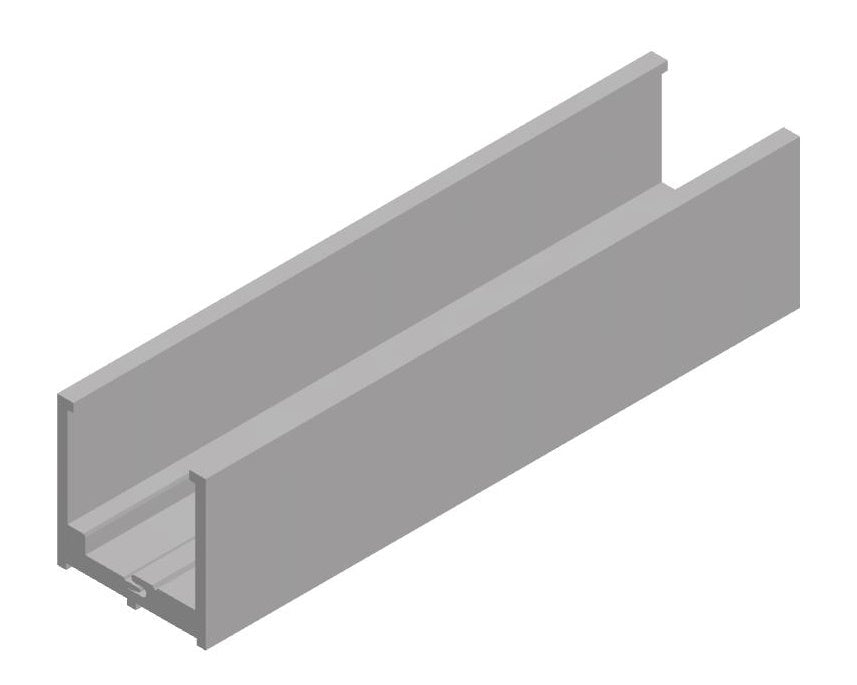

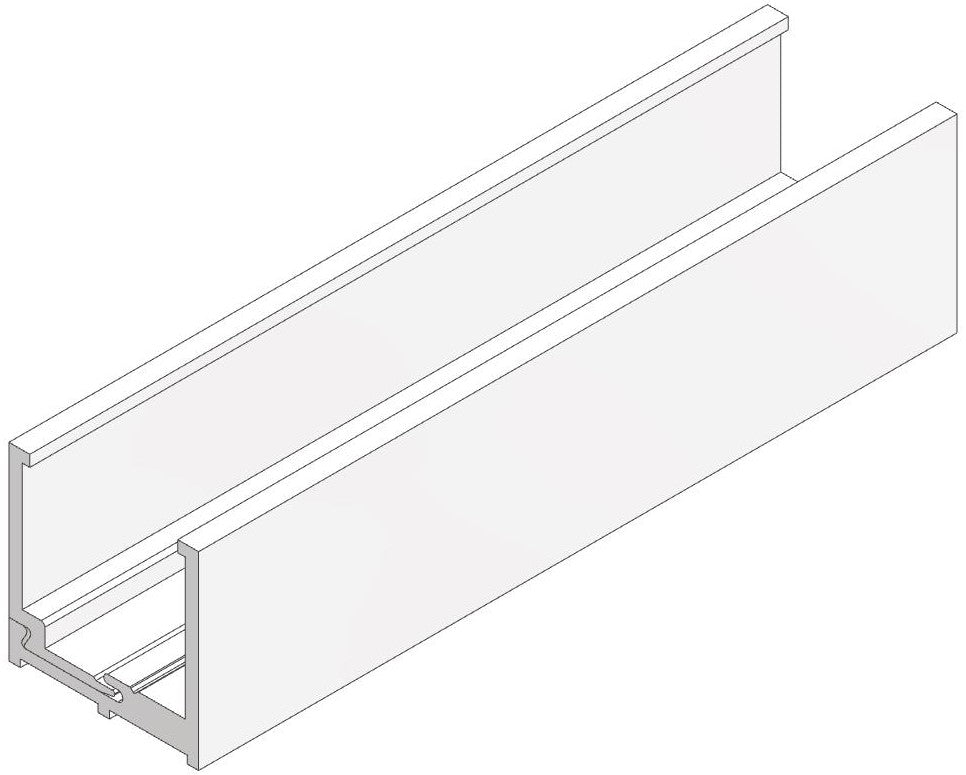

  • Stocked in 4 popular colours white / silver / grey / black.
  • Durable powder costing
  • Engineered from T6 Internal architectural grade aluminium.

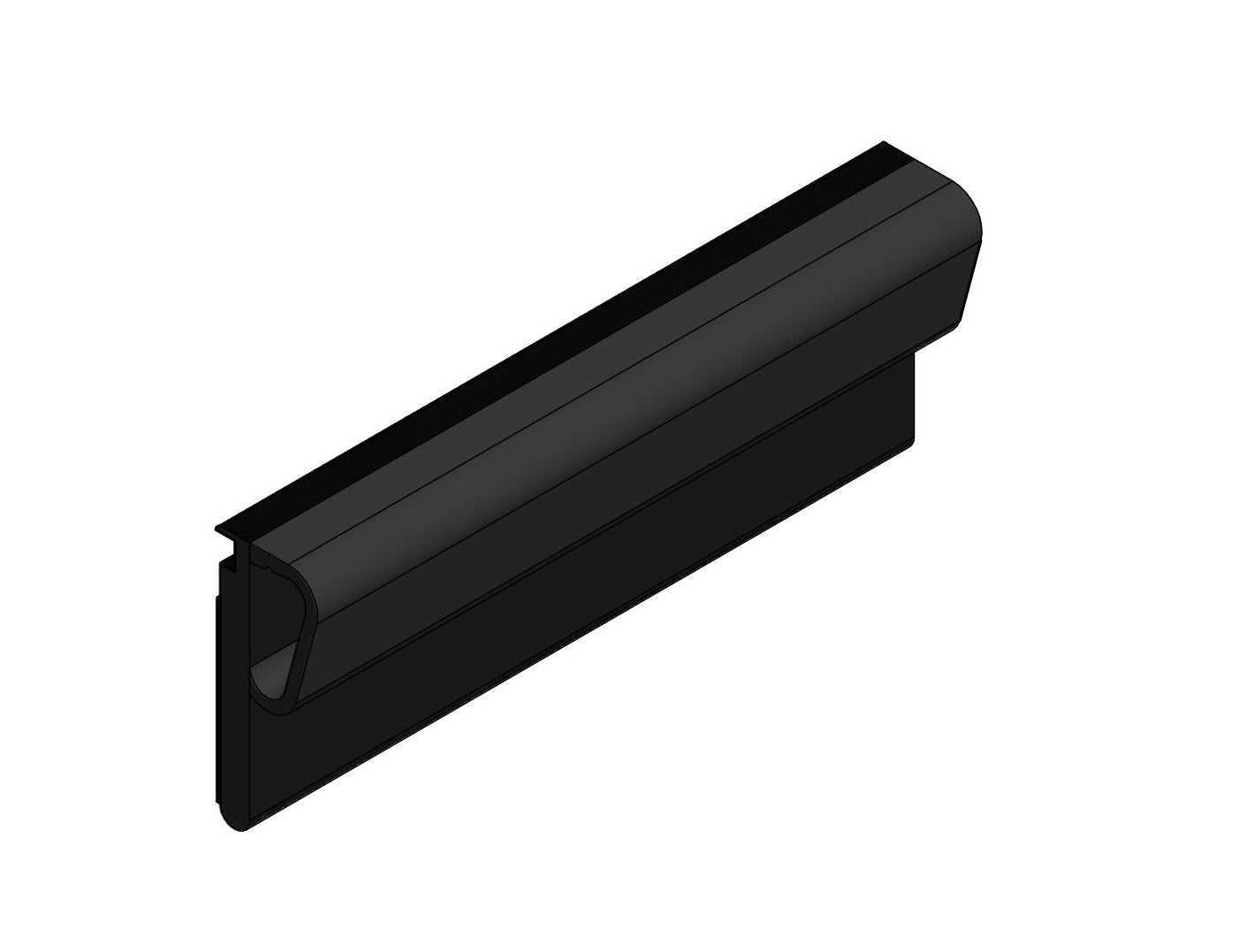

  • Dry glaze  Glass gaskets optional 10-12.8mm glass
  • NB: This channel is not recomended for head fixtures onlly wall and floor.

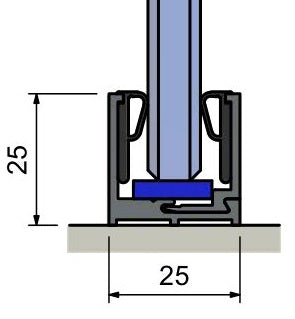

Base U Channel Example

Below example shows glass inserted into base track and glazing bead, gasket is then simply pushed into place to dry fit after glazing bead is inserted, packers recommeded to protect base of glass.

Base Fix Two-Part Base Glazing Channel

Wall Abutment Glazing U Channel Example

Below example shows glass inserted into track as an abutment example ( down a wall ) gasket is then simply pushed into fit after glazing bead is inserted, clerance for shuffle glazing to be considered when using this method.

Wall Abutment Option - Glazing U Channel
