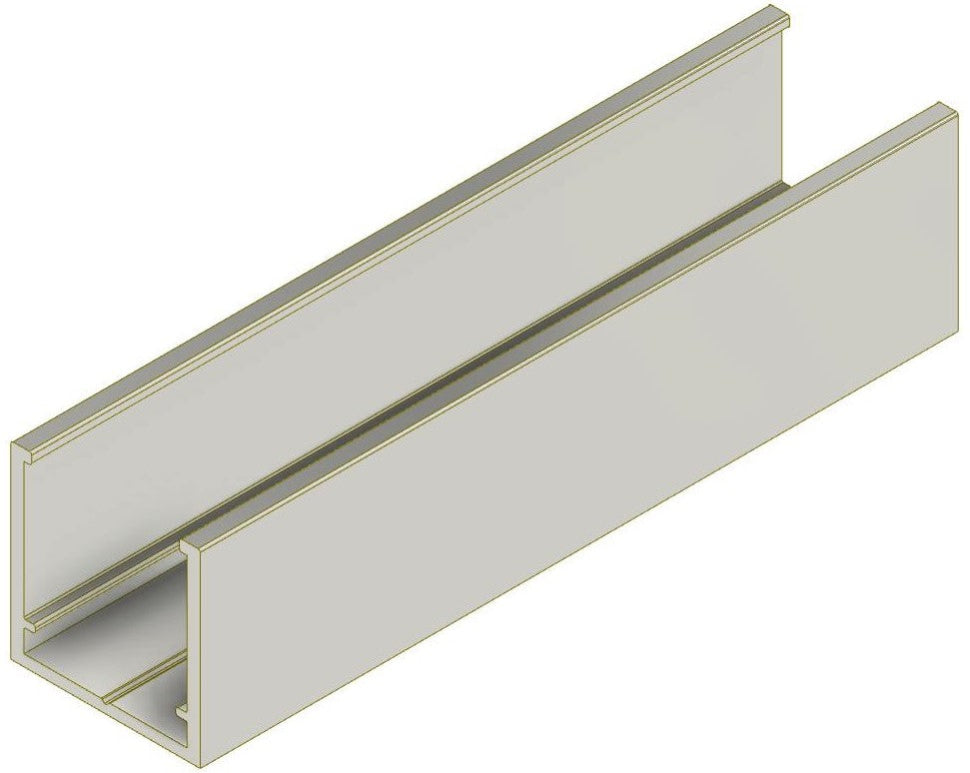

Aluminium U Channel - 25x25x3m

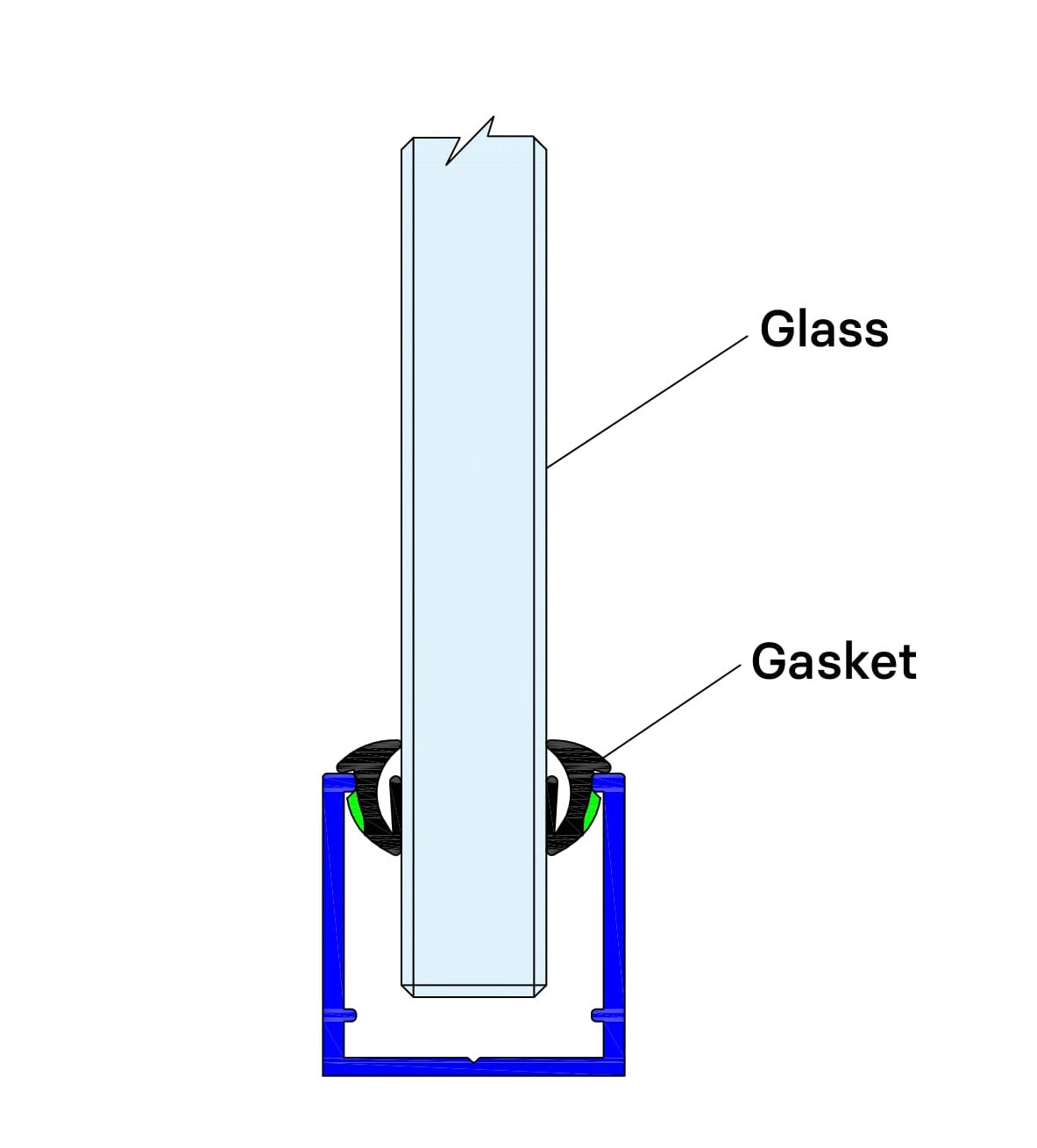

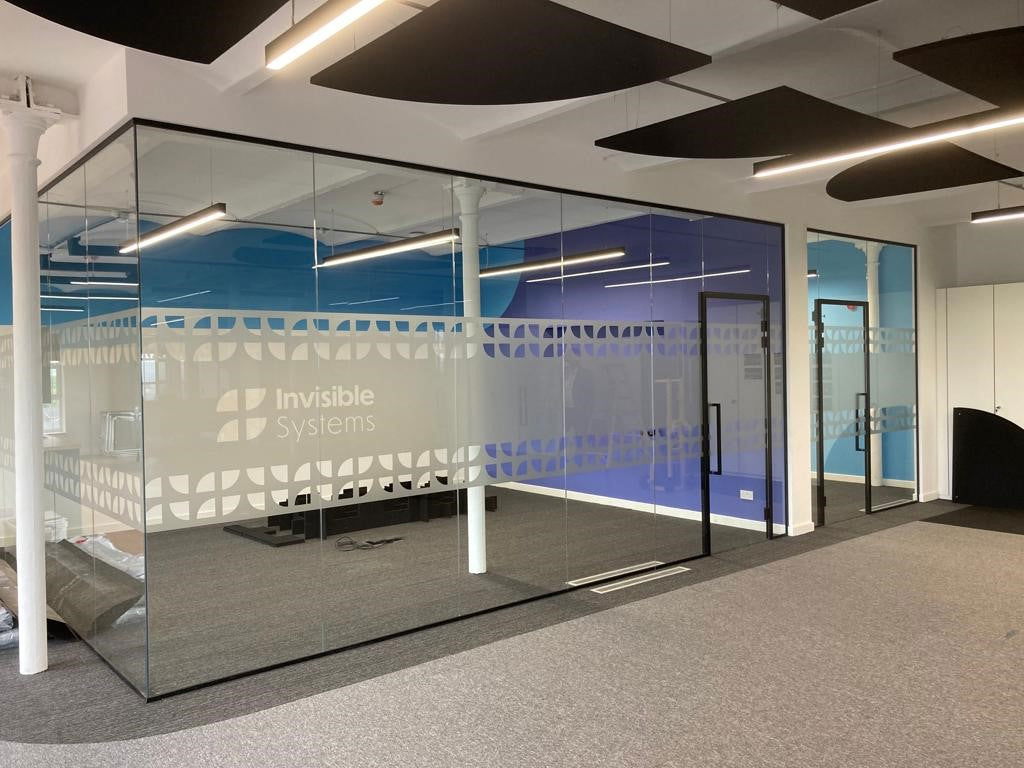

Designed specifically for partitioning glass screen glazing heads and wall details, this aluminium U channel measures 25x25x3m and offers a precise solution for securing glass panels. Its metal U-shaped profile facilitates easy insertion and alignment of glass panels, allowing for smooth adjustment and positioning before final installation. The channel supports a clean, professional finish, whether using silicone sealant or the optional push-in gasket insert for enhanced stability and reduced movement. Engineered for durability and precision, this aluminium U channel ensures an expert-level fit suitable for modern architectural partitions and glazing applications.

Specification

• Supplied - 25mm x 25mm x 3000mm length
• Panel or glass maximum 18mm width capacity.

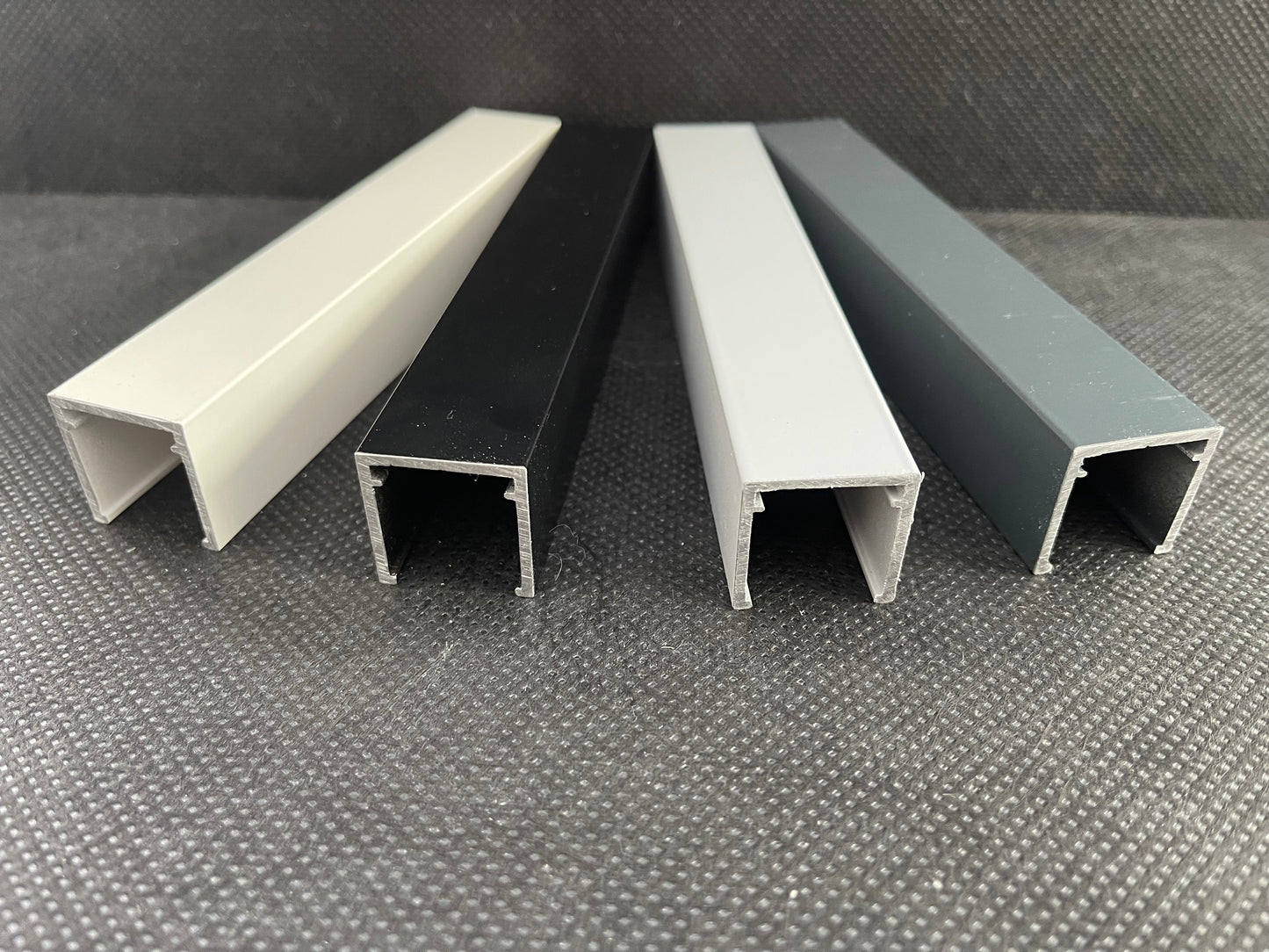

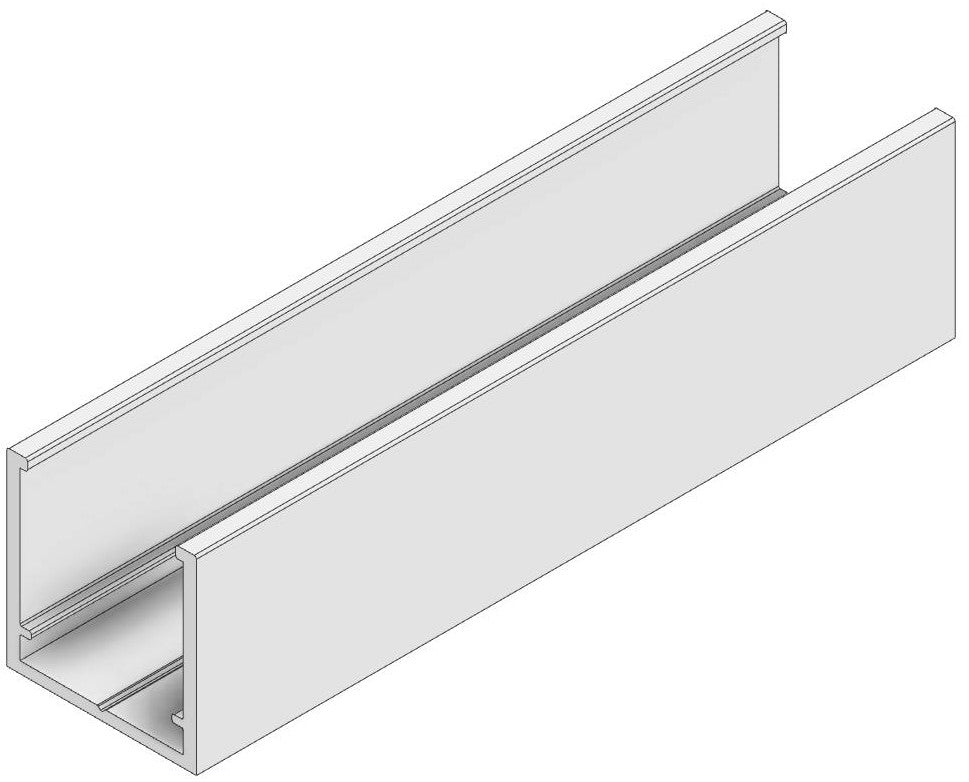

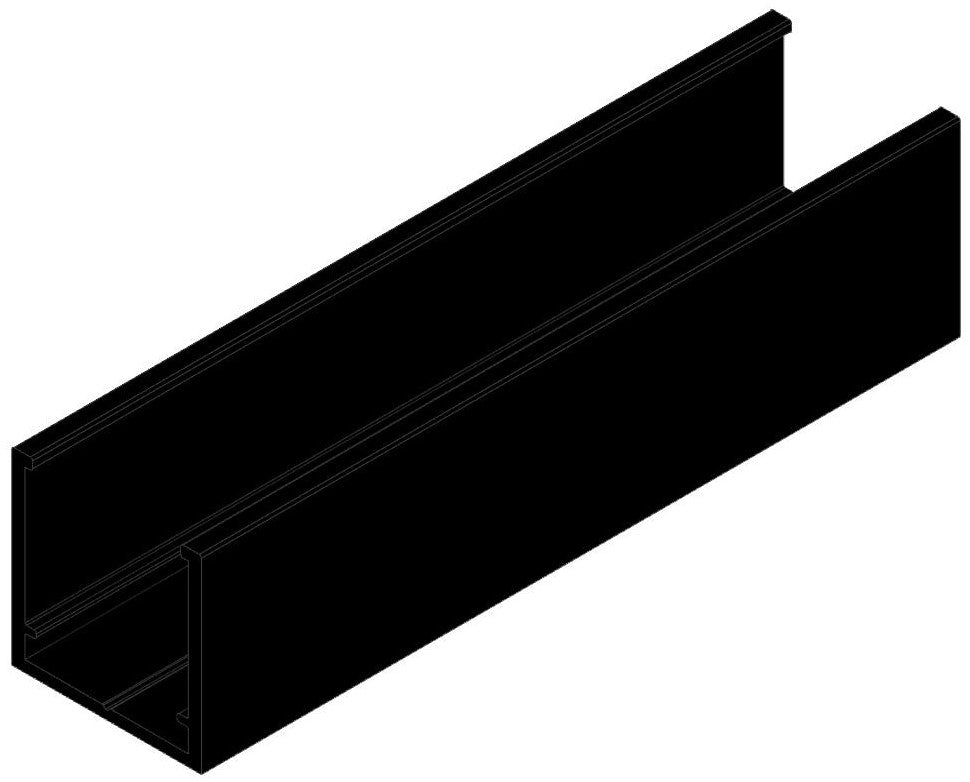

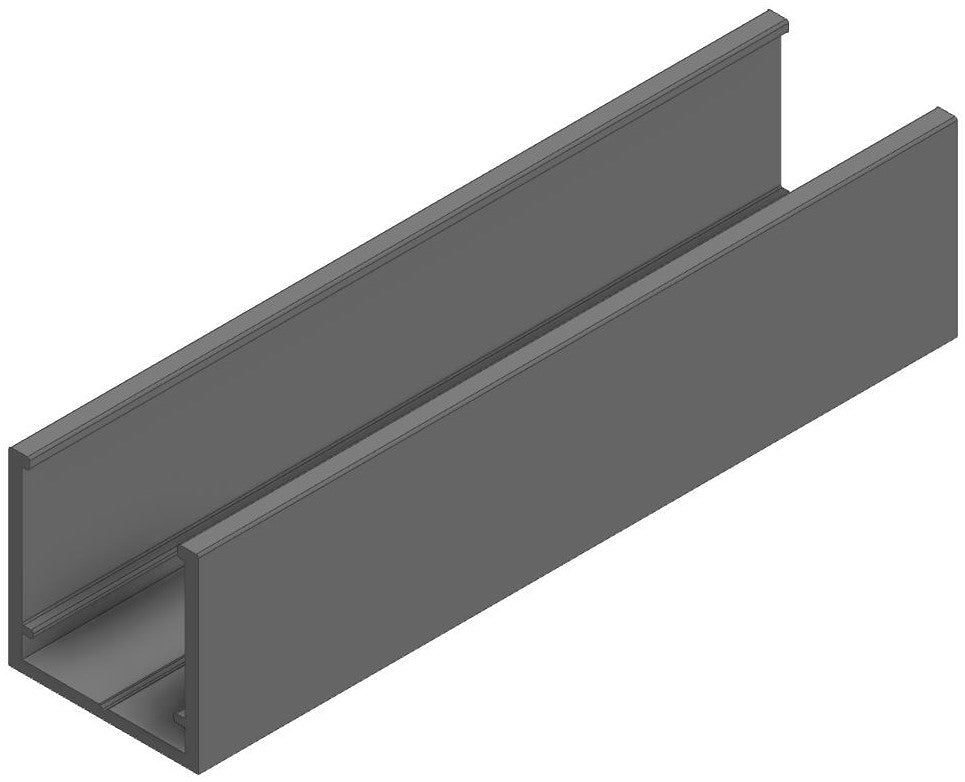

• Stocked in 4 popular colours white / silver / grey / black.
• Durable powder coating
• Engineered from T6 Internal architectural grade aluminium.

• Used for standard glass or boards when silicone or wedge fixing.

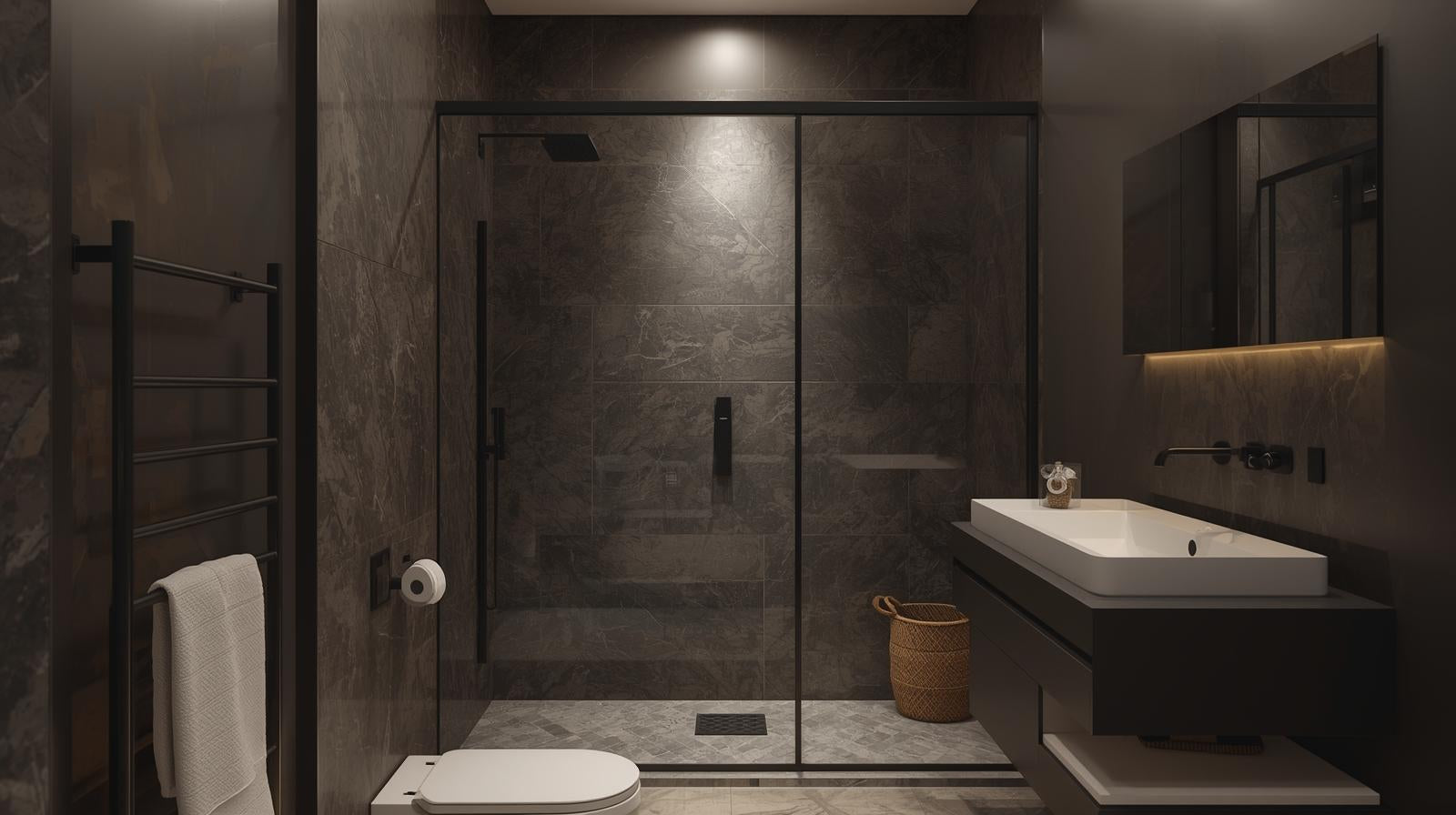

• Can be used in shower rooms if silconed fixied.

• Glazing range

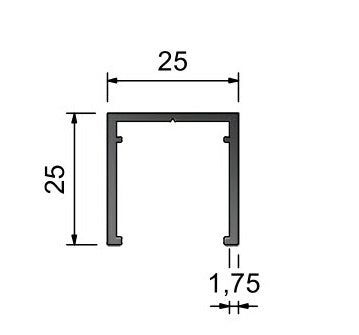

U Channel Dimensions
