Aluminium U Channel Glazing - 25x25x3m PK10

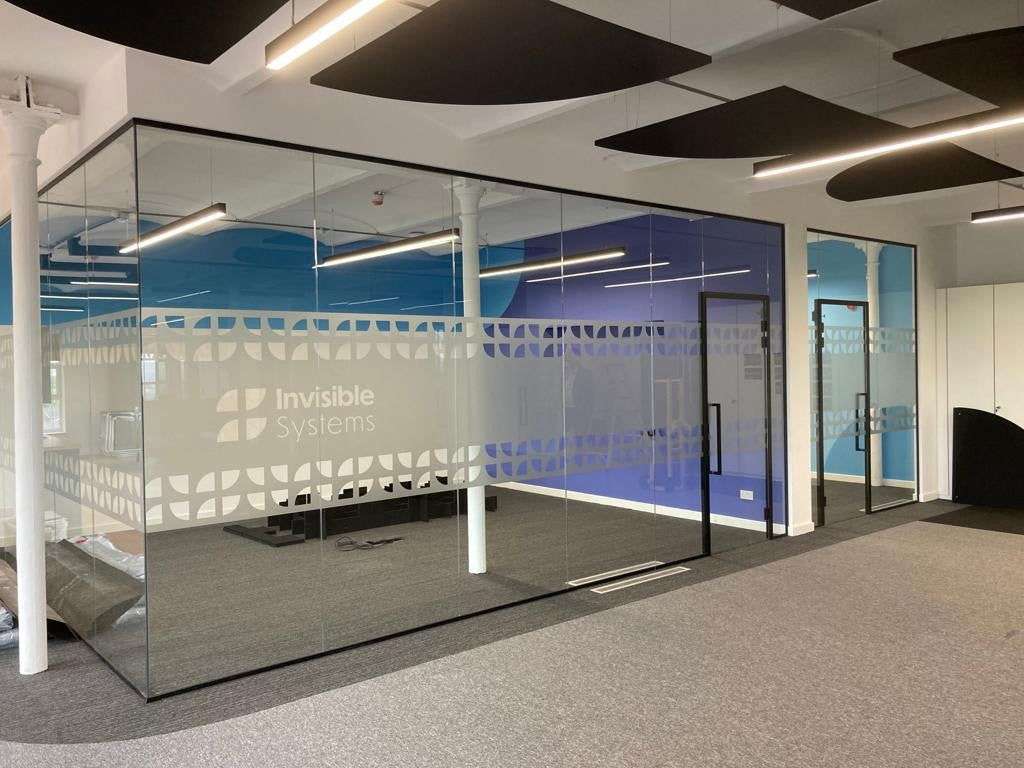

Aluminium U Channel Glazing - 25x25x3m -Designed originally for partitioning glass screen glazing head & wall details, this aluminium metal U profile shaped channel provides easy glass insertion allowing shuffled glass panels and positioning before silcone or using the optional push in gasket insert to finish, oftern refered to as head track or glazing trims.

Aluminium U Channel Glazing - 25x25x3m Specification

• Supplied - 25mm x 25mm x 3000mm length
• Panel or glass maximum 18mm width capacity.

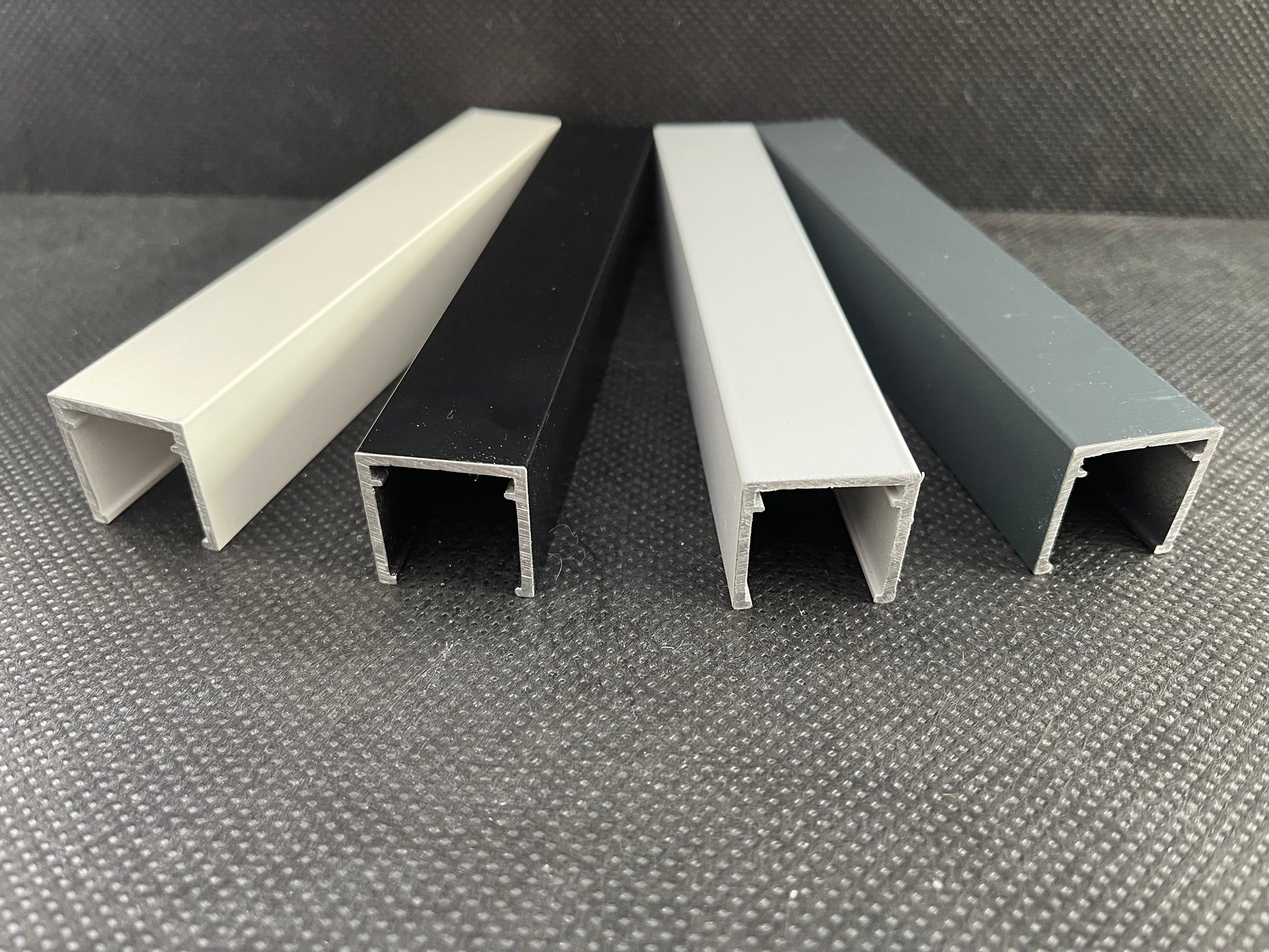

• Stocked in 4 popular colours white / silver / grey / black.
• Durable powder coating
• Engineered from T6 Internal architectural grade aluminium.

• Used for standard glass or boards when silicone or wedge fixing.
• Can be used in shower rooms if silconed fixied.

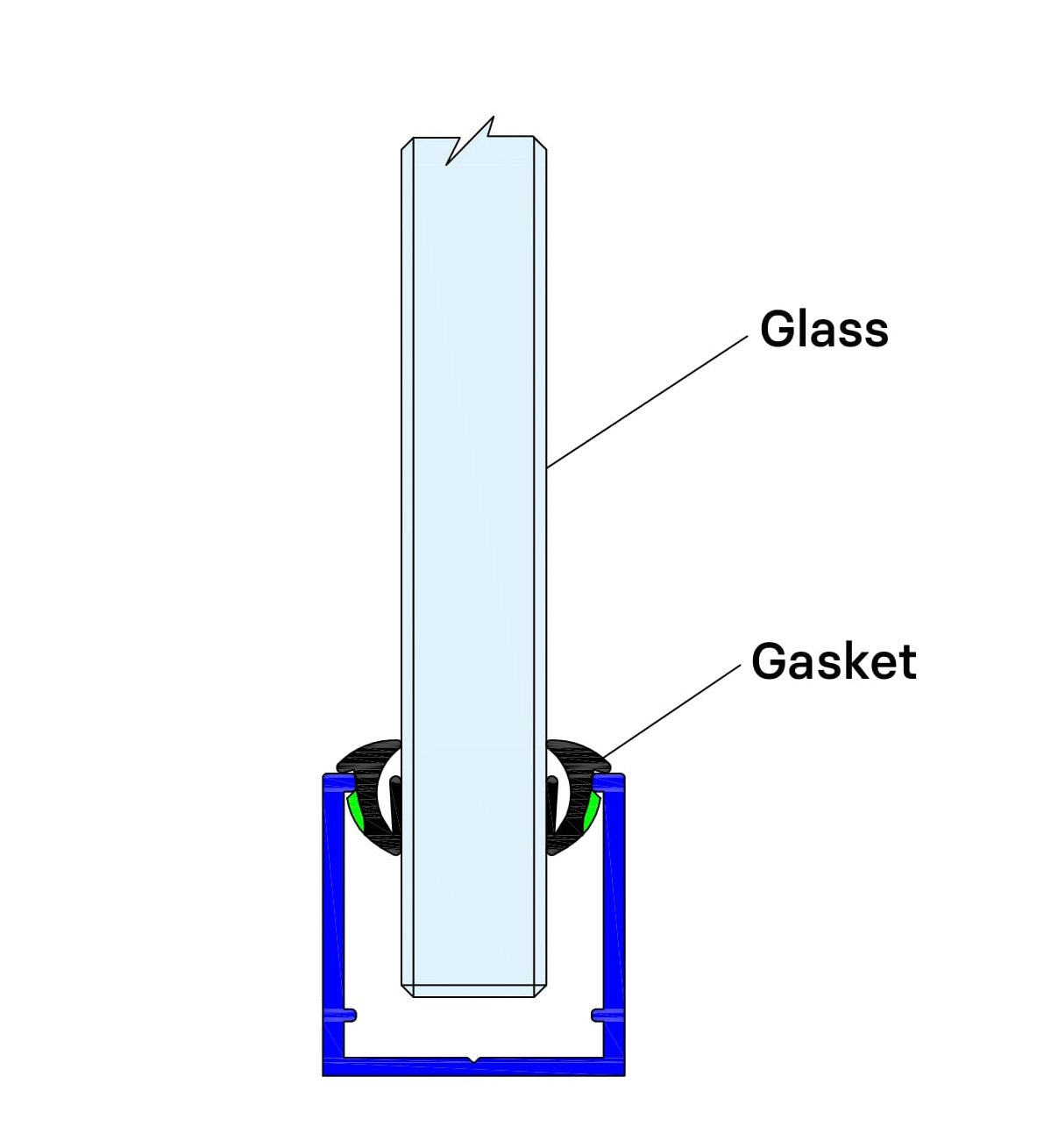

• For gasket glazing versions >>>

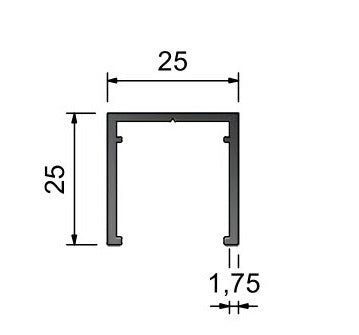

U Channel Dimensions
