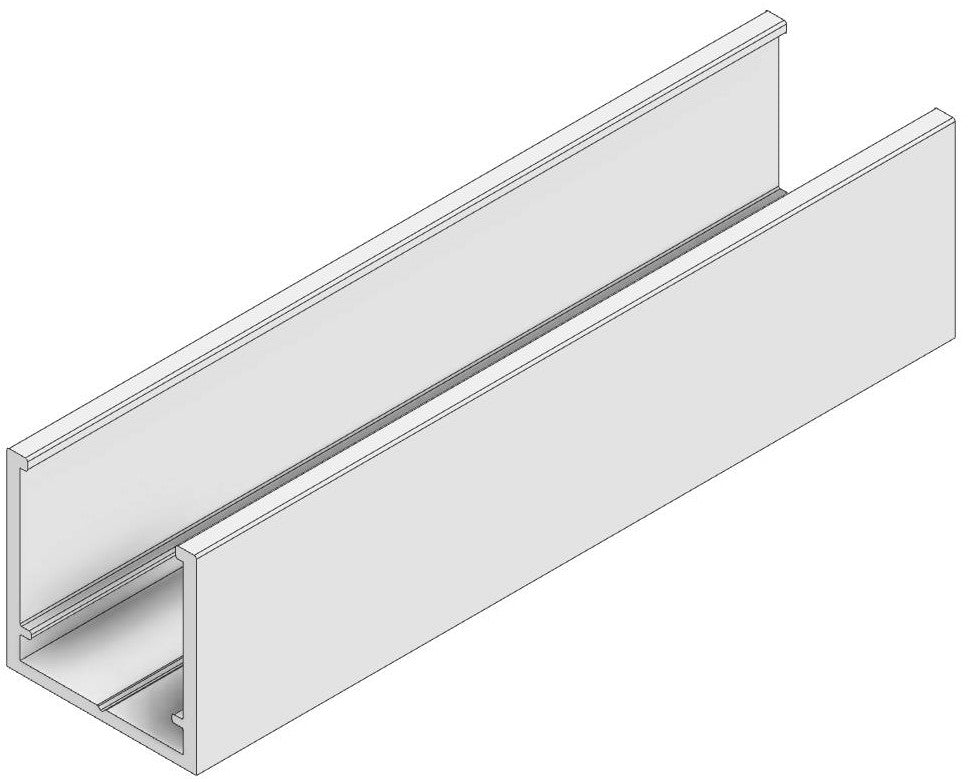

Aluminium U Channels - Two-Part 25x25x3m PK10

These two-part aluminium U channels, sized 25x25x3mm and supplied in packs of 10, are expertly engineered for precision installation in floor and wall abutment details. They facilitate effortless glass insertion at panel ends, making them ideal for smaller side lights, screens, and conventional wall junctions. The robust aluminium construction ensures durability while maintaining a sleek profile that complements modern partitioning systems. Designed to integrate seamlessly with glazing panels, these U channels enhance structural stability and provide a clean, professional finish in commercial and residential interiors. Their two-part design allows for straightforward assembly, reducing installation time and improving overall efficiency. oftern refered to as head track or glazing trims.

Specification

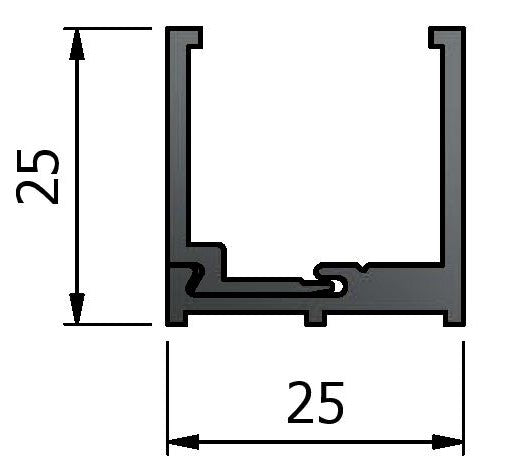

• Supplied - 25mm x 25mm x 3000mm two part Lengths
• Panel or glass maximum 18mm width capacity / 20mm depth.

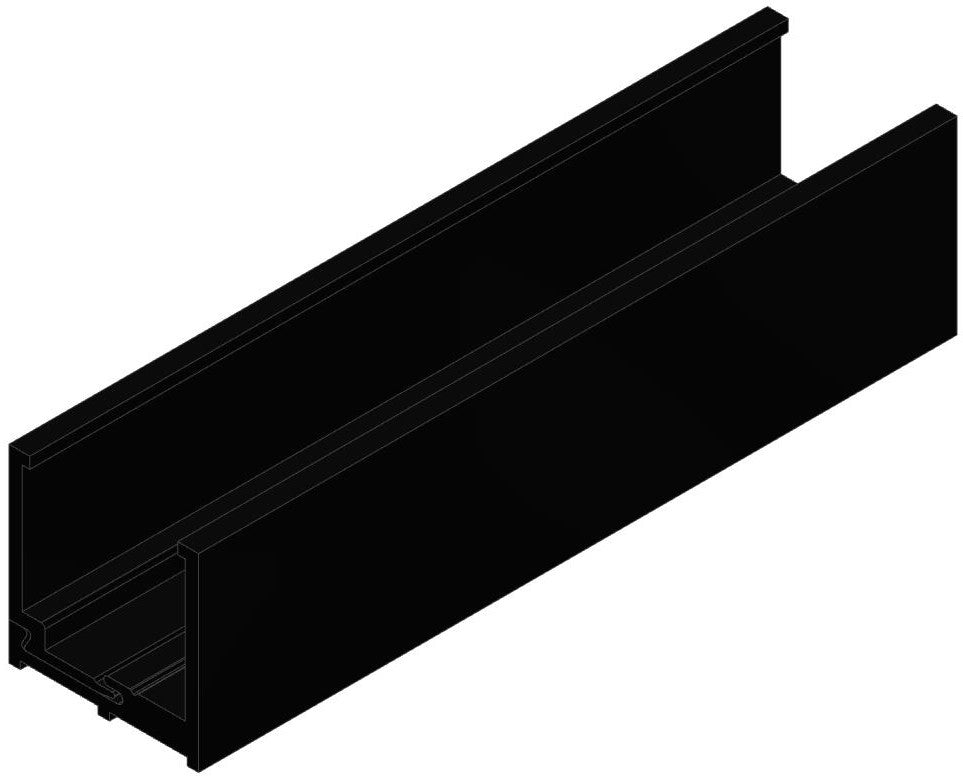

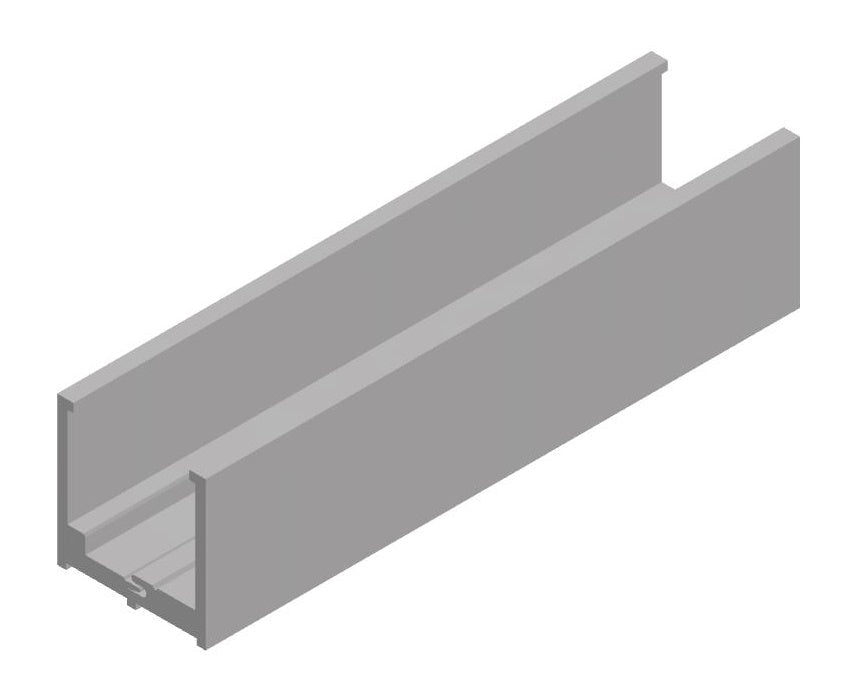

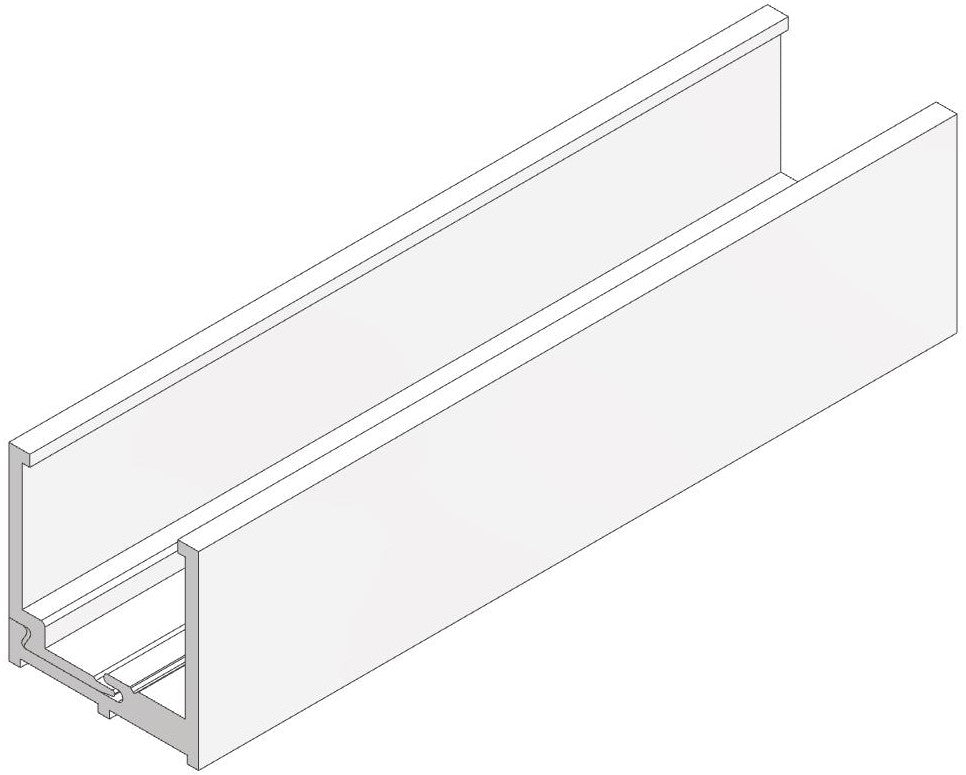

• Stocked in 4 popular colours white / silver / grey / black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium.

• NB: This channel is not recomended for head fixtures only wall and floor.
• NB: Gasket not supplied see >>> Gaskets
• Glazing range

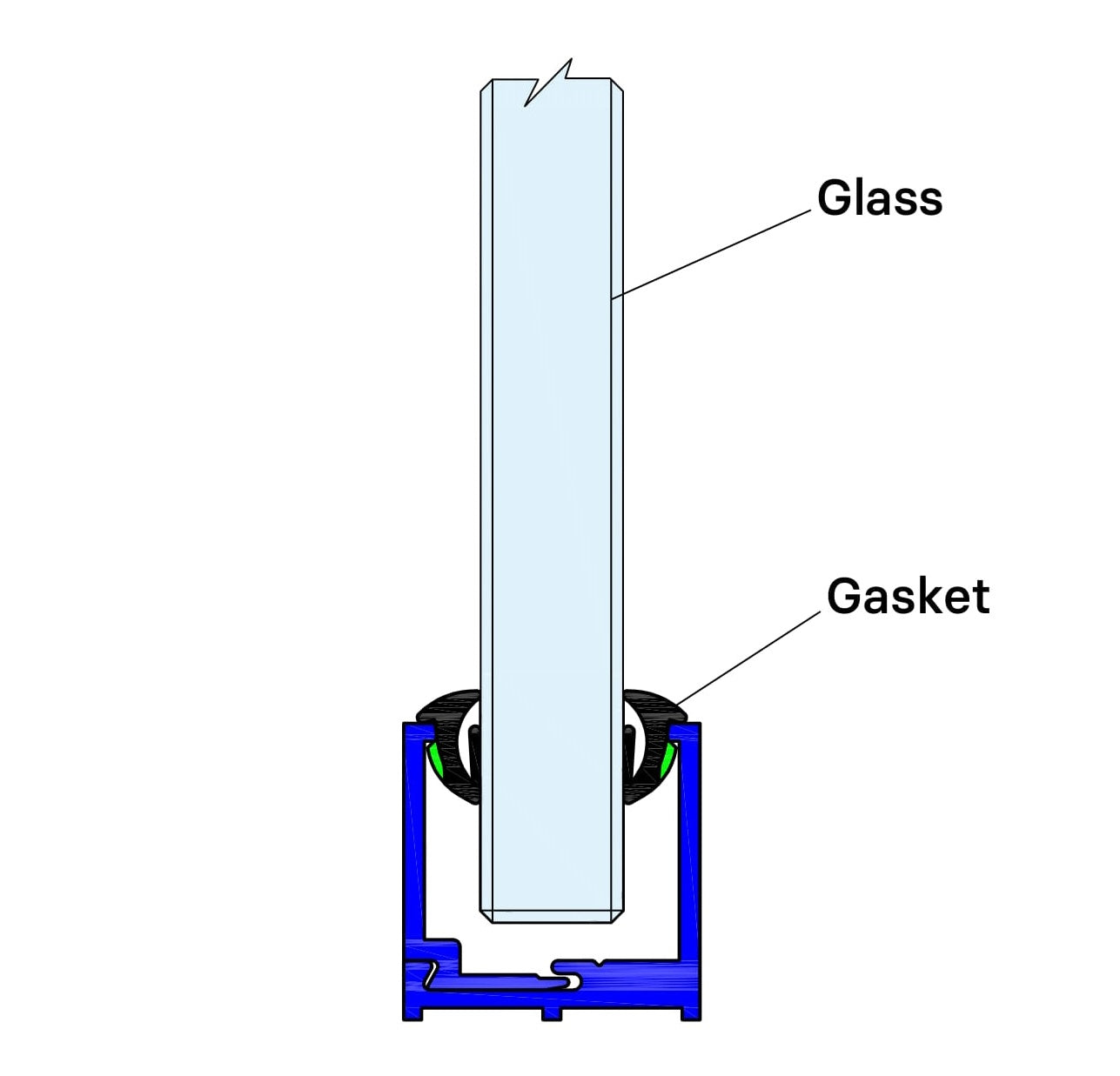

Base U Channel Example

Below example shows glass inserted into base track and glazing bead, gasket is then simply pushed into place to dry fit after glazing bead is inserted, packers recommeded to protect base of glass.

Wall Abutment Glazing U Channel Example

Below example shows glass inserted into track as an abutment example ( down a wall ) gasket is then simply pushed into fit after glazing bead is inserted, clerance for shuffle glazing to be considered when using this method.
