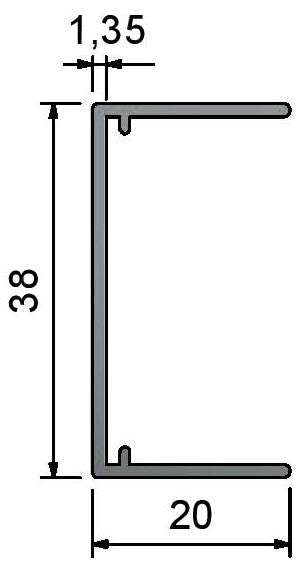

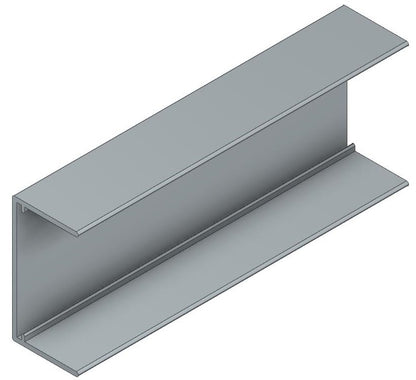

CH20-Type Ceiling Perimeter Channel Trim

CH20-Type Ceiling Perimeter Channel Trim - are C channel trims forming a sharp edge detail at the junction of cut metal ceiling tiles with walls, partitions, or upstands. These trims are equipped with a built in channel to accommodate standard hold down wedges for securing cut tiles. They can be pre-curved for optimal fit on both concave and convex walls, and can also be custom formed into column rings.

Specification

• Supplied in standard 3000mm lengths.
• Standard RAL colour of 9010.

• Extruded from architectural grade aluminium alloy to BS1474.

• Extruded from T6 internal grade aluminium.
• Other colours on request please email.
• Profiles can be curved.

• Wedge length not supplied.
