D-Type Door Frame Channel Casing Reveal Trims

D-Type Door Frame Casing Reveal Trims are essential for achieving a precise recess channel feature between drywall and plaster board inconjuction with timber or aluminium style frame door leaf casings, window reveals and upcoming trends such as stairway cases are also a use of this profile. made of high-quality interior grade aluminium metal alloy, these trims provide a professional finish to any project requiring a box channel type shadow gap style light effect reveal.

Frame Casing Trims Specification

• Supplied in 3000mm lengths.

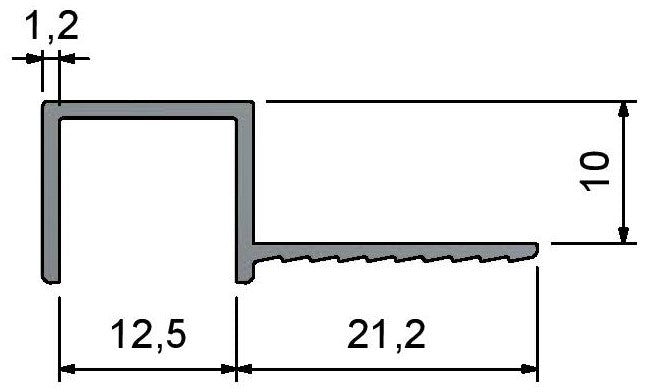

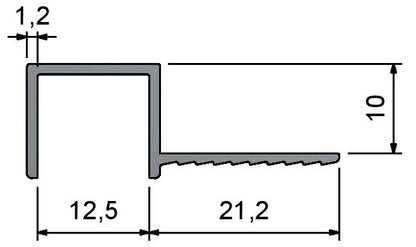

• 12.5mm or 25mm reveal options.
• Durable RAL9010 white colour powder coated.

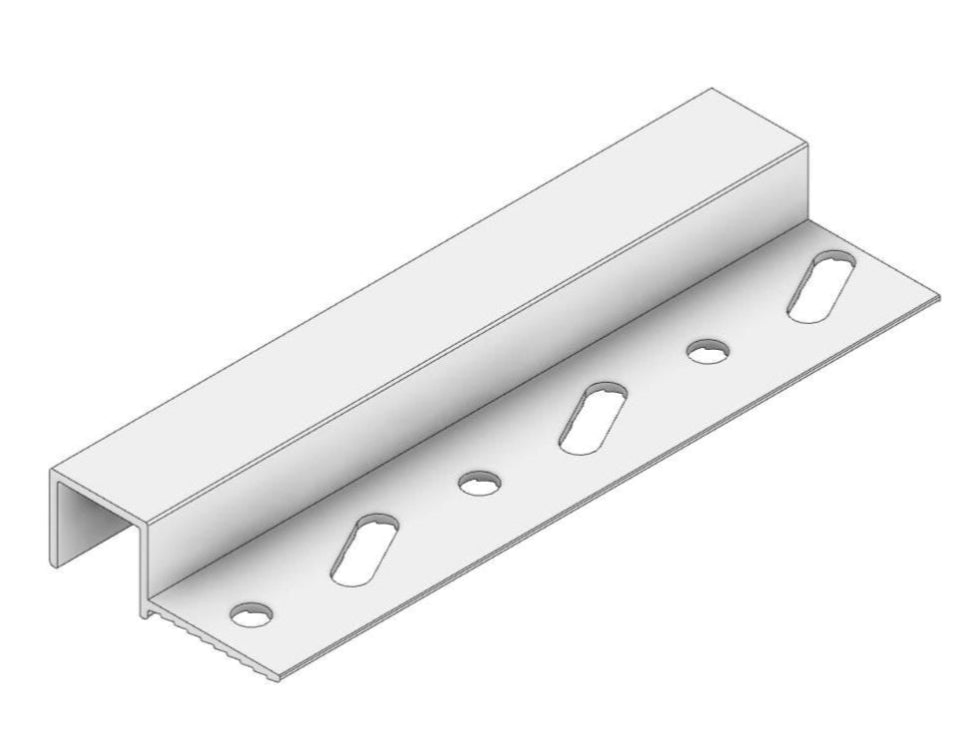

• Pre-punched with diagonal fixing slots and holes in the plastering fin.
• Suitable for fixing drywall screws mecanical fixings.
• Extruded from T6 architectural grade aluminium alloy to BS1474

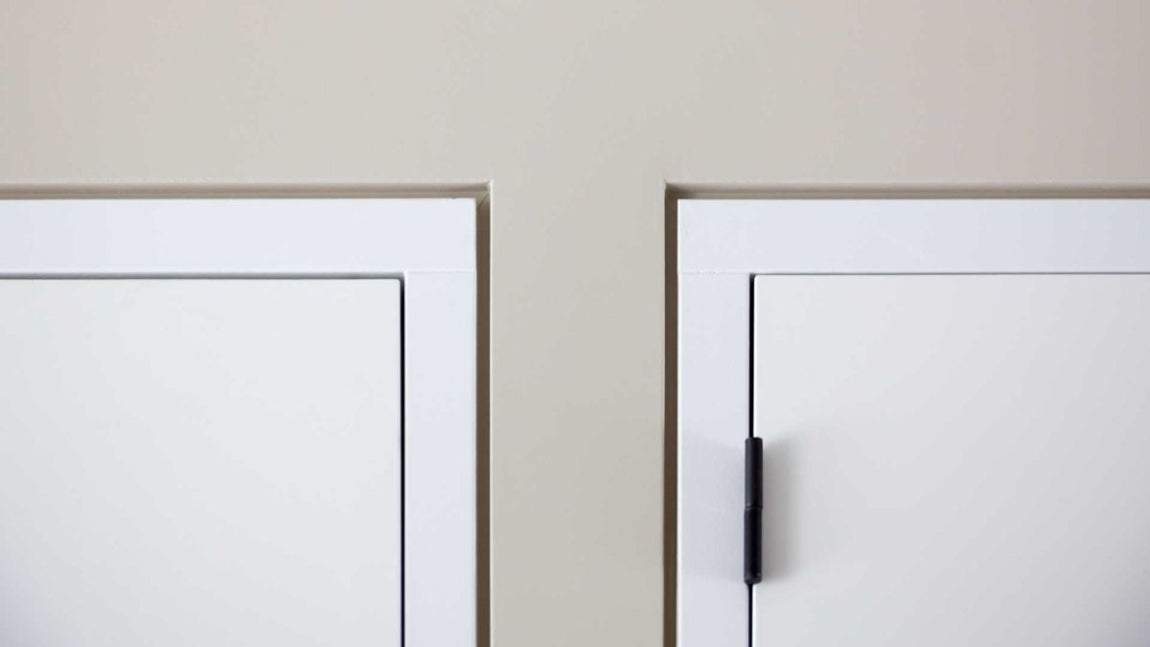

Door Frame Casing Reveal Trim Example

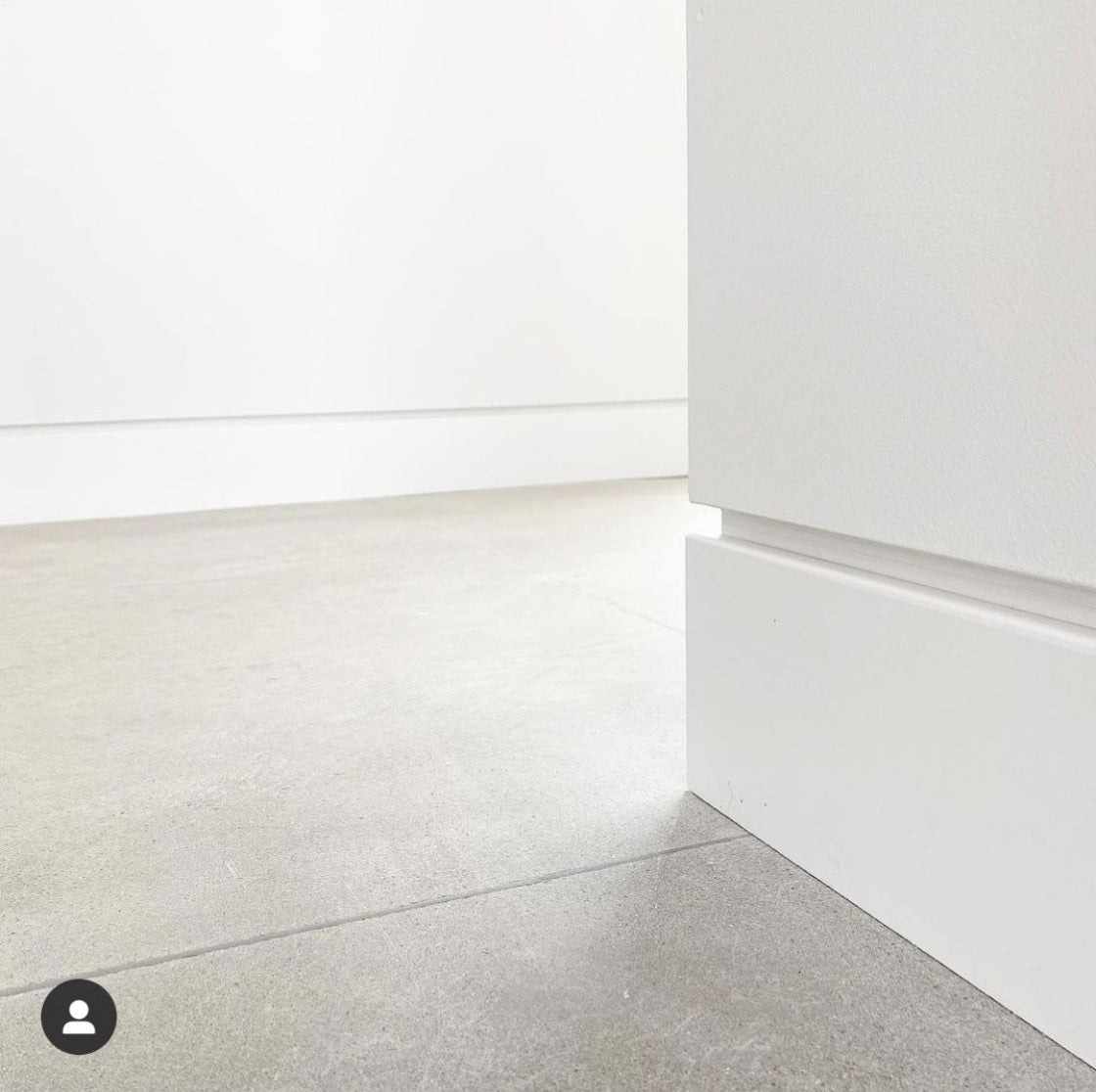

Below example is shows a D-type profiles used from 12.5mm plasterboard abuted against a timber door frame, growing trends have seen these profiles used in stair well applications as well as above MDF skirting to create flush looks.
