Wall Reveal Trims

When paired with gypsum plasterboard, R-Type Shadow Line Gap Reveal Trims offer versatile solutions for creating both horizontal and vertical design features. These high-precision trims are ideal for use in suspended perimeter ceilings, where they help define clean edges and subtle shadow effects. Their adaptability extends to installations around timber, wood, or aluminium door frames, as well as above or below MDF floor skirting, window frames, and stairways. By incorporating these trims, professionals can achieve refined architectural detailing that enhances natural light distribution and adds depth to interior spaces, elevating the overall aesthetic with minimalist yet impactful lines.

Specification

  • Suitable for 12.5mm plasterboard.
  • For 15mm boards see >>> RD Type
  • Supplied in standard 3000mm lengths
  • Standard & durable colour powdercoating - RAL 9010 White.

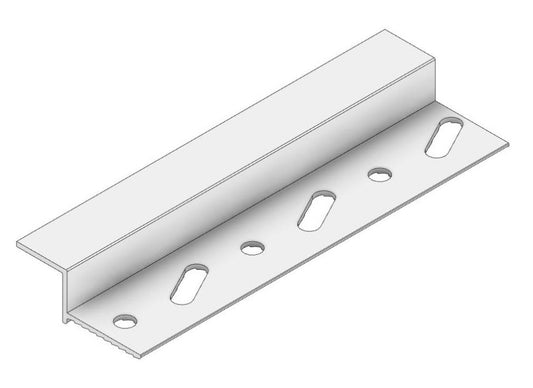

  • Punched flange for easy fixing.
  • Feathered edging for tape and joining.
  • Extruded from architectural grade aluminium T6 alloy to BS1474
  • Larger sizes can dual as recessed base skirting reveals see >>> ST Type
  • Ideal for internal use applications
  • R30 & R40 SIZES HAVE EXTENDED LEADS

Reveal Trim Example

Shown below using a steel stud and plasterboard fix butting up to a Timber door frame prior wet trade plastering.

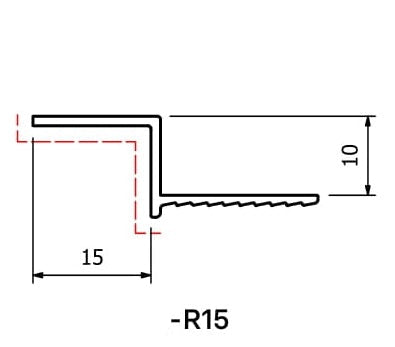

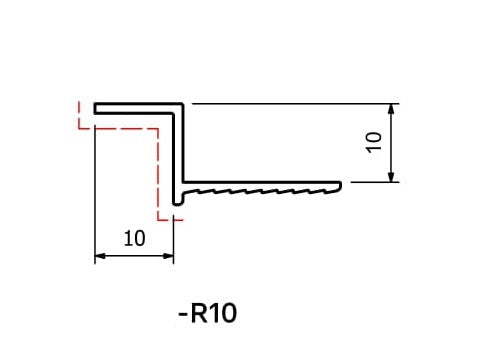

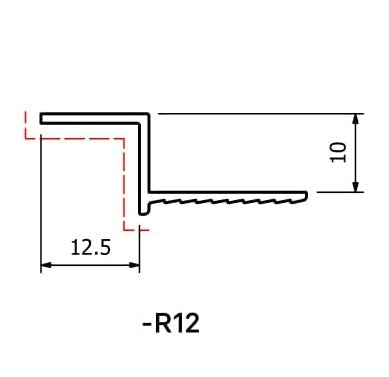

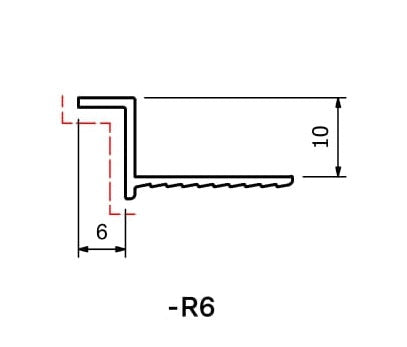

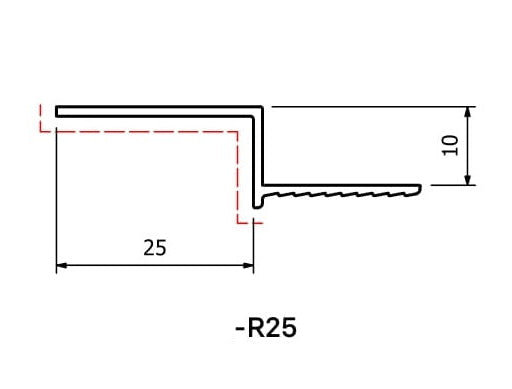

Reveal Trims Dimensions

R-Style ranges from 6mm to 40mm reveal / shadow gap detail using 12.5mm plasteboard, >>> RD-Style trim is designed for 15mm plasterboard details.
