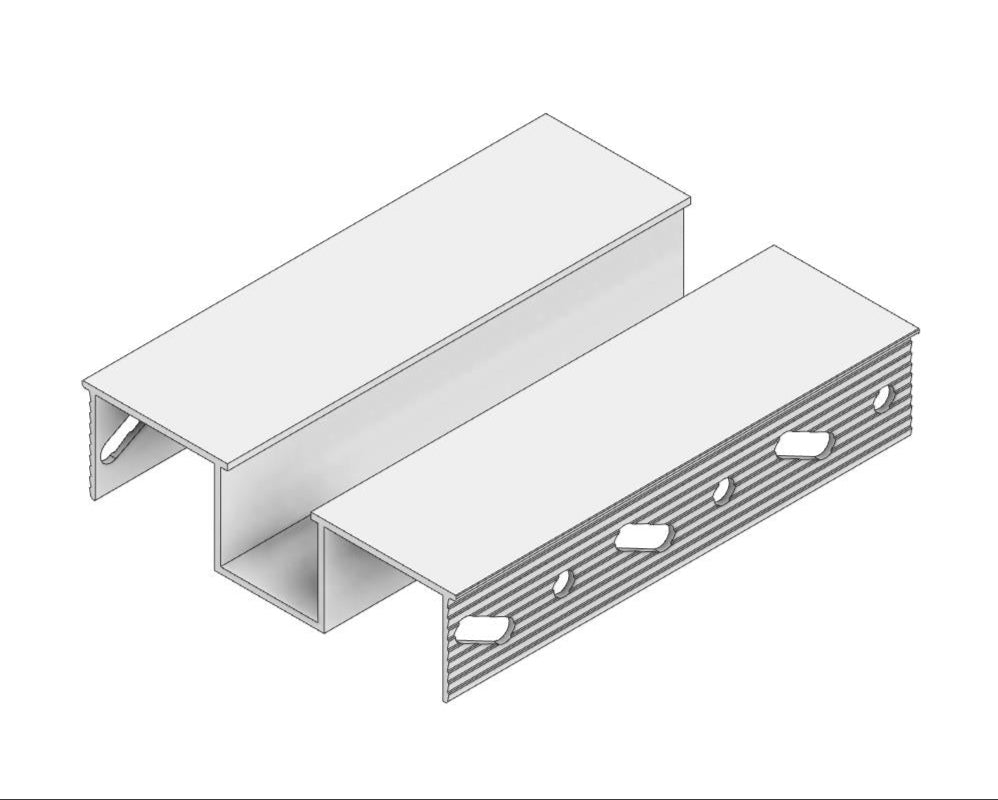

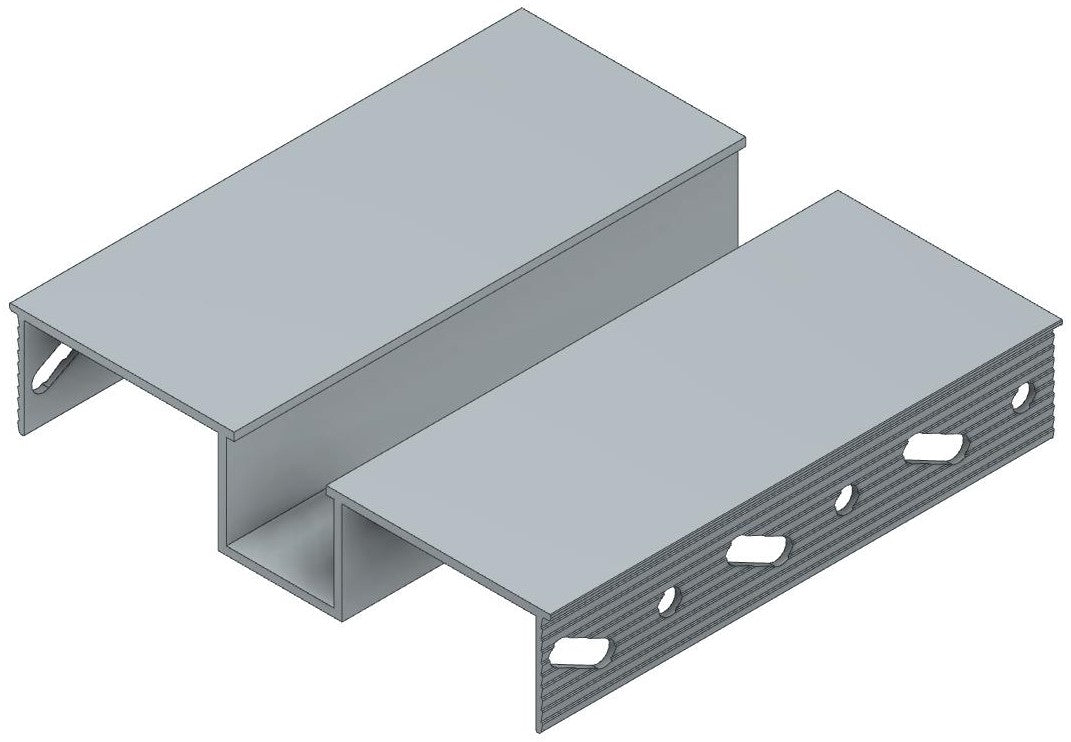

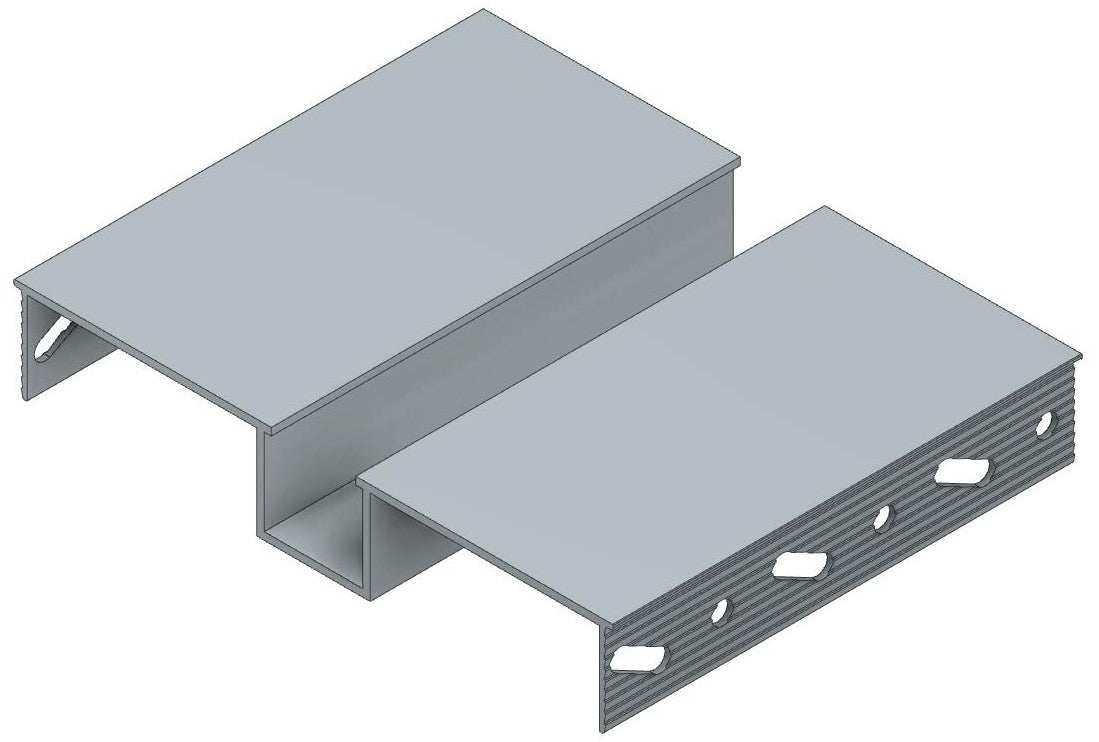

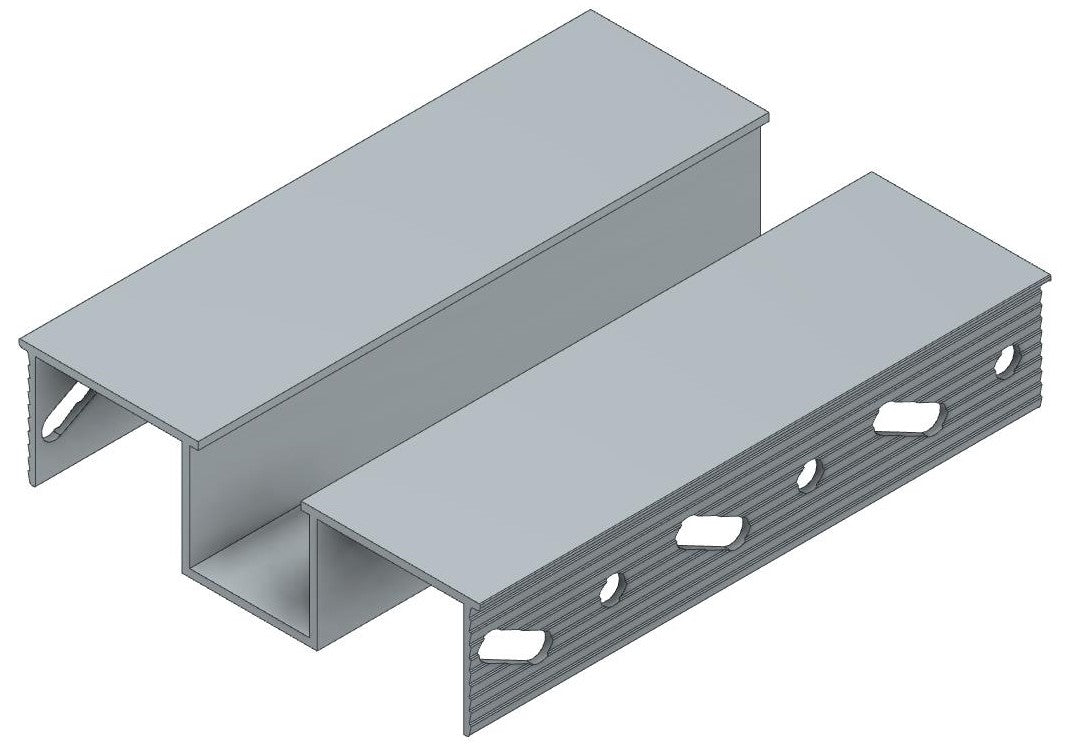

Drywall - Flush Glazing Adaptors

Crafted specifically for glass partitions and glass screens in wall installation, this premium drywall glazing channel adaptor is ideal for flush glazing. Its durable construction allows for precise glass positioning prior to gasket installation, making it a popular choice for shower rooms and discreet glazing applications such as stair well wine displays racks and cellar  screen applications, often utilizing silicone fixing but can also use gaskets in conjustion with ironmongery options.

Specification

• Flush finish applications - walls / ceilings / floors
• Supplied -  3000mm Lengths.
• Maximum 17mm panel cavity width.
• Maximum 20mm panel cavity depth.

• Stocked in RAL 9010 white.
• Durable powder costing.
• Tape & joint feather edge ( plastering )
• Engineered from T6 Internal architectural grade aluminium.

• Dry glazing gasket optional 10 -12mm glass
• Can be be glazed via several methods ( see example )
• Glazing profile range

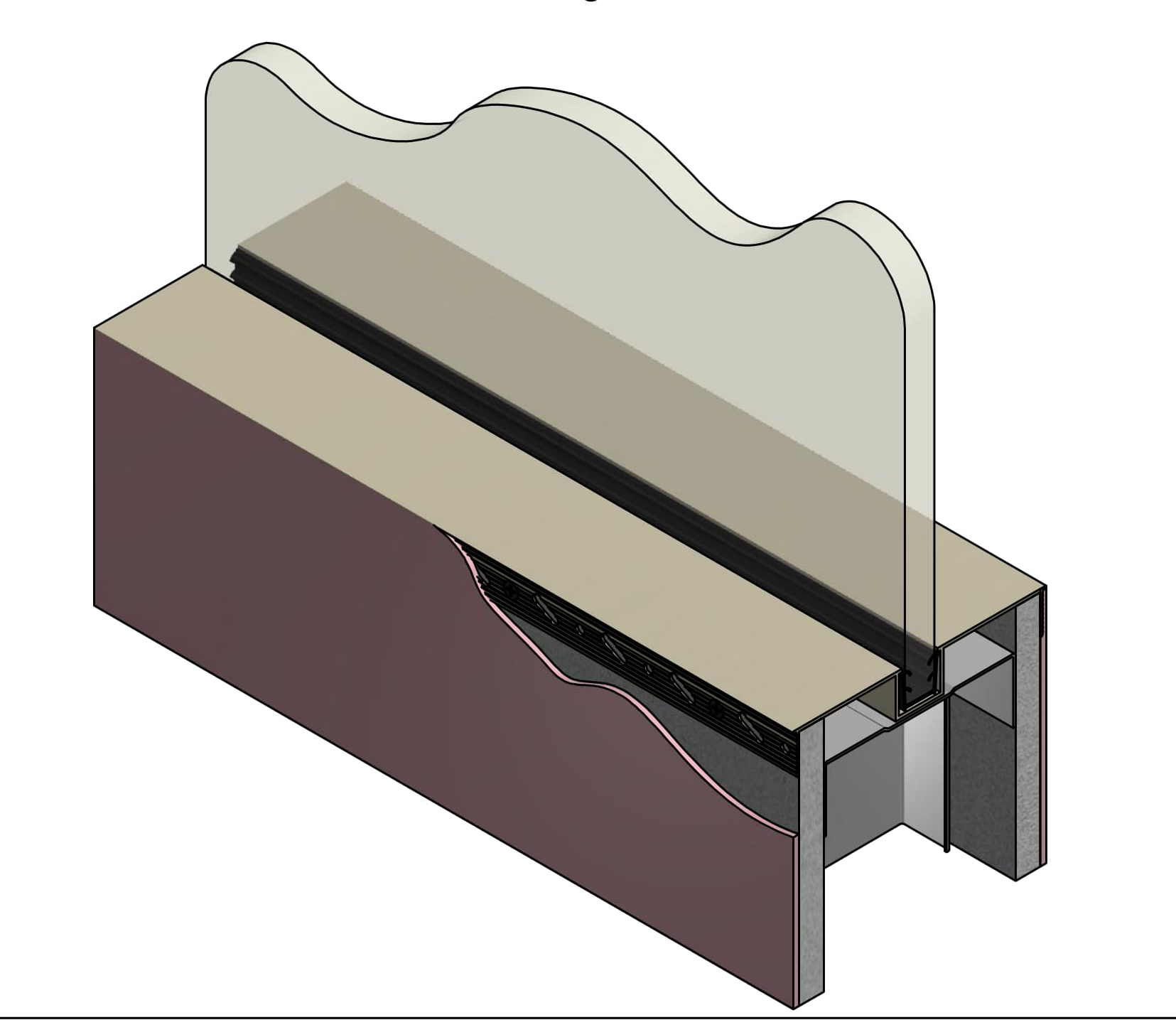

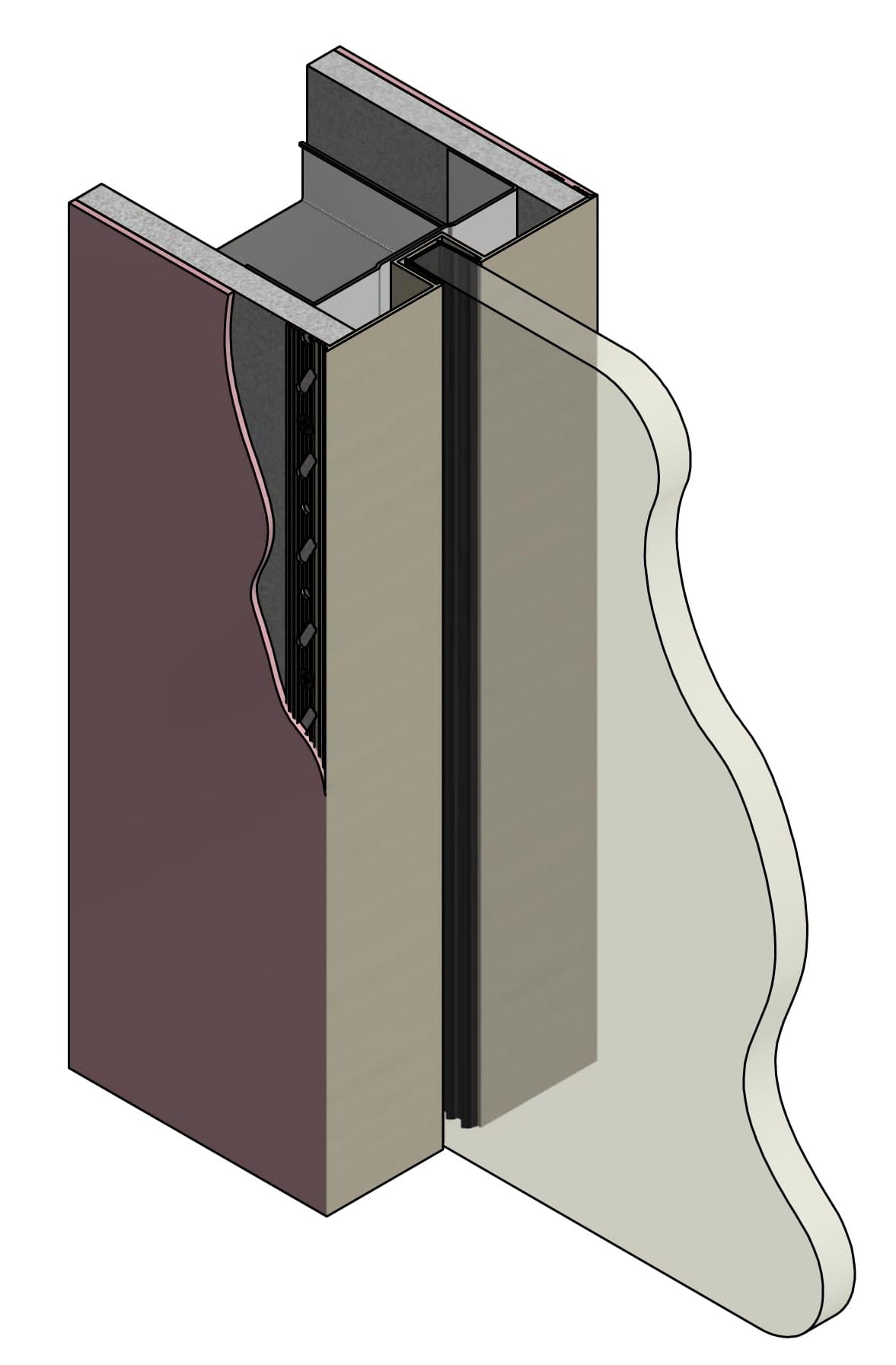

Flush Glazing Aluminium U Channel Example

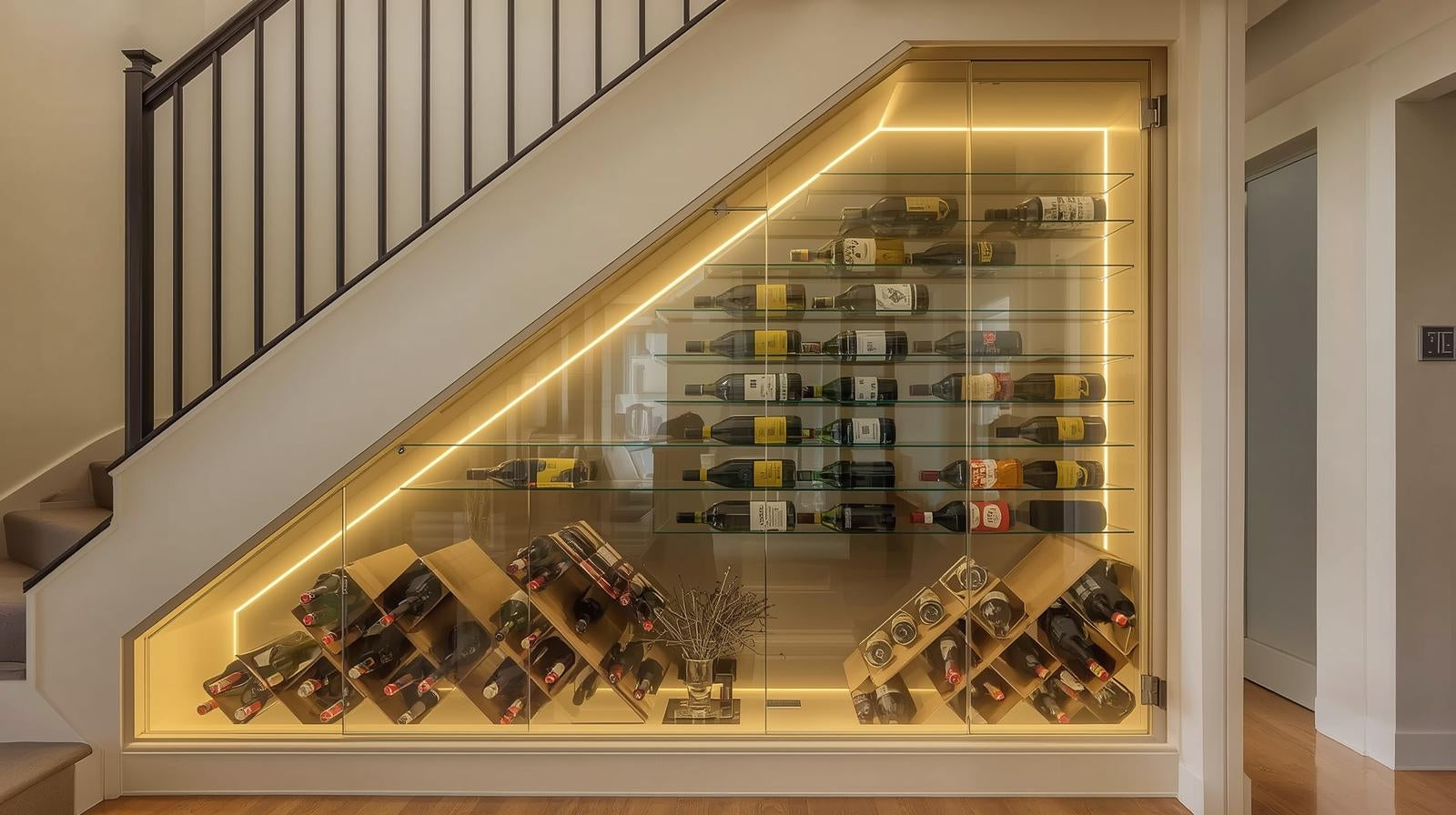

Below example shows glass inserted into the channel gasket as a pre installed option to allow the glazing panel to be inserted, clerance for shuffle glazing is to be considered when using this method, growing trend such as wine displays are now encorerating these profiles to hide any track work.
