E-Type Flexible Curving Edge Bead Trims

E-Type Flexible Curving Edge Bead Trims - are designed to form smooth horizontal or vertical curves on drylining plasterboard edges or to create any curved or arched feature. Suitable for both walls and ceilings such as island creation, these flexible trims work seamlessly with gypsum boarding, steel SFS framing, or wooden studding frameworks to create precise radius clean edge details. They are ideal for use in suspended ceilings, door and window frames recessing, tile edges, as well as shadow line or reveal edging and various other plasterboard and drywall projects.

Specification

• Supplied in standard 3000mm lengths.
• Standard colour RAL 9010 White.

• Punched flange for easy fixing.
• Feather edged for plaster finishing.
• Extruded from architectural grade T6 aluminium alloy to BS1474.

• Flexible for curved or arch detailing.

• Standard Edge Bead >>> E-Type Edge Bead

• Can be curved toe in out on site
• NB: lead time may be extended in busy periods

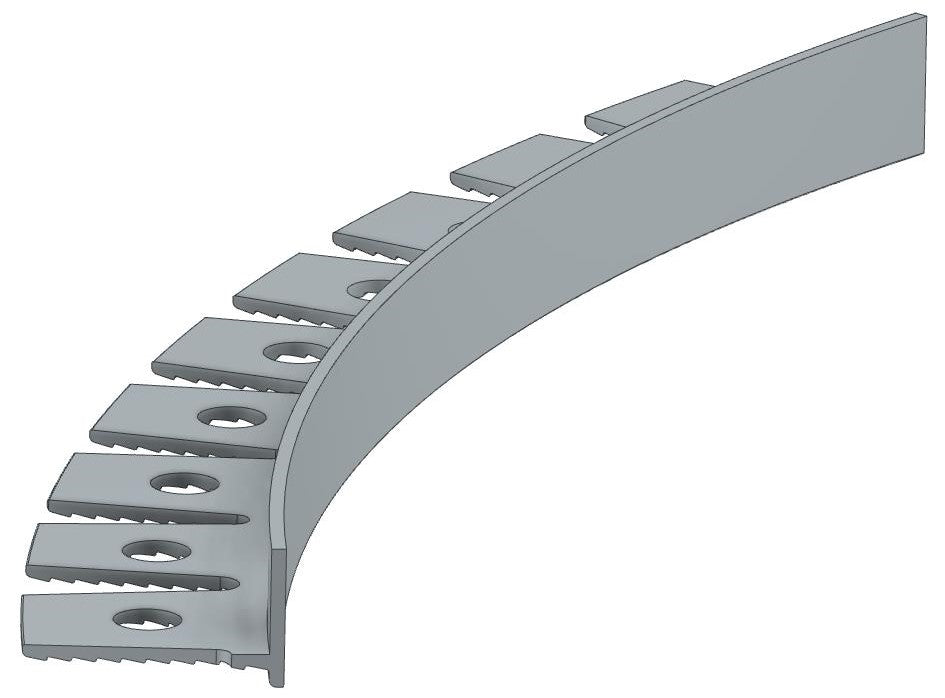

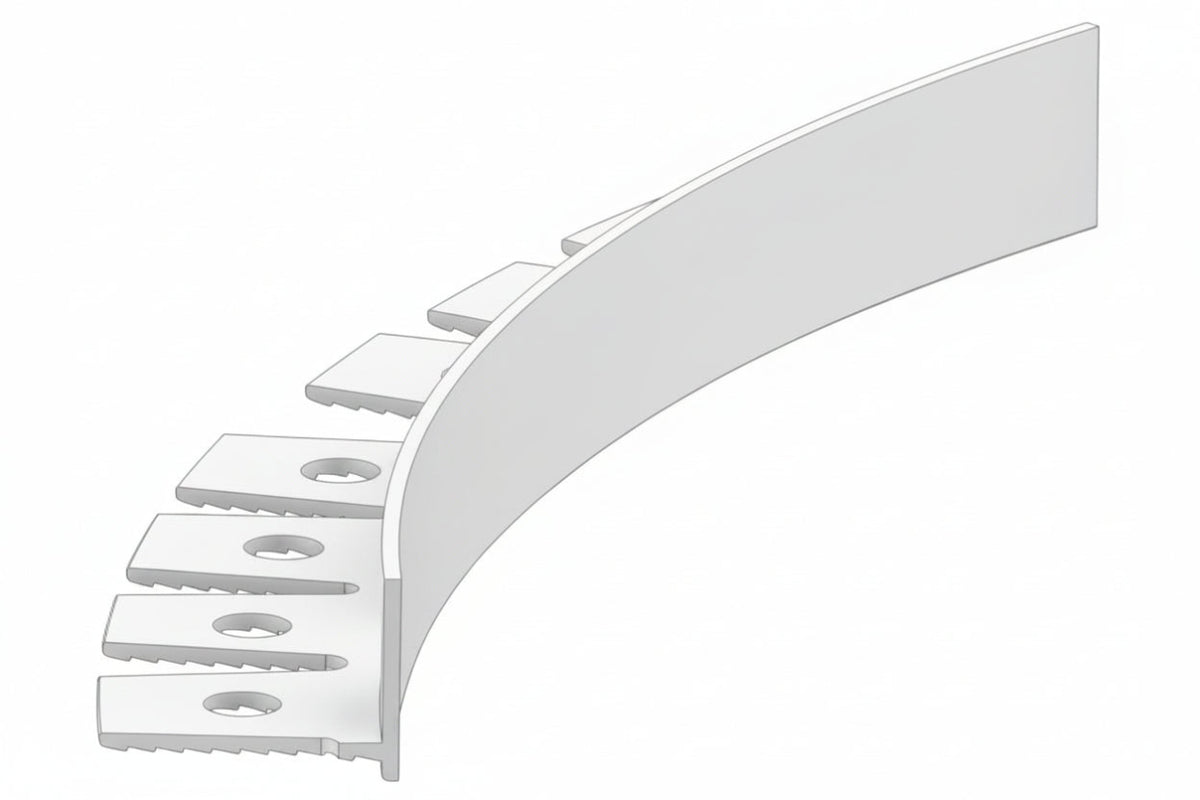

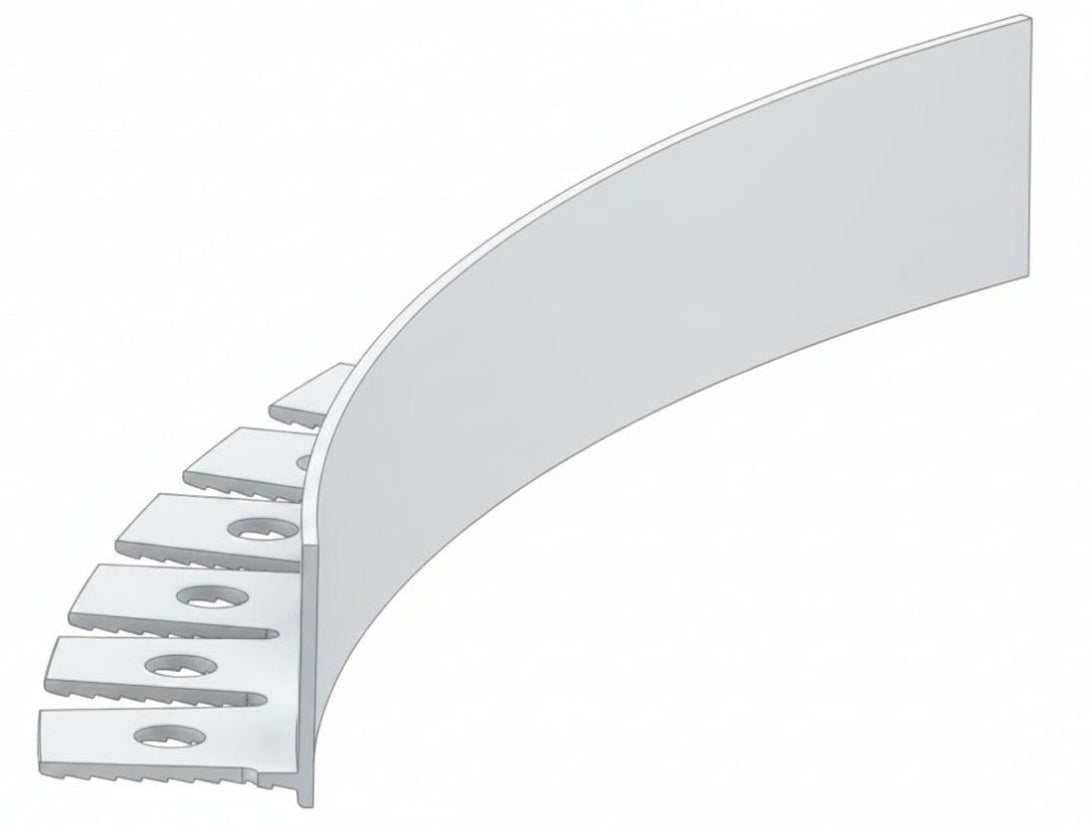

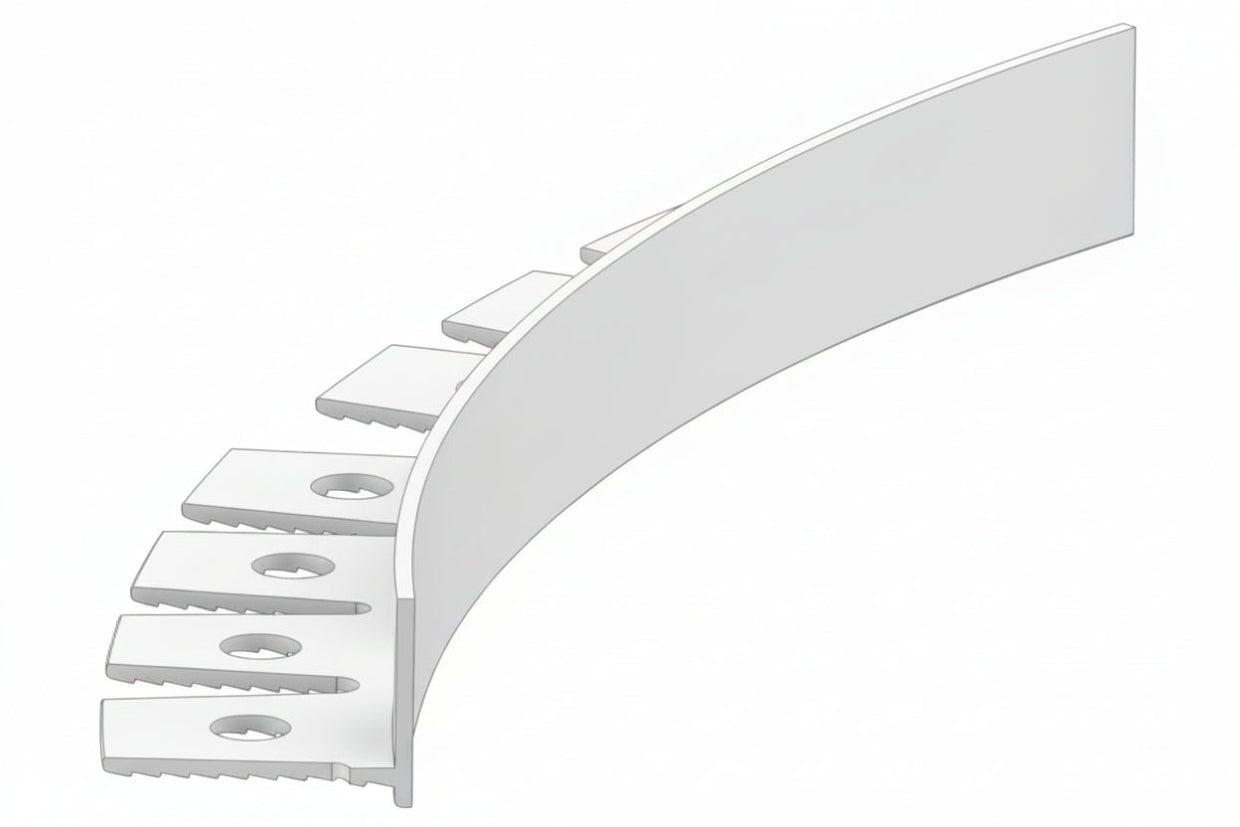

Edge Bead Curving Detail Examples
