GL - Aluminium Partition Glazing Channel Profile Kits

GL - Aluminium Partition Glazing Channel Profile Kits - are expertly engineered for precision installation prior glass insertion projects. please note glass is not supplied.

Key Features

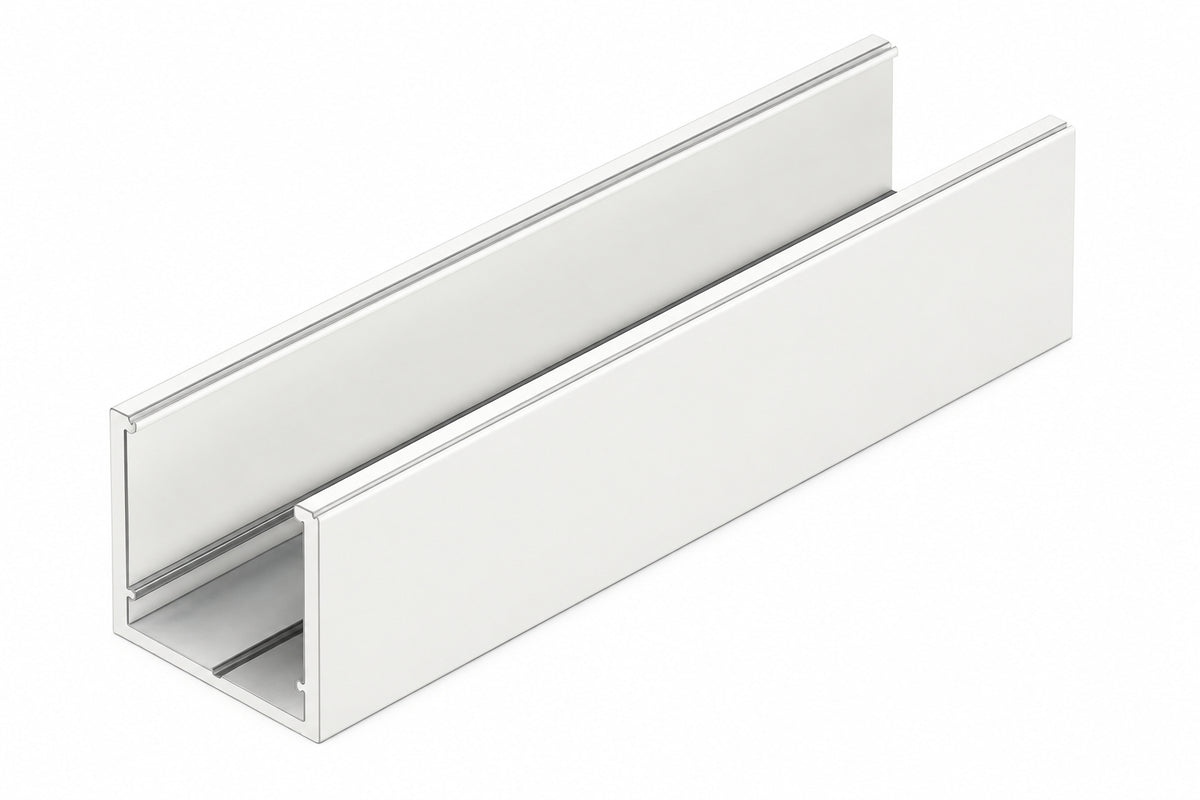

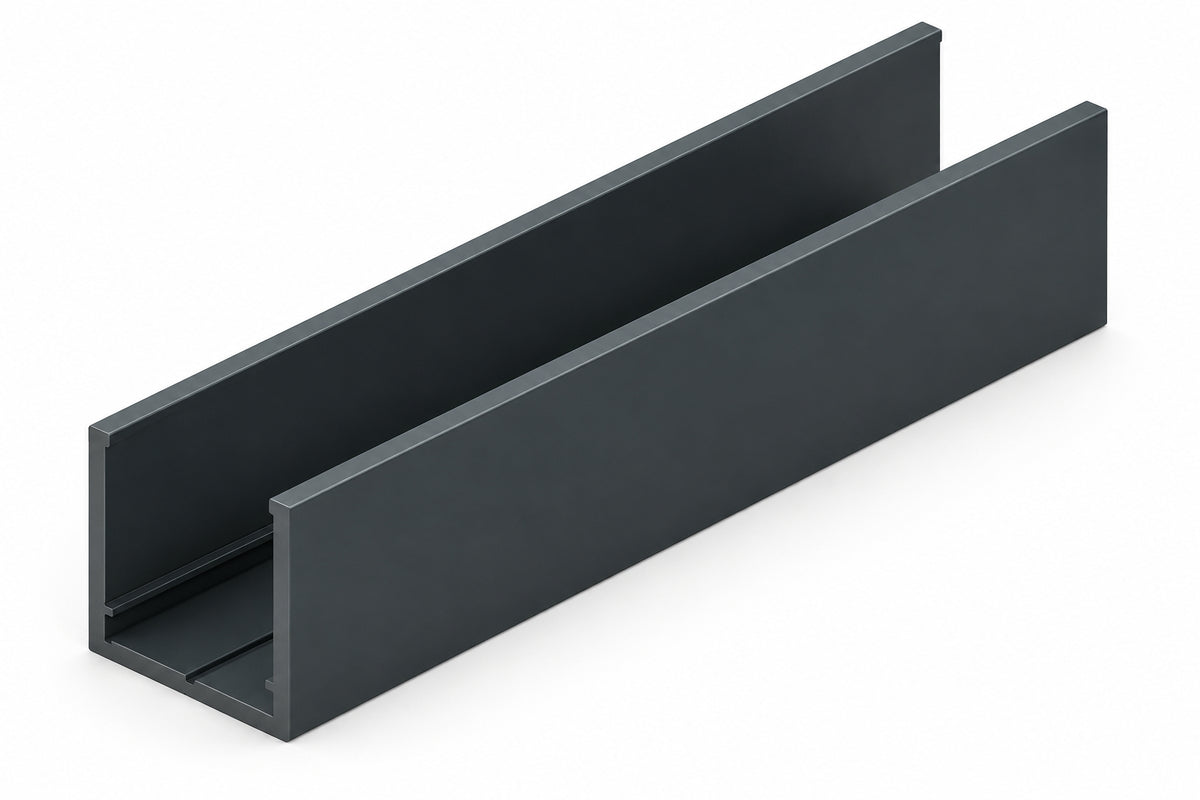

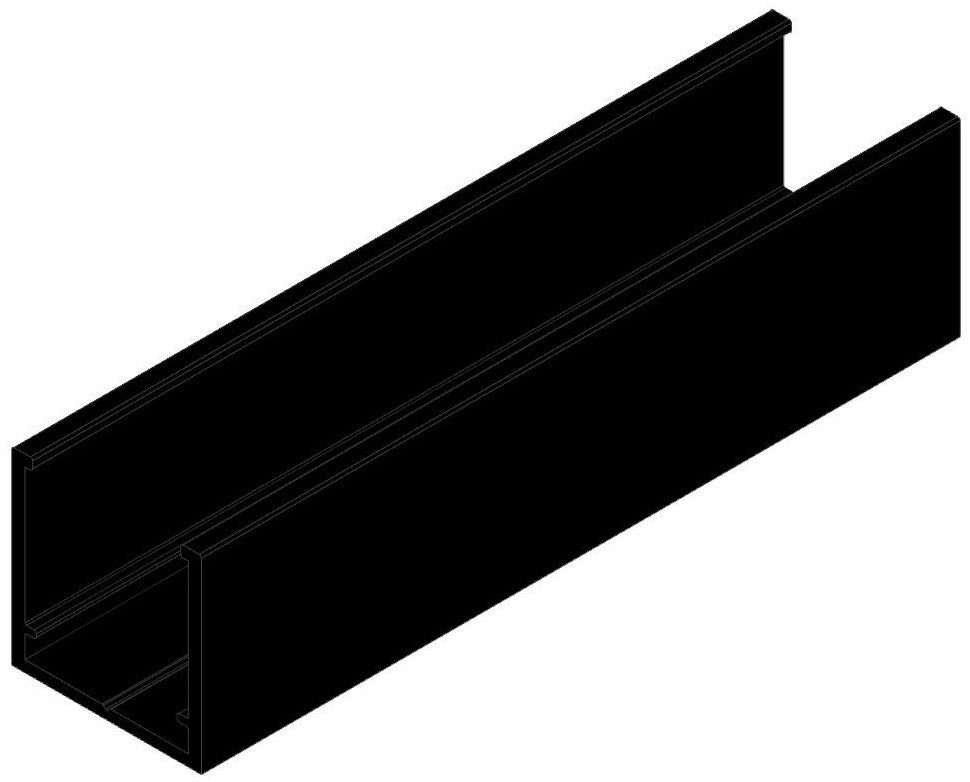

• GL-01 - Single U channel drill and fix - Head/Top/Walls

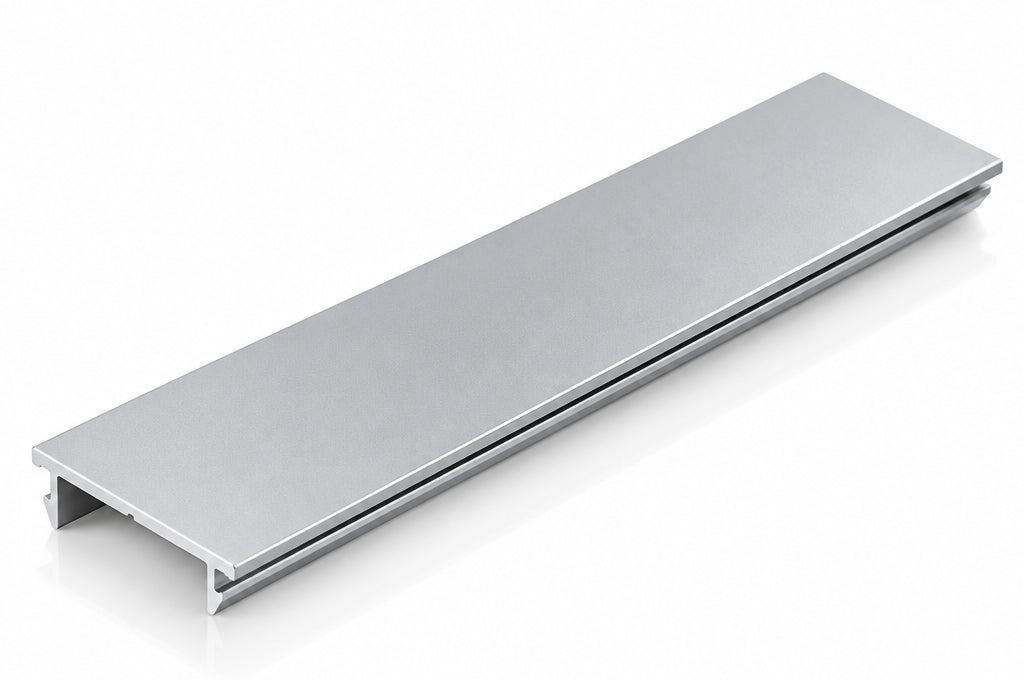

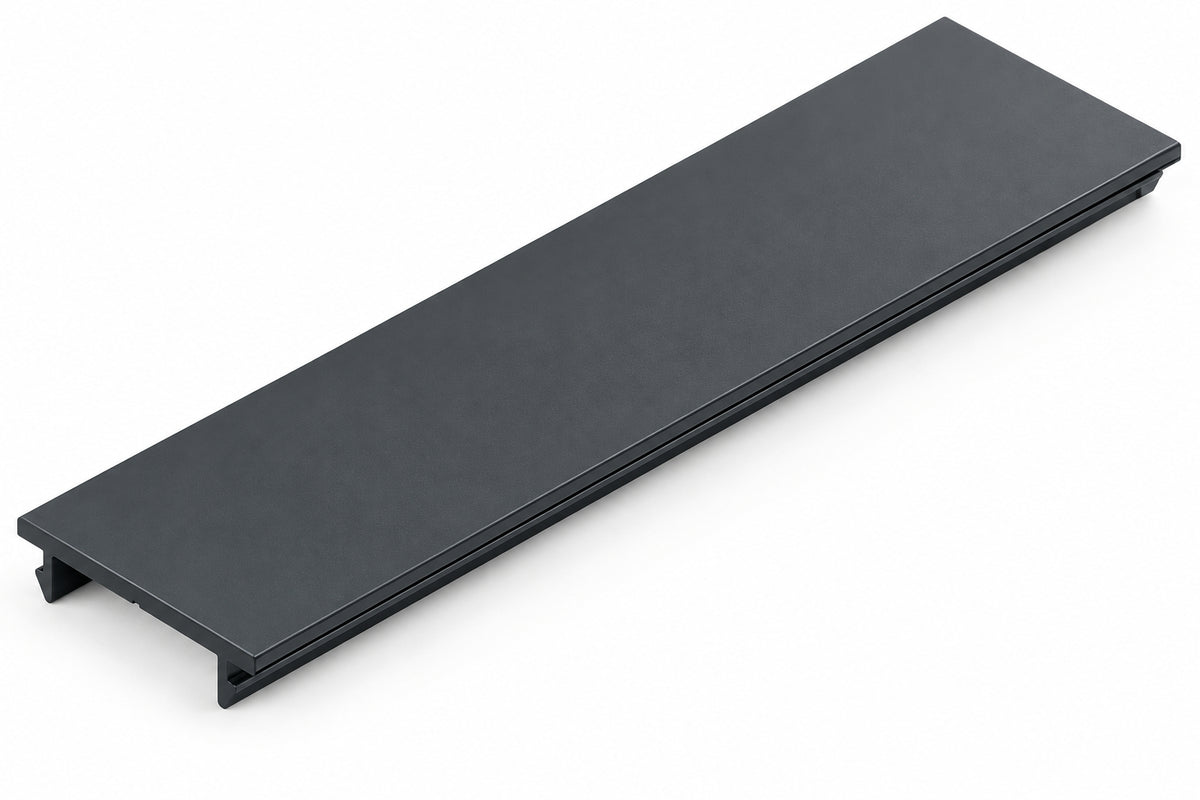

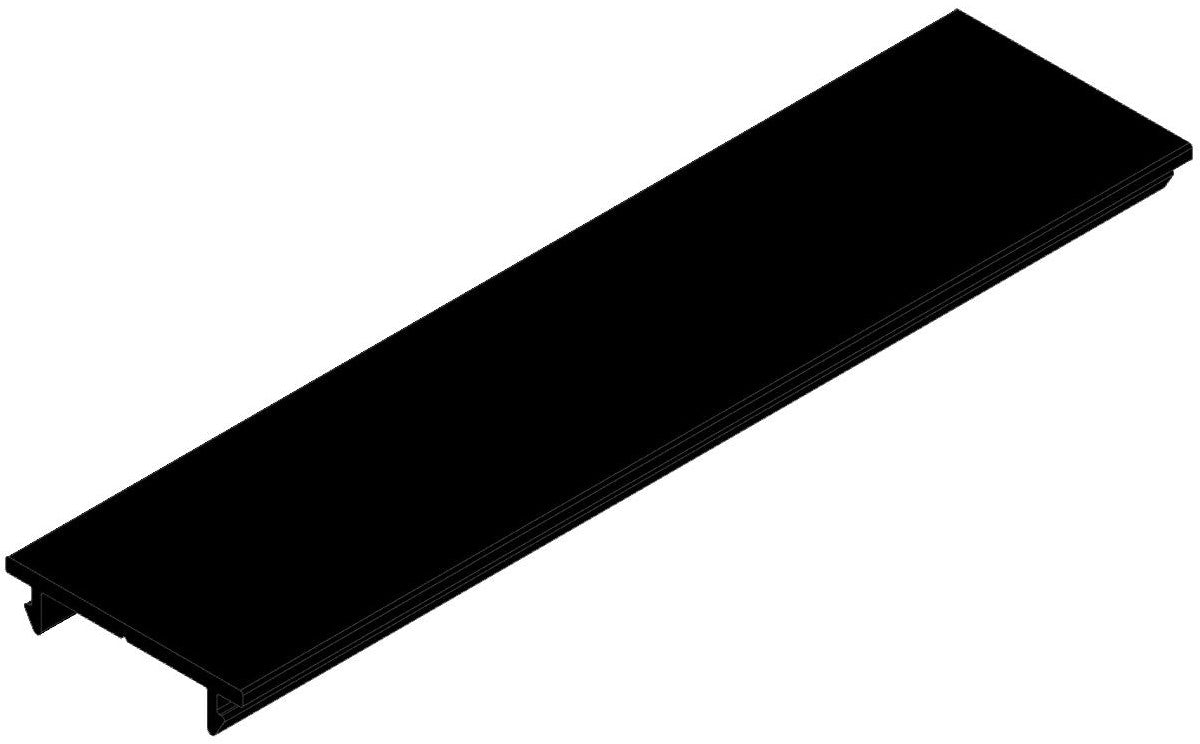

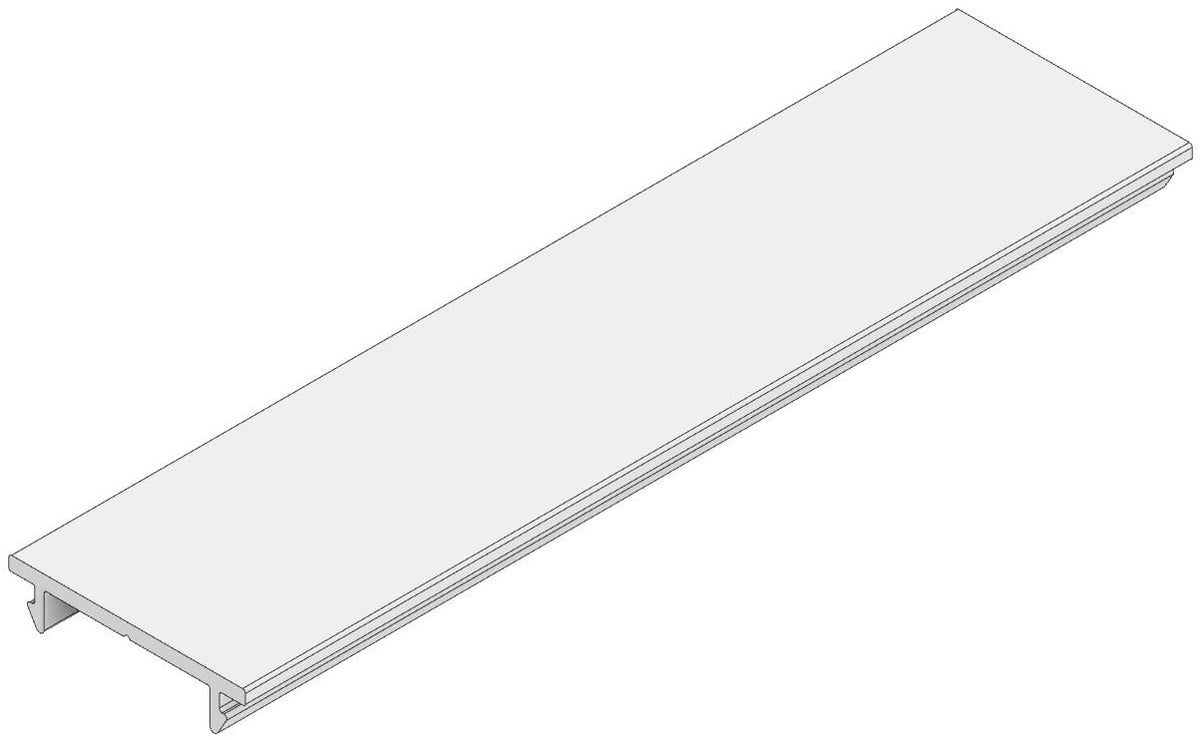

• GL-02 - Blanking plate for capping U channel and patch pivot fixing.

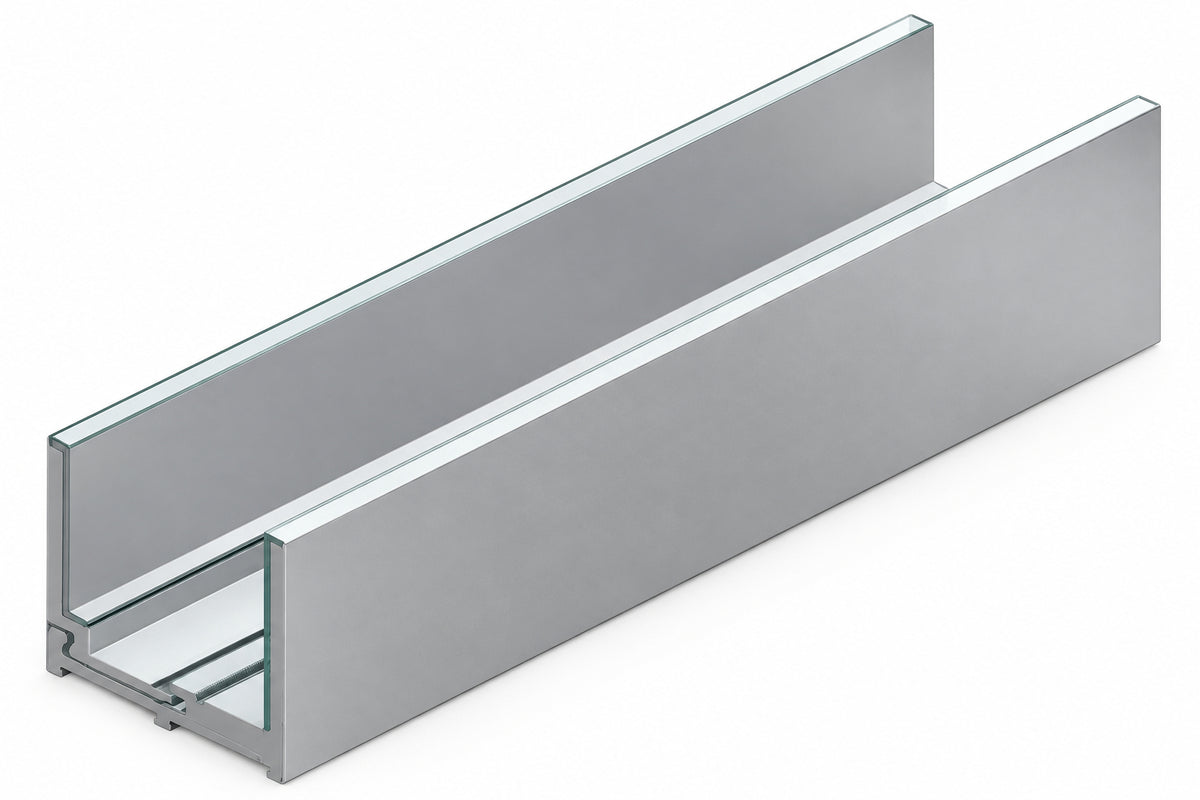

• GL-3/4 - Two part drill and fix walls or floors.
• Stocked in popular colours White / Silver / Grey / Black.
• Durable powder coating.
• Supplied with gaskets - 10 - 12mm Thickness.
• Can be used in shower enviroments as long as exposed edge are sealed.

Specification

• Dimensions - 25 x 25 x 1.75mm x 3000mm lengths.
• Glass panels 10mm or 12mm thickness with supplied gaskets
• Recommended glass covers lips by 12mm.
• Engineered from T6 Internal architectural grade aluminium.

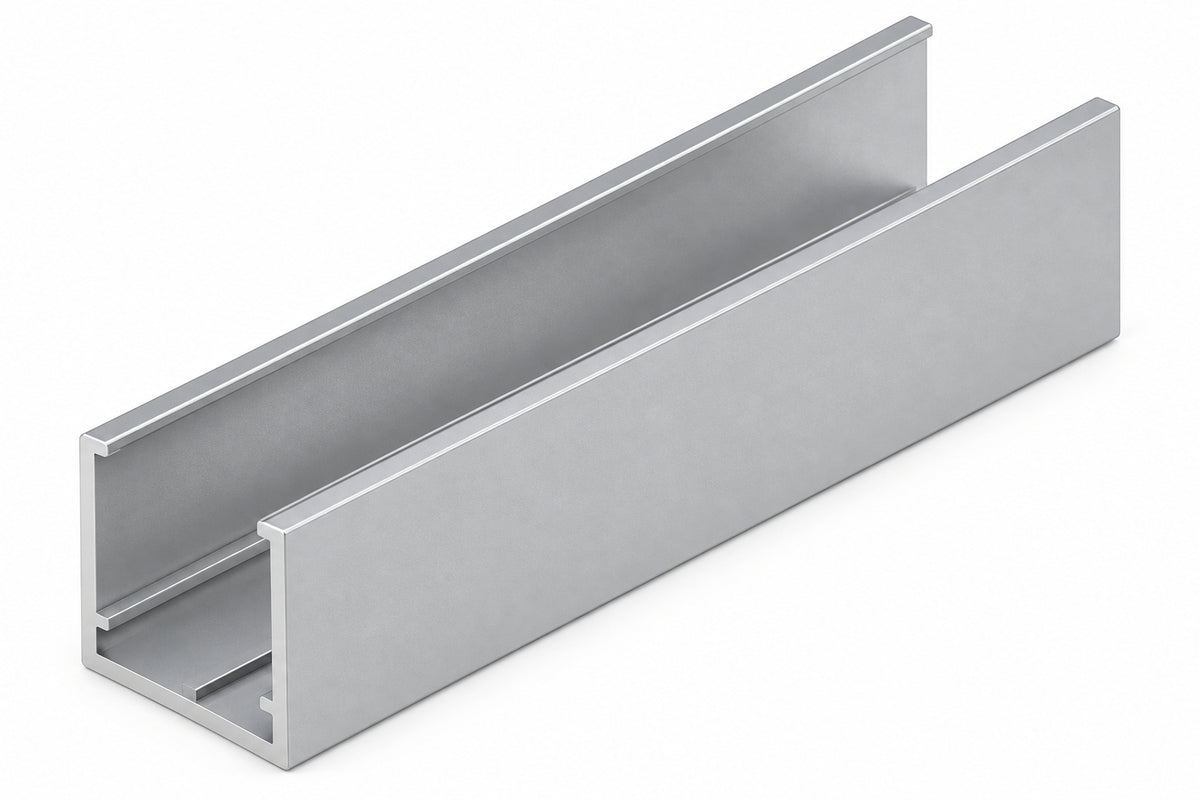

Top / Wall U Channel - GL-01

Below example shows glass inserted into top track, gasket is then simply pushed into place to dry fit either side.

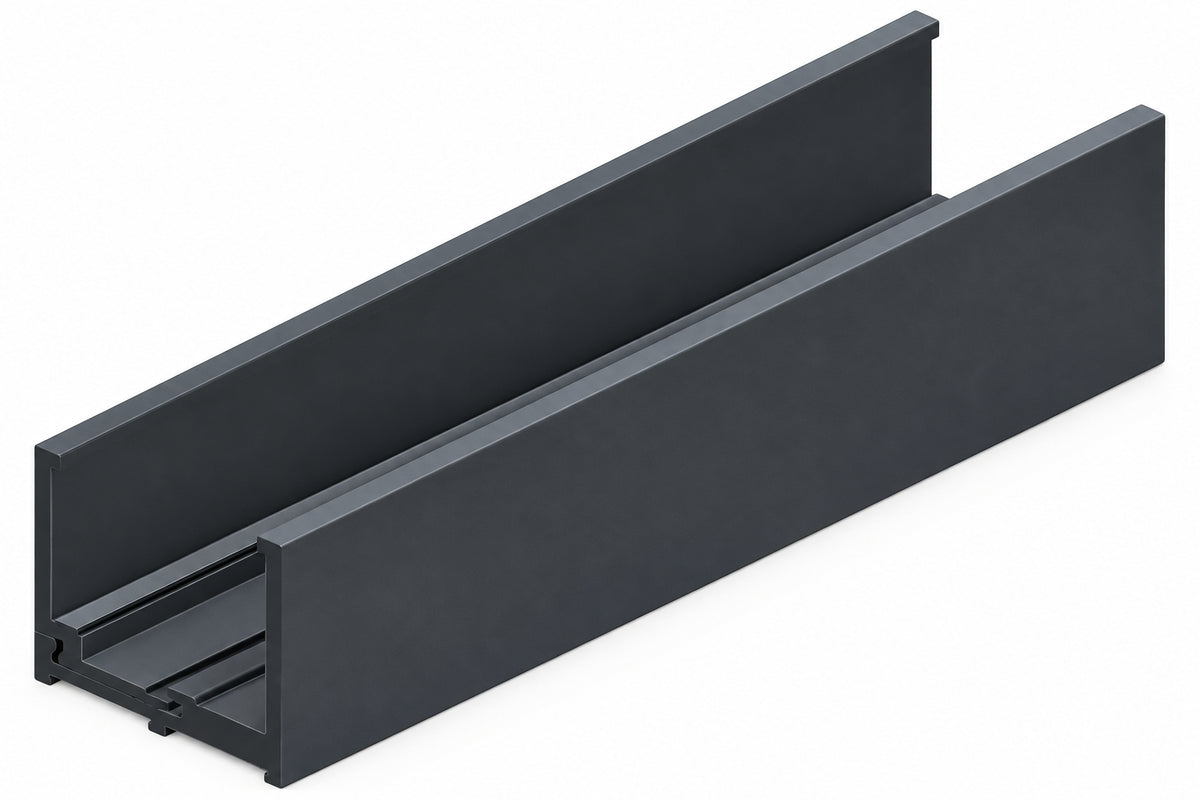

Two Part Base U Channel - GL-3&4

Below example shows glass inserted into base track and glazing bead, gasket is then simply pushed into place to dry fit after glass and glazing bead is inserted, packers recommeded to protect base of glass, screw fixings must not protrude, counter sinking recommended.

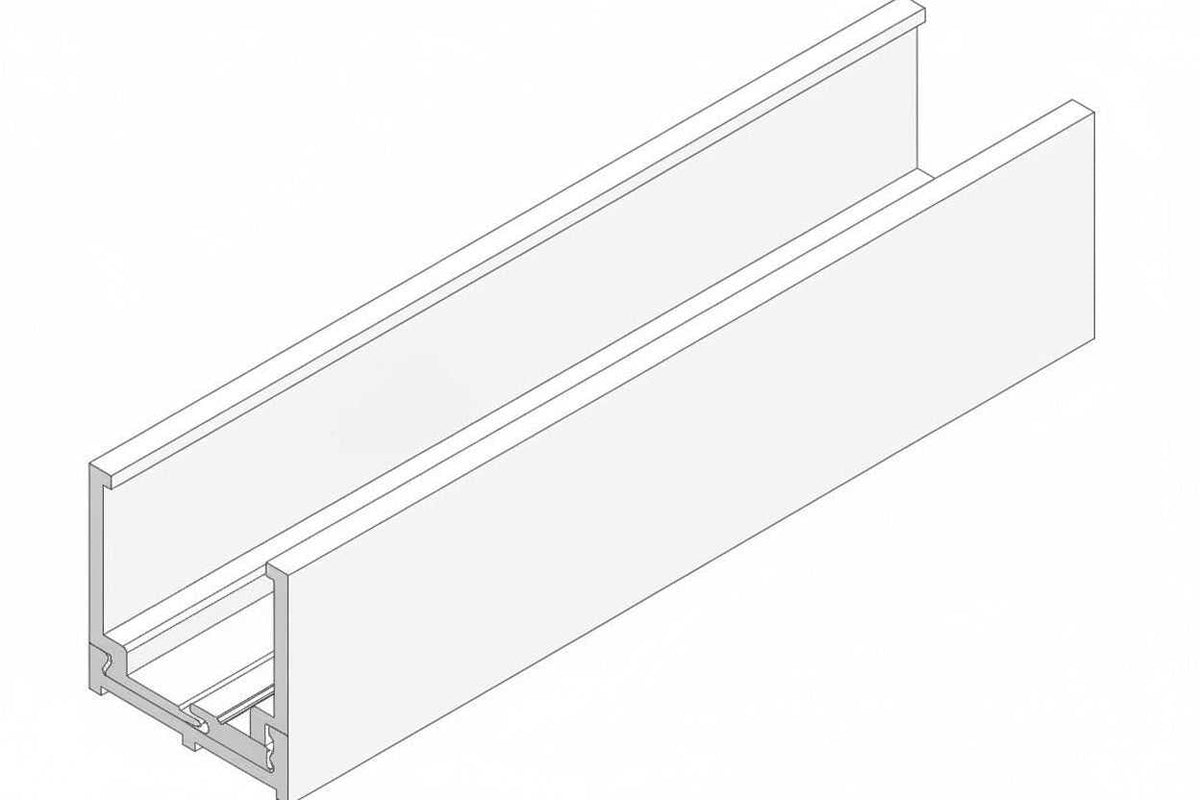

Wall Abutment Glazing U Channel Example -GL-3&4

Below example shows glass inserted into track as an abutment example ( down a wall ) gasket is then simply pushed into fit after glazing bead is inserted, clerance for shuffle glazing to be considered when using this method, screw fixings must not protrude.
