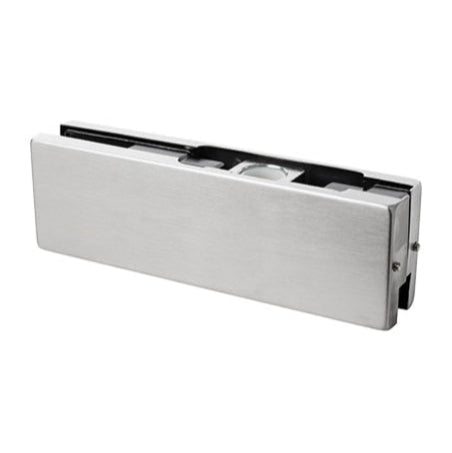

Glass Door Patch Fitting - Top
Glass Door Patch Fitting - Top
Top quality universal top Glass Door Patch Fitting with Dorma over pivot pin connection, designed for single glazed frameless glass doors with removeable bracket covers.
Features:
- Suitable for most market floor springs & pivots
- Includes insert for over closer pivots and patches
- Door load weight - Max 80kg
- Door maxium width - 1000mm

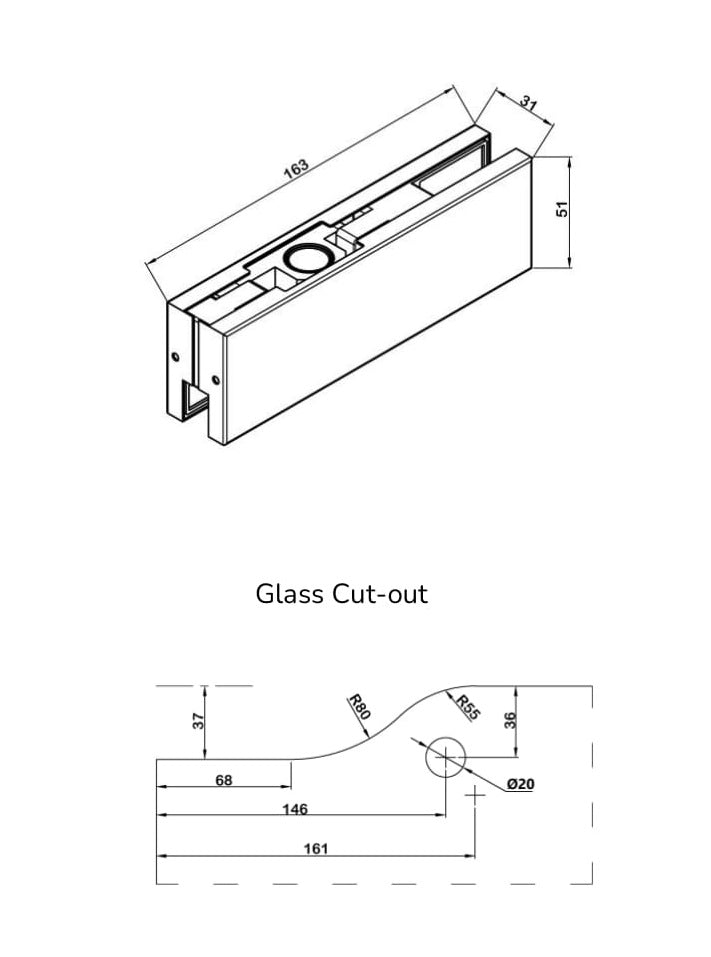

- Size (mm) - L-164 H-51 D-32
- Glass size gaskets (mm) - 10-12mm
- Pivot point (mm) - 53-63
Available Finishes
- SSS - Satin Stainless Steel
- PSS - Polished Stainless Steel

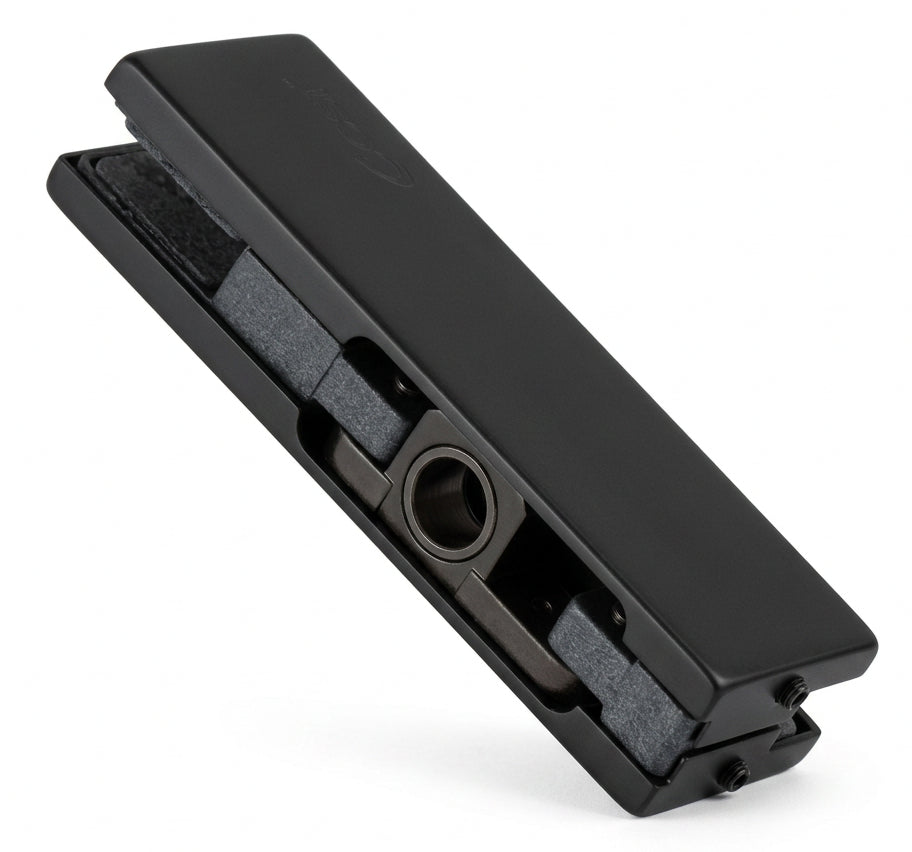

- BLK - Matte Black
