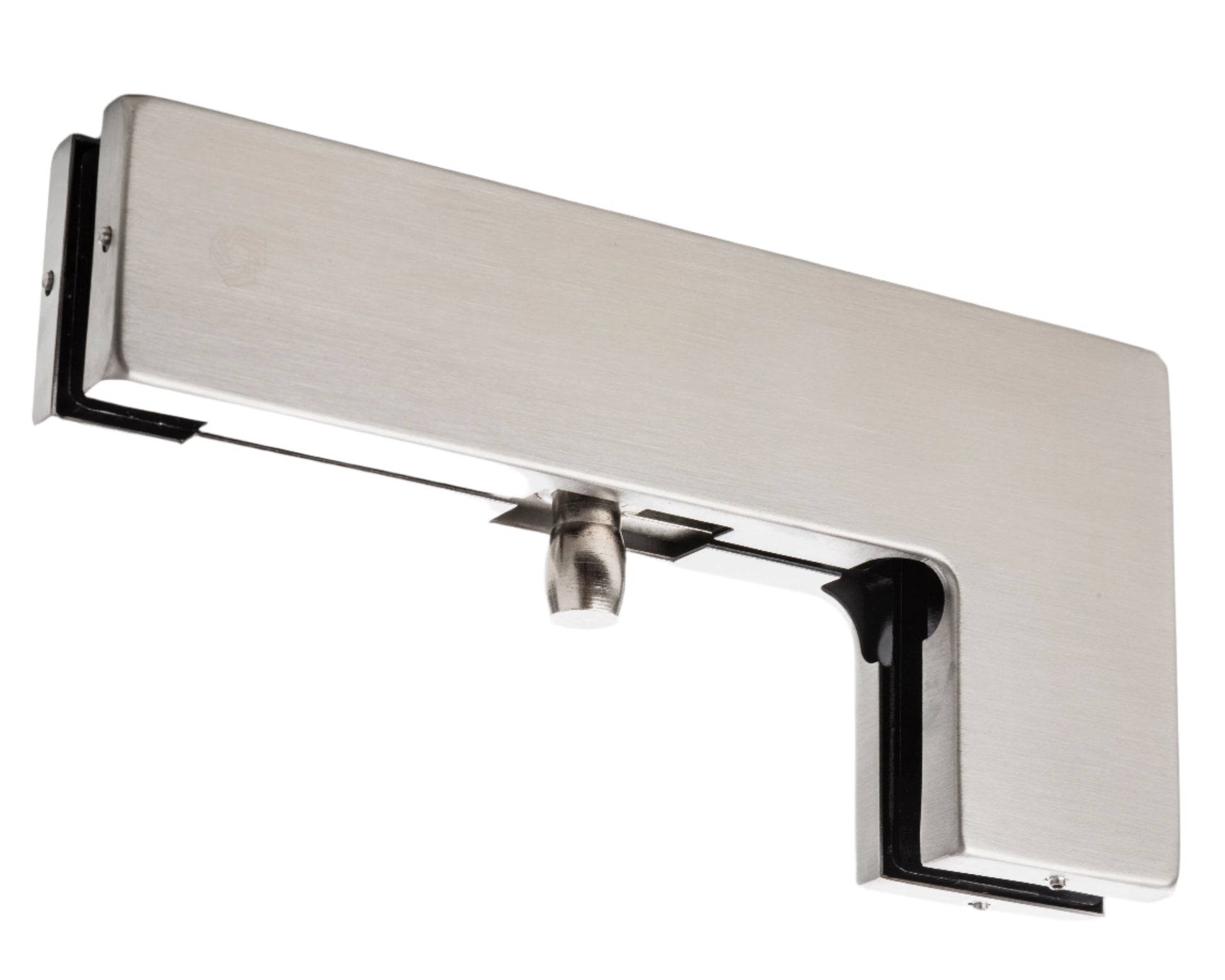

Glass Door Patch Fitting - Top Over Corner

This universal glass door patch fitting is top-quality and designed for single glazed frameless doors. It includes a Dorma style pivot pin connection and removeable bracket covers. Designed for internal doors with glass

Features:

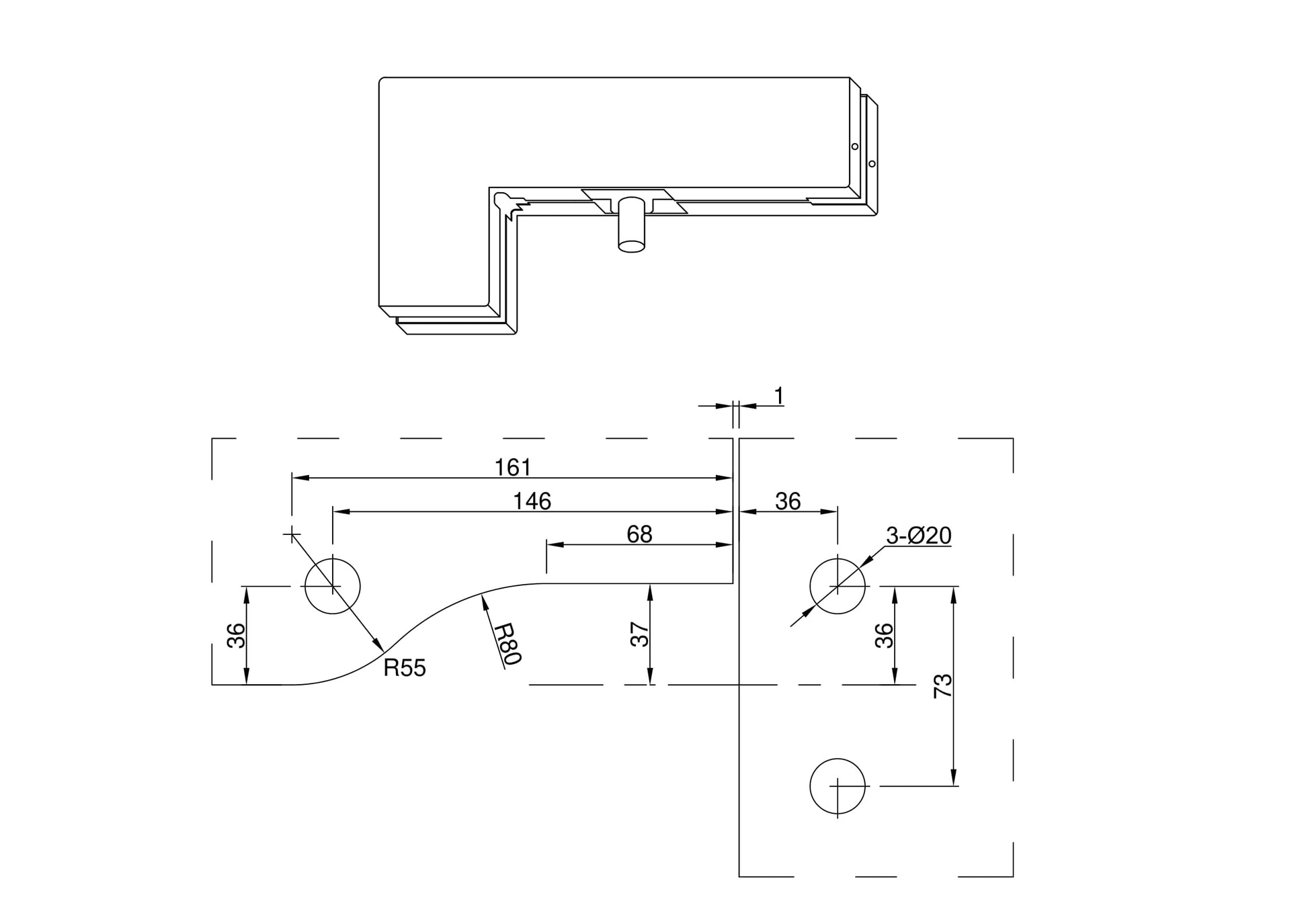

Dimensions 210mm x 107mm
Door load weight - Max 80kg
Door maxium width - 1000mm
Glass size gaskets (mm) - 10-12mm
Pivot point (mm) - 53-63
Pivot Pin Connector 15 mm in Diameter
Covers Quick Release
Used for over panel & side panels in conjunction with top patch on a glass door leaf ( DORMA PT40 Style )
Door Type: Glass Door
