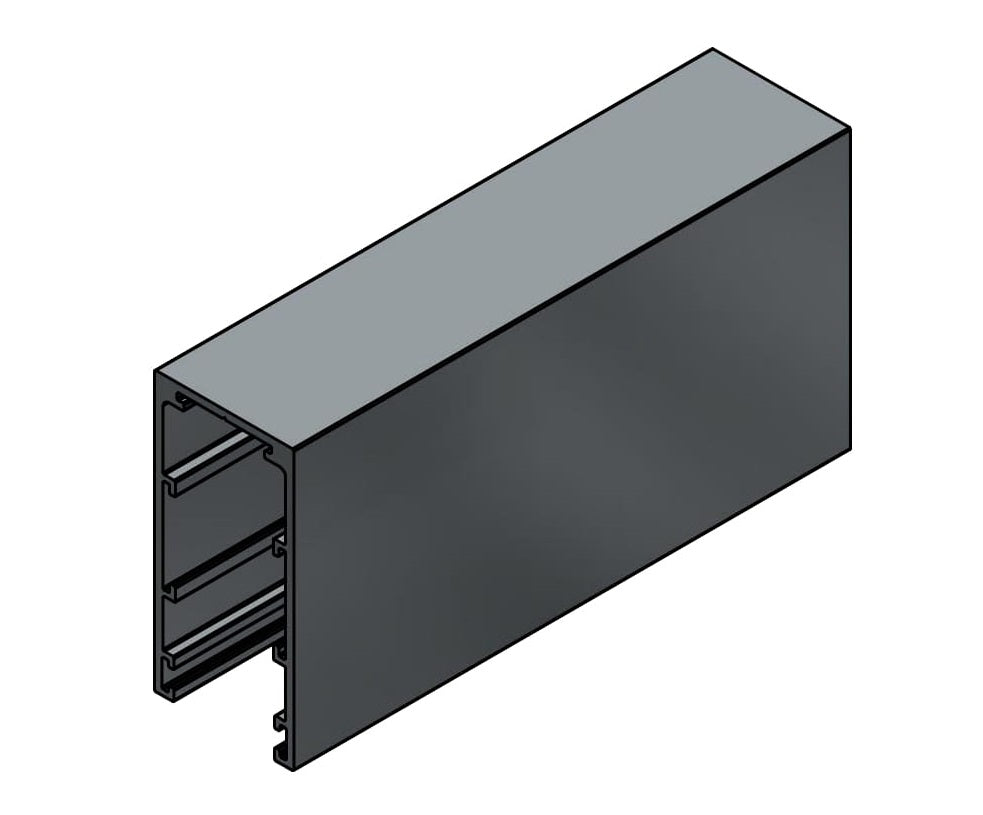

Glass Partitioning Head / Wall Channel - 50x25x3m

Engineered specifically for glass screen partitioning applications, this 30x25x3m aluminium U channel facilitates superior head and wall depth clearance.

The precision-designed profile enables efficient glass panel insertion, allowing for precise adjustment and positioning prior to silicone application or completion with the gasket system for professional installation results.

Specification

• Aluminium channel supplied - 50 x 25 x 3000mm lengths
• 17mm width panel or glass maximum capacity.

• 45mm depth of panel or glass maximum capacity.
• Stocked in 4 popular colours White / Silver / Grey / Black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium.

• Used for standards glass or boards when silicone fixing.
• Some drilling on site maybe required - excludes fixings
• Cleats (optional)
• Brackets & cleats (optional)
• Slide in anti friction gaskets 10-13mm glass sizes.

Please NB: HT50 Channel is supplied with no gaskets or brackets unless selected

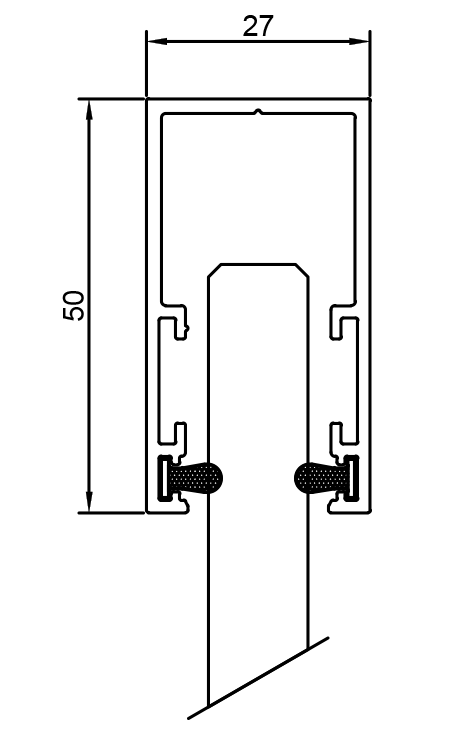

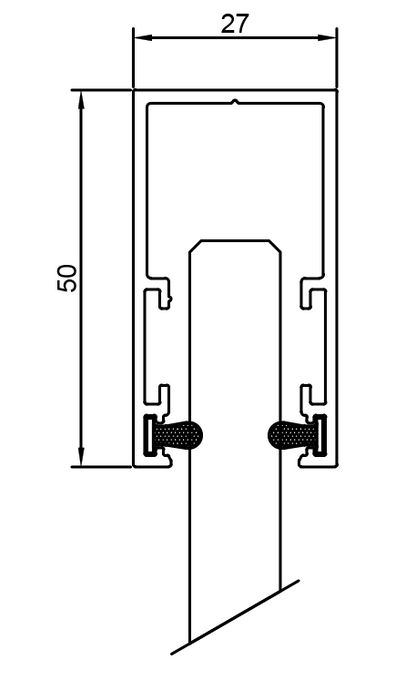

Head Channel Dimensions
