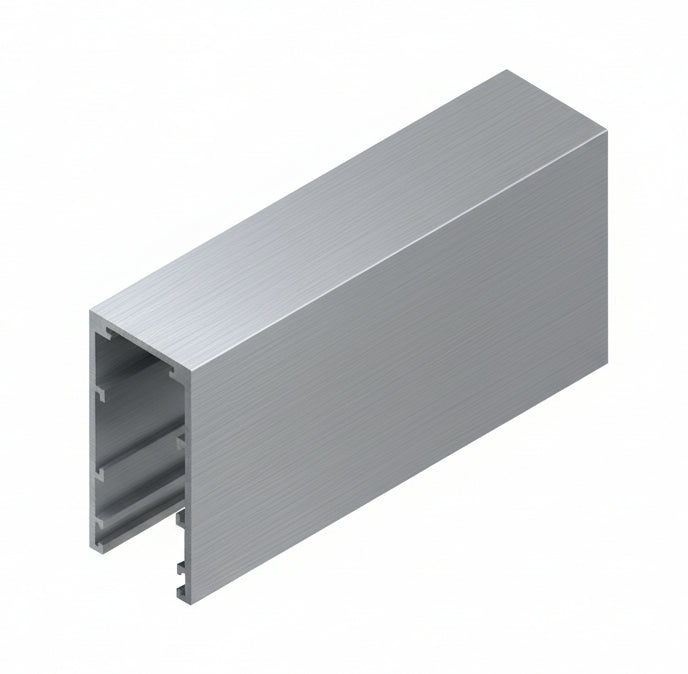

Glazing Glass Channels - 50x25x3m + Gaskets

Glazing Glass Channels- 50x25x3m are engineered specifically for glass screen partitioning applications, this 50x25x3m aluminium U channel facilitates superior head and wall depth clearance.

The precision-designed profile enables efficient glass panel insertion, allowing for precise adjustment and positioning prior to silicone application or completion with the optional for a gasket system for professional installation results. oftern refered to as head track or glazing trims.

Glazing Glass Channels Specification

• Deeper aluminium channel supplied - 50 x 25 x 3000mm lengths

• Glass panel sizes 10 to16.8mm width capacity.
• Available in 3 popular colours White / Silver / Black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium.

• Some drilling on site maybe required - excludes fixings

• Brackets not included

• NB GASKETS MUST BE PRE INSTALLED BEFORE FIXING.

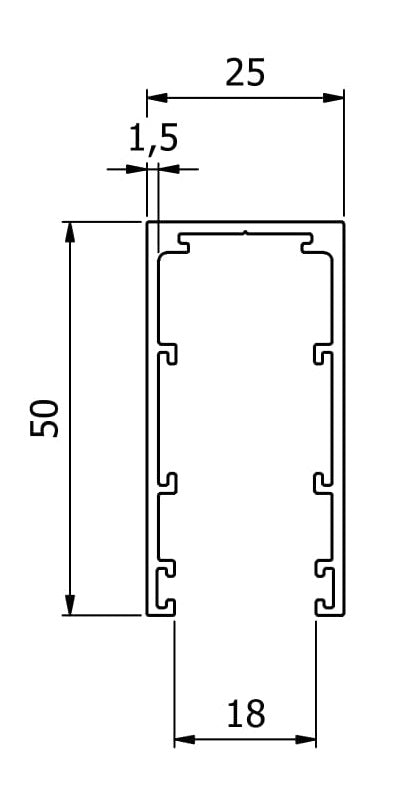

Head Channel Dimensions
