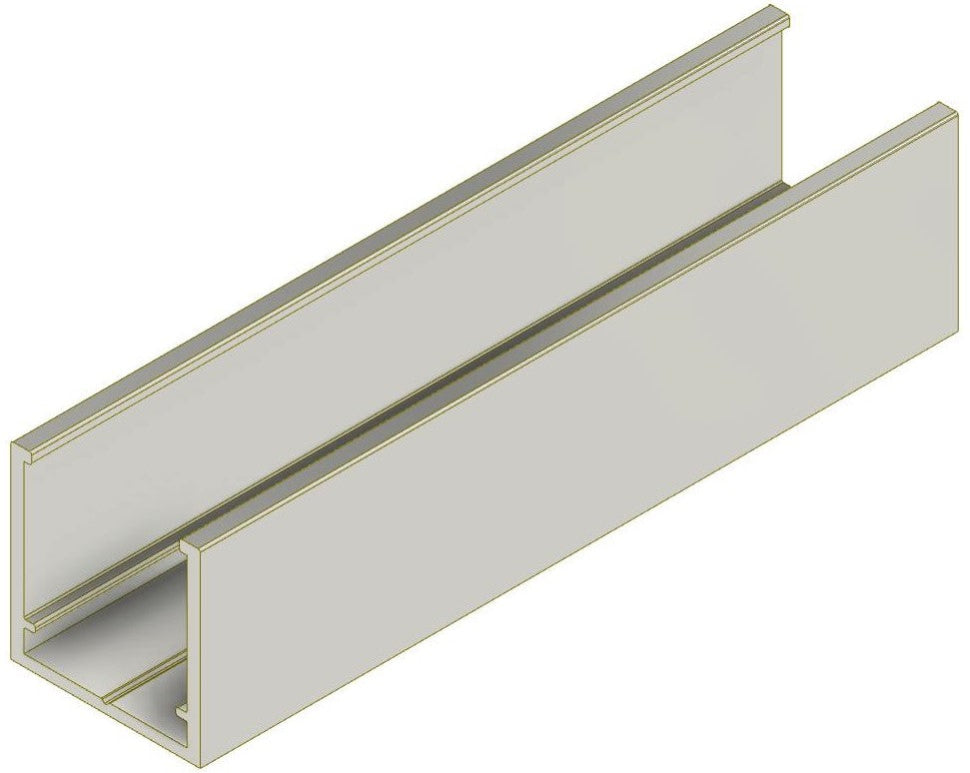

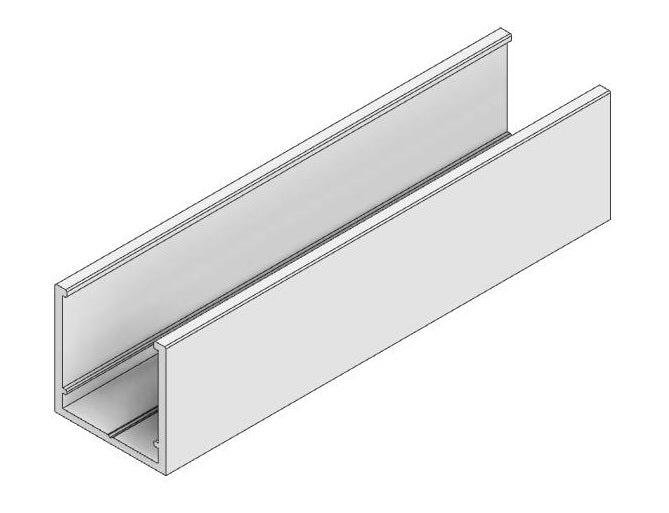

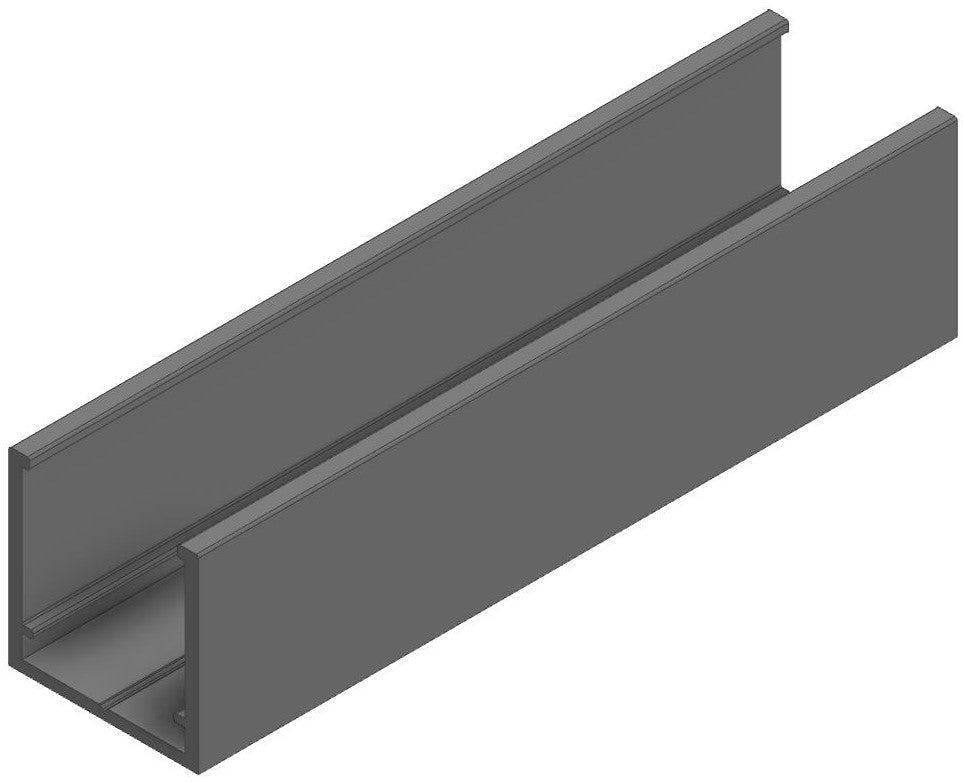

Glazing Aluminium U Channel + Gaskets - 25x25x3m

Designed specifically for partitioning glass screen glazing head and wall details, this aluminium U channel offers a highly efficient dry glazing system. Measuring 25x25x3m, the channel facilitates easy insertion and precise positioning of glass panels, allowing adjustments like shuffling for a perfect fit before securing. The system is complemented by optional push-in gasket inserts that provide a secure finish, enhancing stability and reducing potential rattling or movement. Crafted from durable aluminium, this U channel ensures long-lasting performance and a sleek, professional appearance in glazing applications. Ideal for both commercial and residential projects where quality and precision are essential. oftern refered to as glazing trim or head track.

Specification

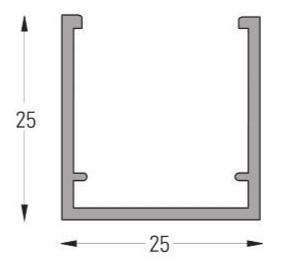

Supplied - 25mm x 25mm x 3000mm length
Panel or glass maximum 18mm width capacity / 20mm depth.

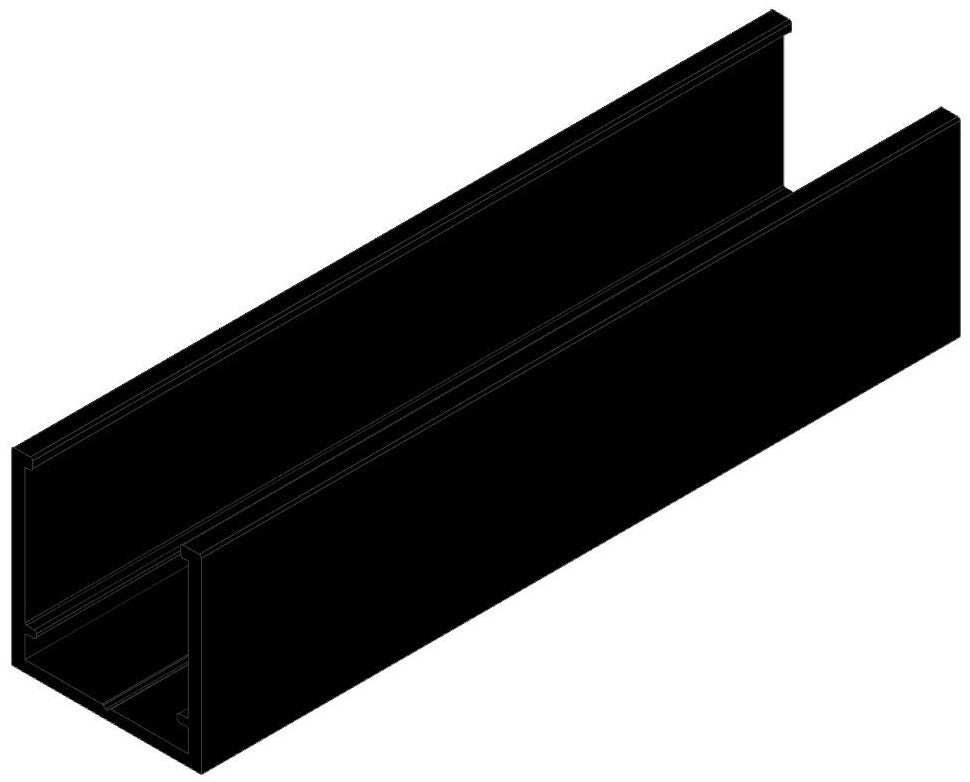

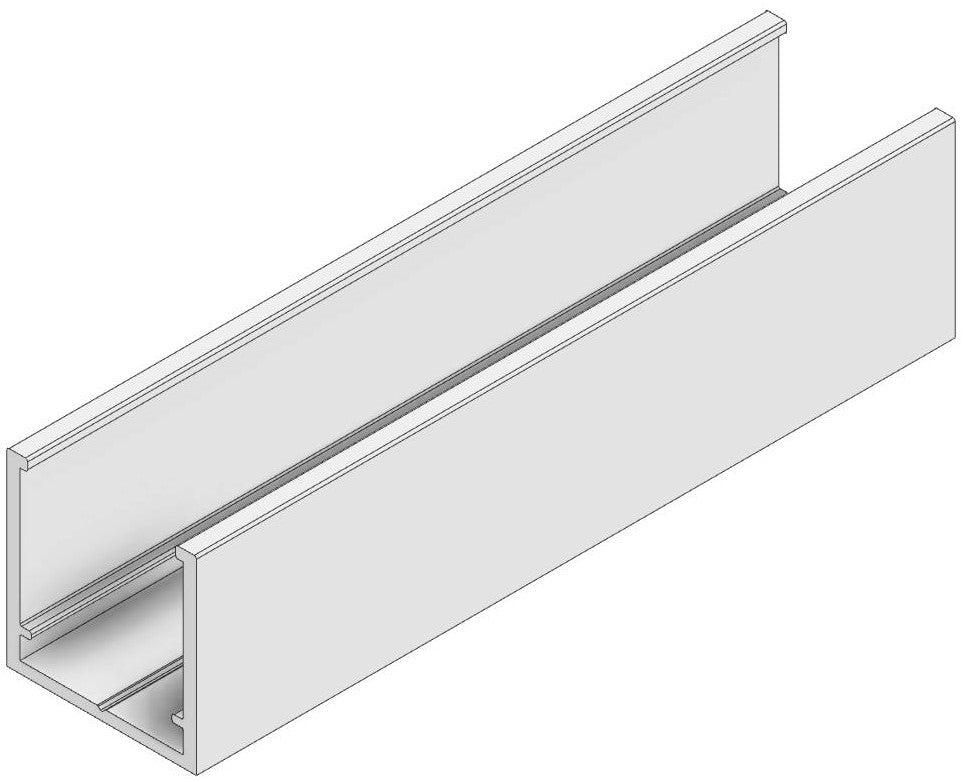

Stocked in 4 popular colours white / silver / grey / black.
Durable powder costing
Engineered from T6 Internal architectural grade aluminium.

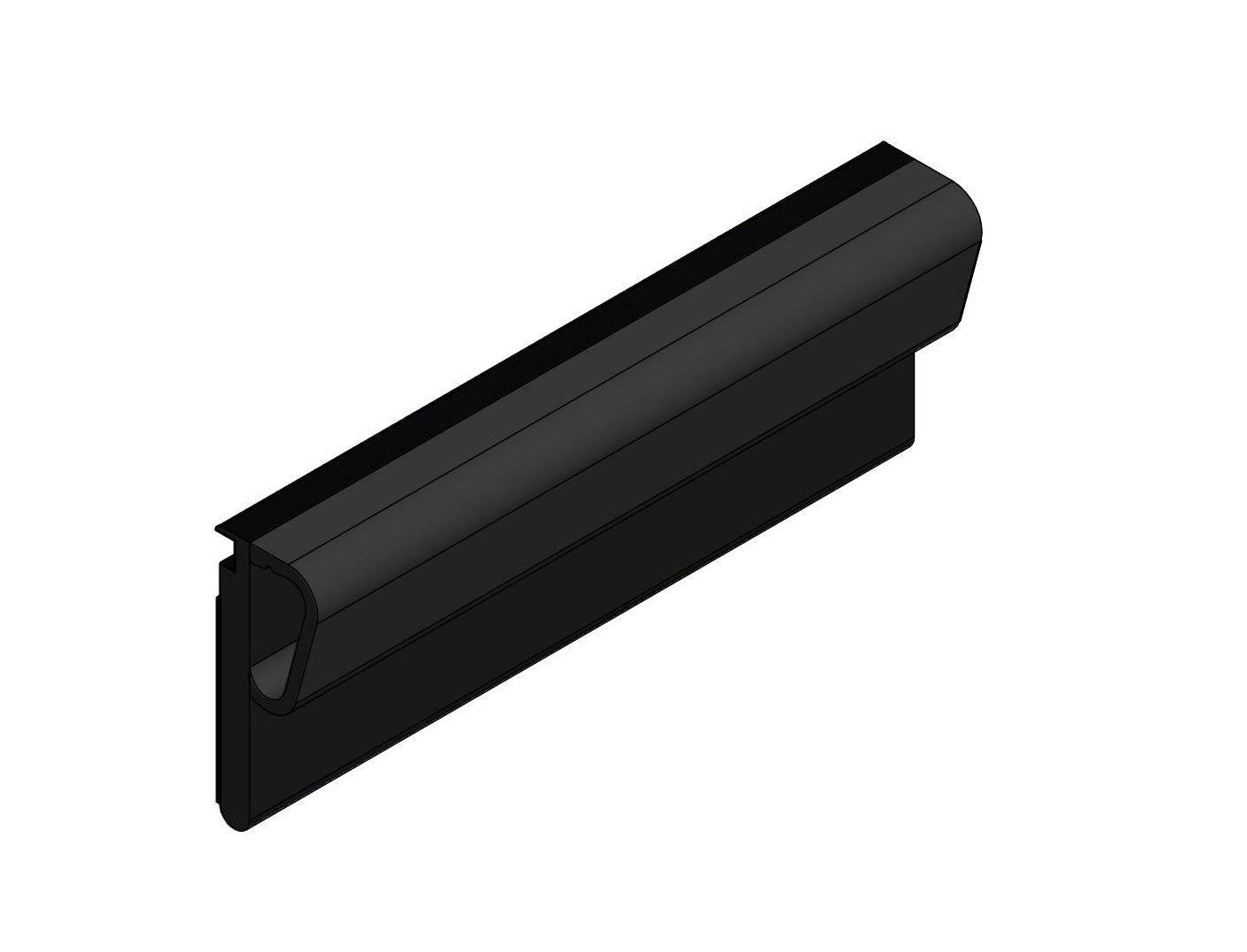

Dry glaze Glass gaskets optional 10 - 12.8mm glass
Glazing range

Glazing Channel Example

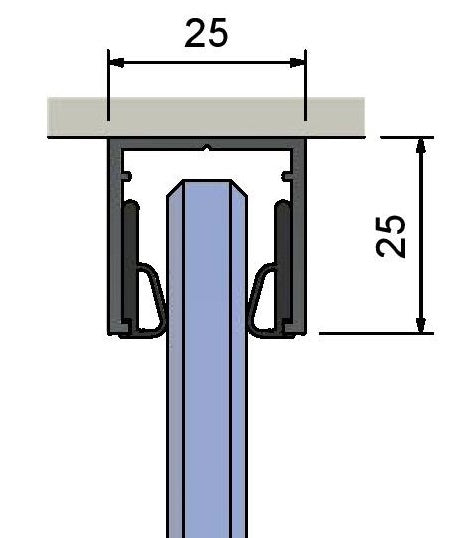

Below example shows a glass inserted into track as a head track example ( ceiling ) gasket is then simply pushed into fit after glazing panel is inserted, clerance for shuffle glazing to be considered when using this method
