JT20-Type Suspended Ceiling Junction 20mm Shadow Gap Trims

The JT20-Type Suspended Ceiling Junction Shadow Gap Trim offers comprehensive junction finishing for multiple ceiling typologies. Engineered for mineral fibre tiles, metal ceiling systems, plasterboard installations, and partition interfaces, this trim ensures professional-grade coverage across varied architectural applications. The stepped shadow gap reveal configuration permits controlled visual articulation at ceiling junctions, enabling designers to specify precise reveal depths that enhance overall aesthetic coherence. Built for installations requiring meticulous attention to detail and superior finish quality.

Specification

• Horizontal use ceiling trim details.
• Supplied in standard 3000mm lengths.
• Stock RAL colour white 9010.

• Durable powder coat finish.
• Extruded from architectural grade aluminium alloy to BS1474.

• Extruded from T6 internal grade aluminium.

• Other colours on request please email.
• Mitre cut on site.
• Cleating options.
• Ceiling profile range

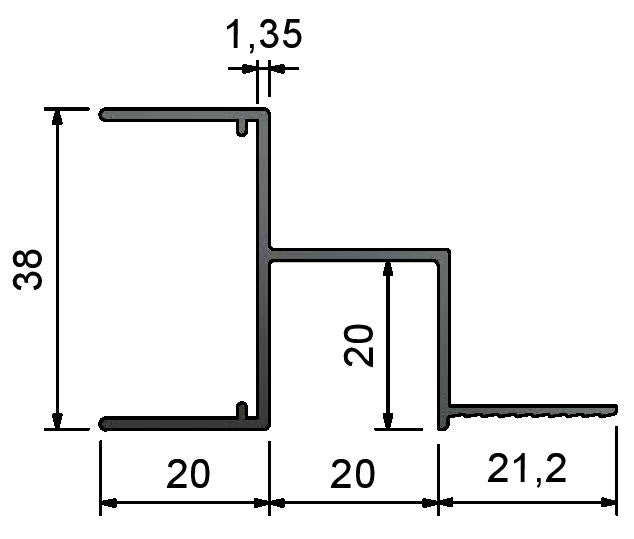

Junction Trim Example
