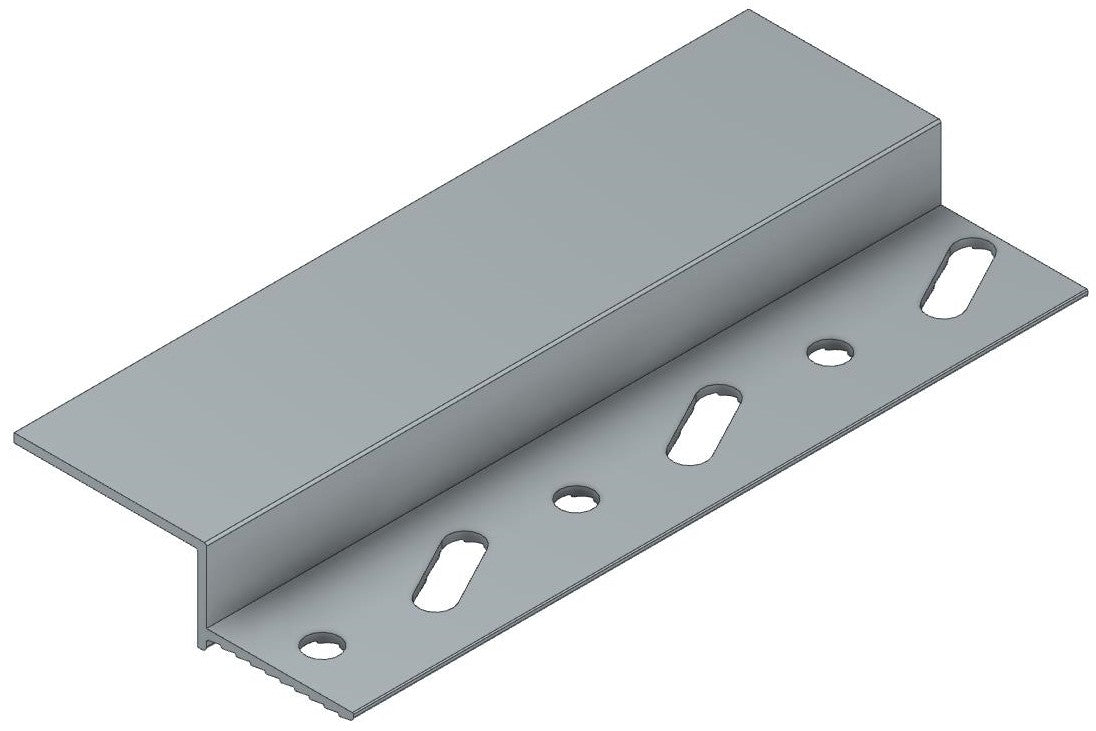

R-25 Type 25mm Reveal Trim

Used with gypsum plasterboard, R-Type Shadow Line Gap Reveal Trims enable precise horizontal or vertical design accents. These trims are versatile, suitable for installation in suspended perimeter ceilings, alongside timber, wood, or aluminium door frames, above or below MDF skirting boards, window frames, staircases, and numerous other locations to produce refined natural light effects.

Specification

• Suitable for 12.5mm plasterboard.
• For 15mm boards see >>> RD Type
• Supplied in standard 3000mm lengths
• Standard & durable colour powdercoating - RAL 9010 White.
• Punched flange for easy fixing.
• Can be detailed for mitre cuts with a decent chopsaw.
• Feathered edging for tape and joining.
• Extruded from architectural grade aluminium T6 alloy to BS1474
• Larger sizes can dual as recessed base skirting reveals see >>> ST Type
• Ideal for internal use applications
• Please email for bulk quotations

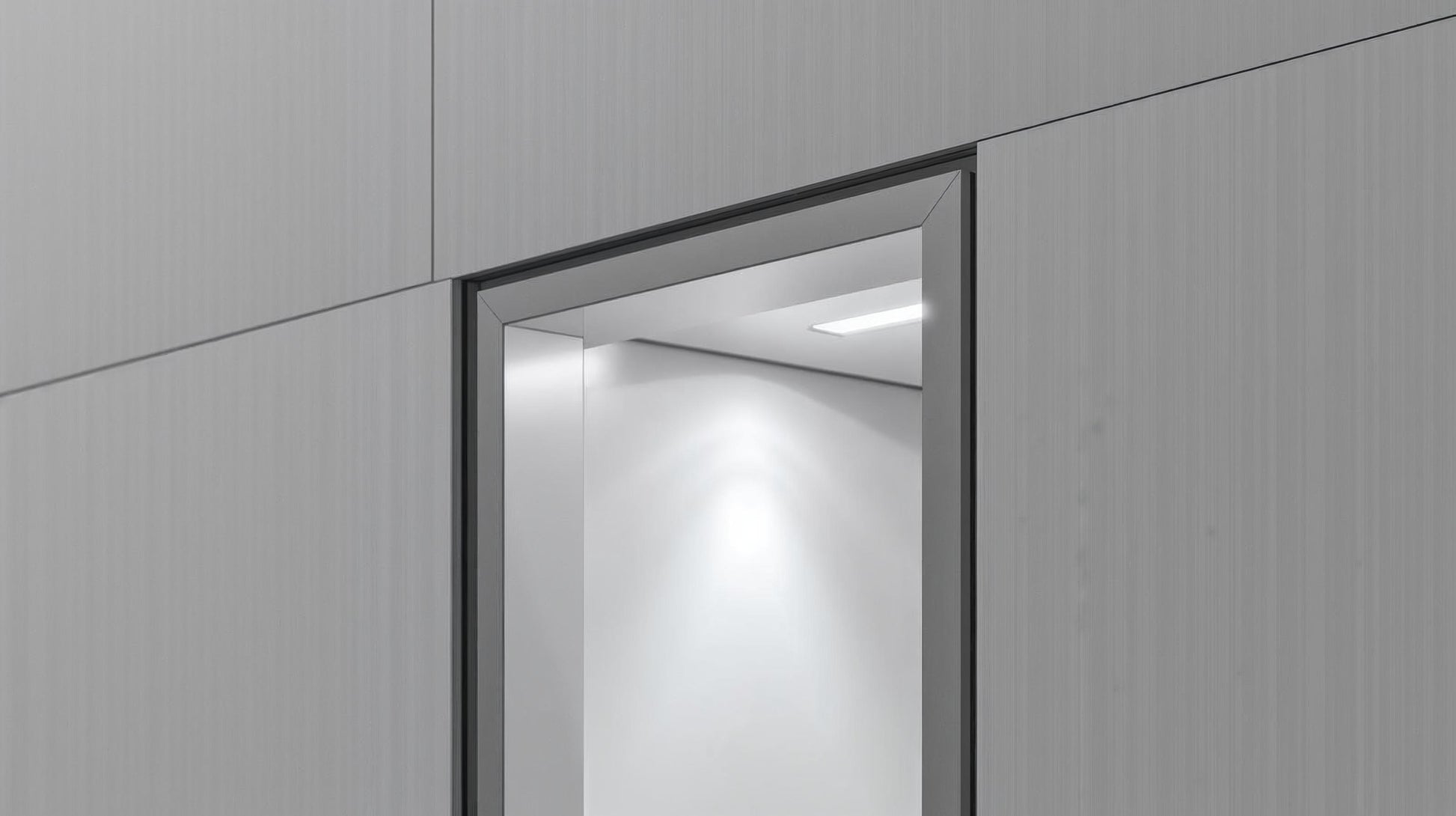

Reveal Trim Example

Shown below using a steel stud and plasterboard fix butting up to a Timber door frame prior wet trade plastering.

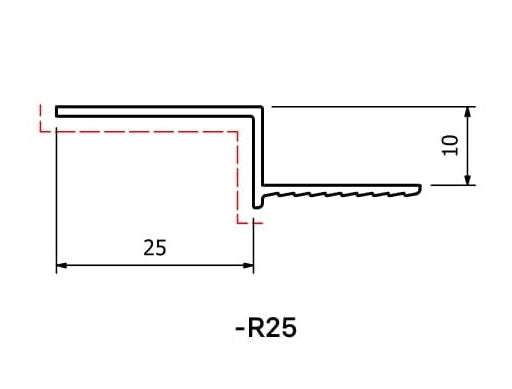

Reveal Trims Dimensions

R-Style ranges from 6mm to 40mm reveal / shadow gap detail using 12.5mm plasteboard, >>> RD-Style trim is designed for 15mm plasterboard details.
