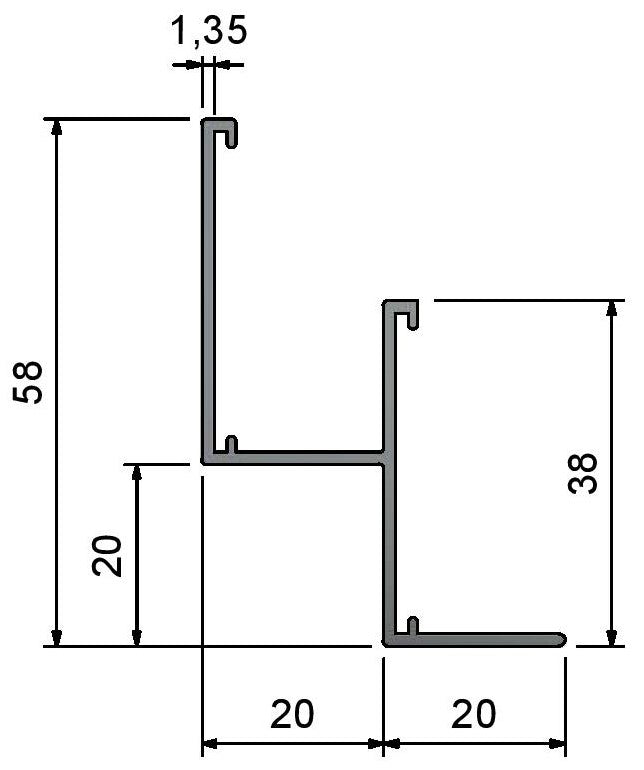

SA20-Type Suspended Ceiling Tile 20mm Reveal Trims

The S-Type Suspended Ceiling Tile Reveal Trims act as a seamless connection between drylining plasterboard and commonly used suspended ceiling tiles and grids. These metal trims can be paired with standard perimeter angle finishes for mineral fibre ceiling tiles, adding a refined touch to lighting and producing a sleek shadow gap reveal detail.

these options availible have proven to significantly improve the quality and look of construction work. Made of architectural grade aluminium alloy conforming to BS1474, these ceiling trims are available in 3000mm lengths. The standard finishes include white polyester powder coating with 20% gloss to RAL 9010

Suspended Ceiling Trim Specification

• Supplied in standard 3000mm lengths
• Standard RAL colour of 9010

• Extruded from architectural grade aluminium alloy to BS1474

• Extruded from T6 internal grade aluminium
• Other colors on request please email.
• Other ceiling trims range
