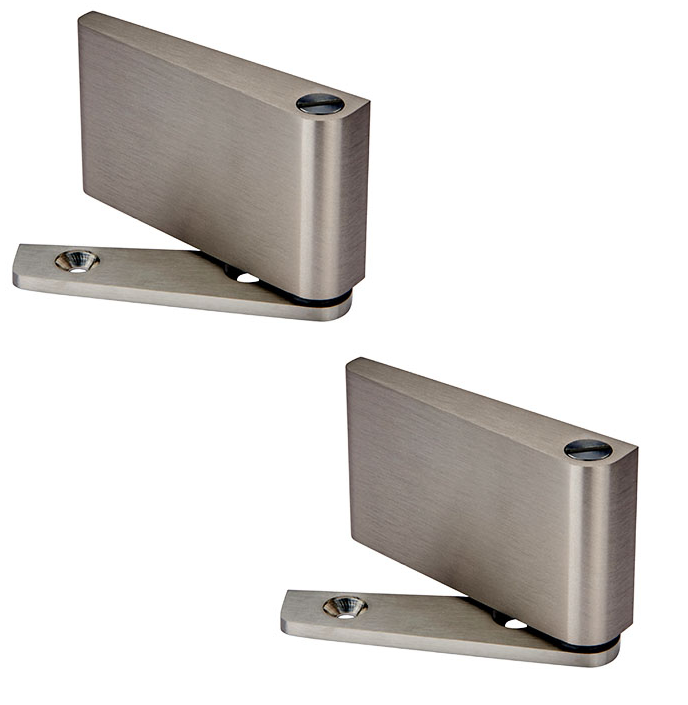

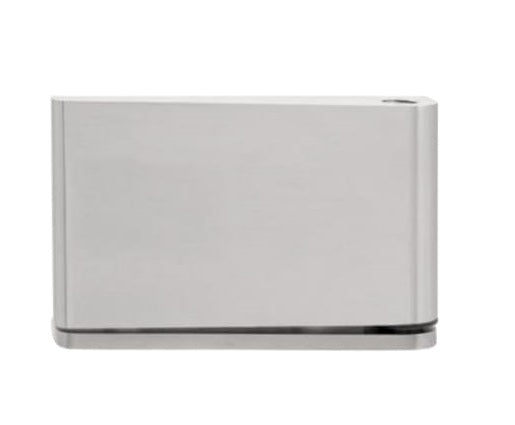

Glass Door Hinge - Top & Bottom Fix Pivot Set

This Glass Door Hinge - Top & Bottom Fix Pivot Set is engineered for 8-12mm glass doors, offering a robust and dependable connection between the top of the frame and the floor. Designed for precision, it ensures stable support and smooth pivoting action, enhancing the door’s overall functionality. Ideal for both residential and commercial installations, this pivot set facilitates effortless operation, reduces wear over time, and contributes to the door’s longevity. Its durable construction maintains alignment and performance, making it an essential component for seamless glass door movement.

Specification

• Universal glass door pivot hinge with stainless steel cover caps

• Suitable for 10 12mm glass

• Maximum door width: 900mm
• Load bearing Capacity: 80Kg

• Height adjustable: 3mm
• Plate adjustable 3mm
• 15mm Frame rebate
• Sold as a pair

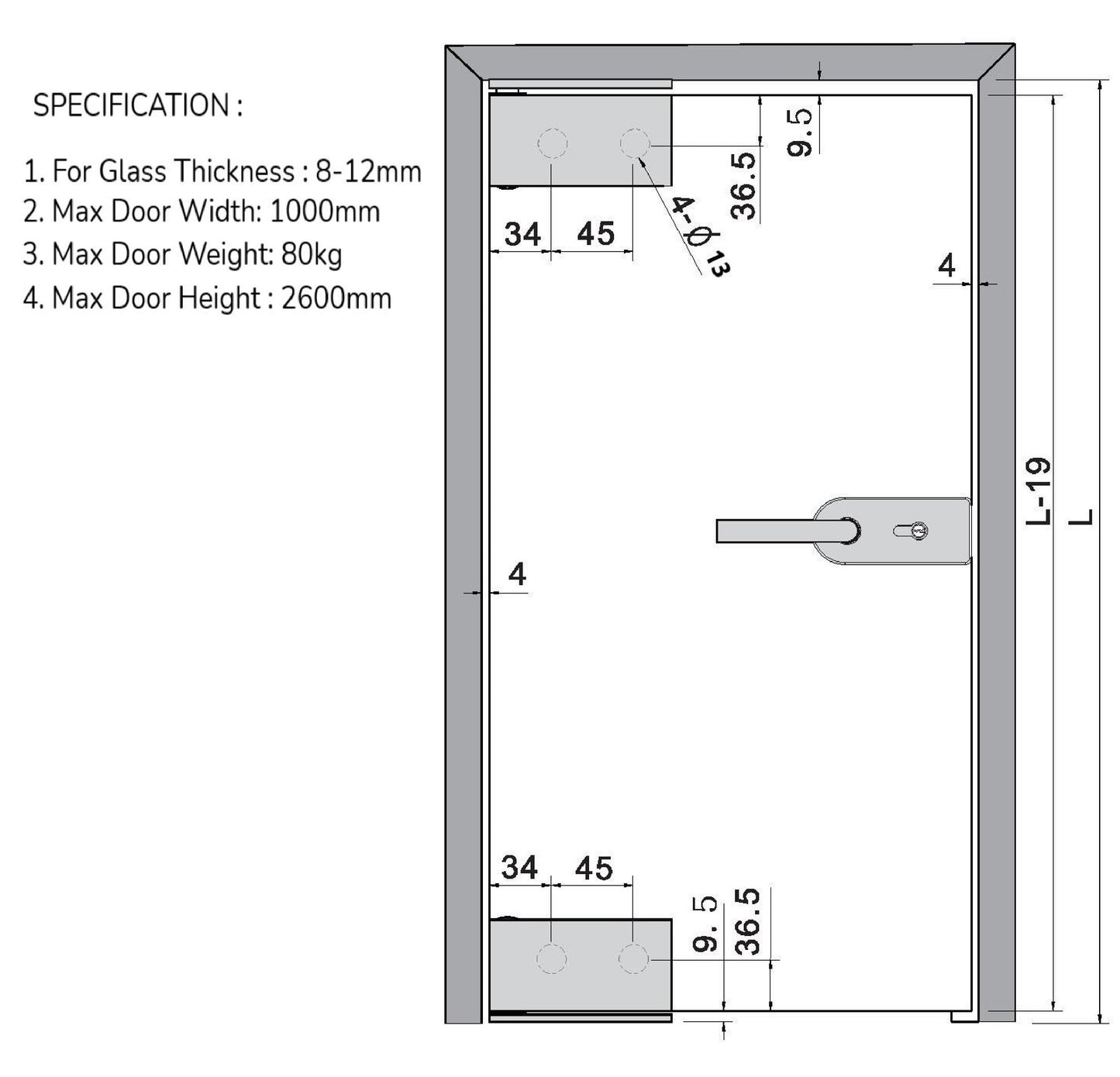

Hinge Dimensions & Glass Preperations
