WRHT-Type Ceiling / Wall / Capping Channels

Metal aluminum drywall wraparound profiles are key elements for completing or capping stud partition walls. These adaptable trims offer cleating for wall extensions and corner assembly, with the ability to be mitered on-site for tailored fits. They are especially effective for quick wall-end finishing and are commonly used alongside aluminum door frames to achieve refined shadow gap details in surface-mounted designs.

PLEASE NOTE THIS IS A PAINT TO ORDER PRODUCT 5-7 DAYS LEAD EXCEPT ALUMINIUM FINISH 1-3 DAYS

Specifications

• Partition fair end stud detailing.

• Door frame plant on fixing possibilty.
• Metal / timber stud finishing / making good.
• Window lining.
• Curtain wall transition.

• Cleating slot options for corners and extensions
• T6 Internal grade aluminium
• Supplied in 3000mm lengths.
• End cap ranges

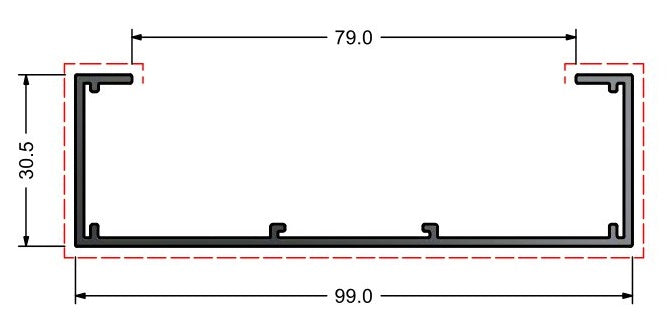

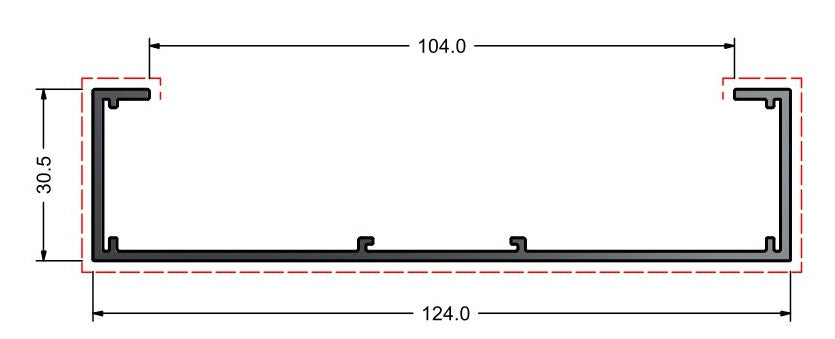

Head Channel Dimensions
