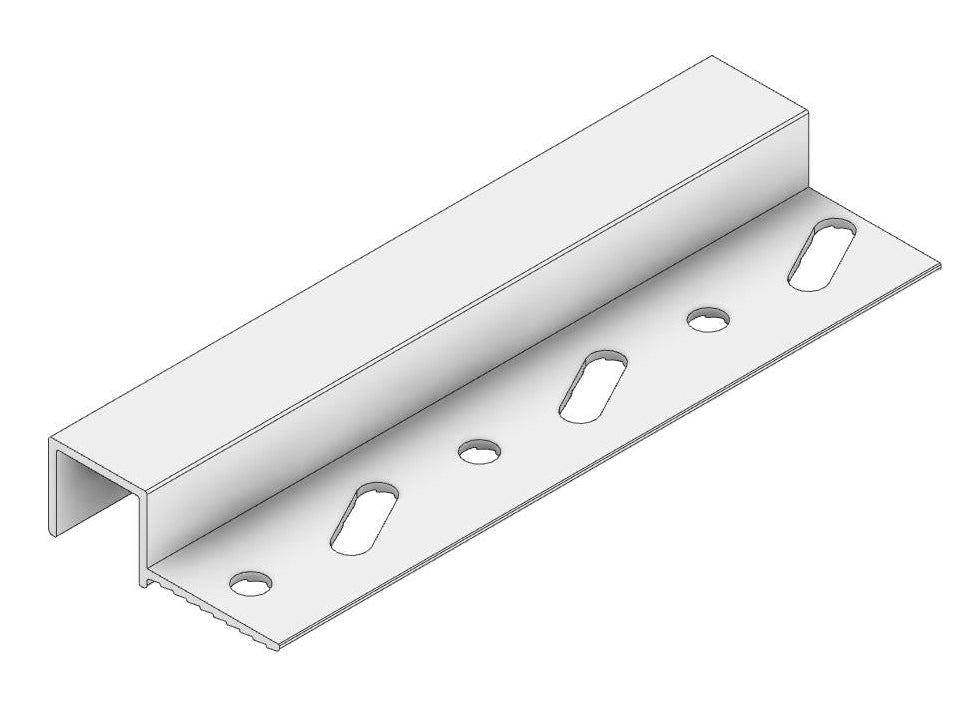

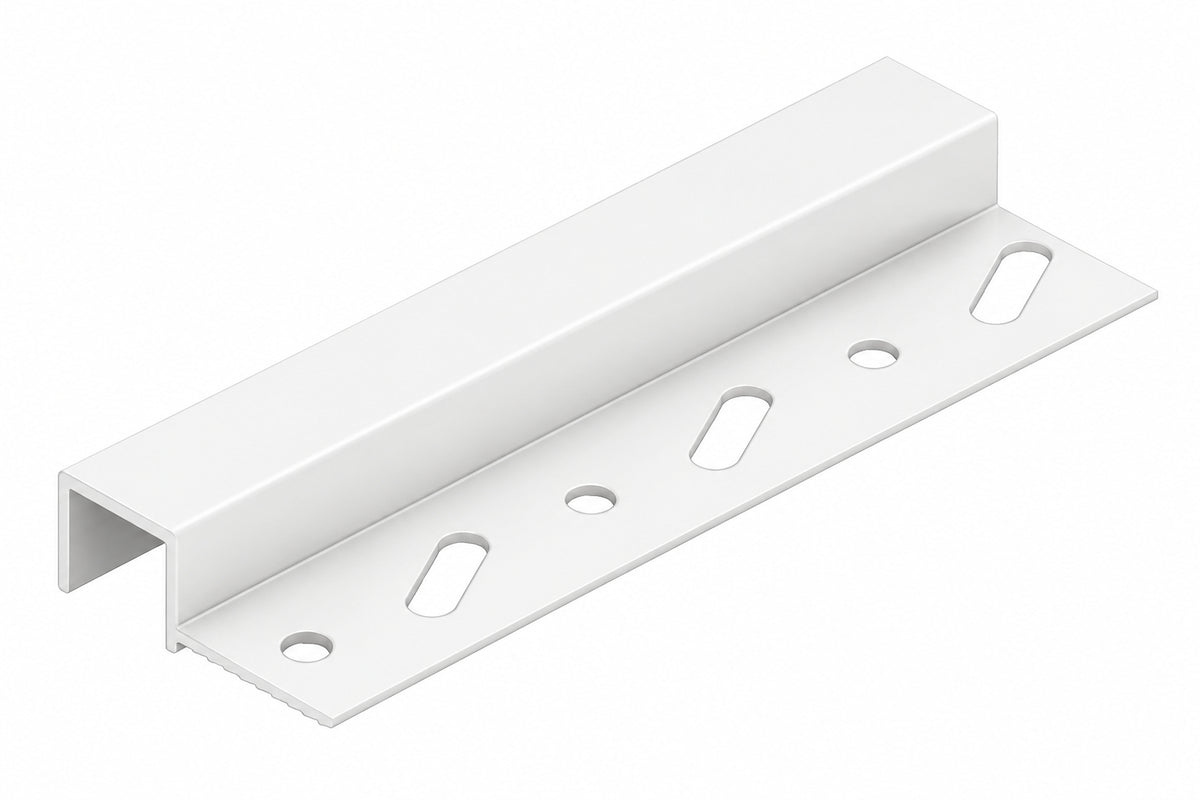

D-Type Wall Channel Reveal Trims

Aluminium metal Wall Reveal Trims are used to crete shadow detailing in horizontal & vertical wall or ceiling detailing in drywall and plasterboard features, supplied in 3000mm lengths & pre-punched with diagonal fixing slots and holes in the plastering fin suitable for fixing by drywall screws

Specifications

• Supplied in 3000mm lengths.
• 12.5mm or 25mm reveal options.
• Durable RAL9010 WHITE colour powder coated.
• Pre-punched with diagonal fixing slots and holes in the plastering fin.
• Suitable for fixing drywall screws mecanical fixings.
• Extruded from T6 architectural grade aluminium alloy to BS1474
• Please email for bulk discounts.
• Wall profile range

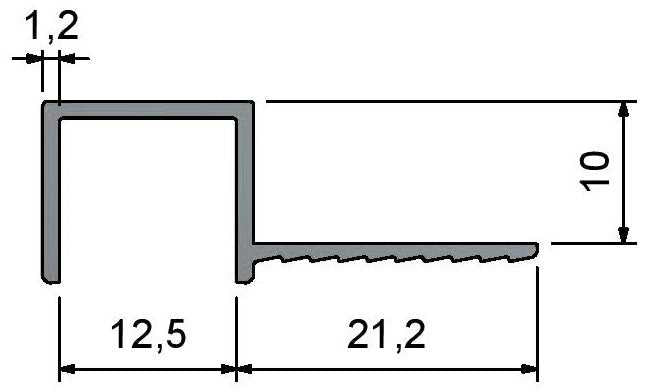

Wall Channel Reveal Dimensions

Below dimensions denotes reveal shadow gap desired, can be used in wall or ceiling drywall applications.
