J-Type Edge Trims

Plasterboard J Edge trims and corner trims provide essential protection to the plasterboard’s most delicate areas—the corners and edges. These trims ease the drylining process by forming precise corner edges and directing the placement of plasterboard onto the metal edge.

Specification

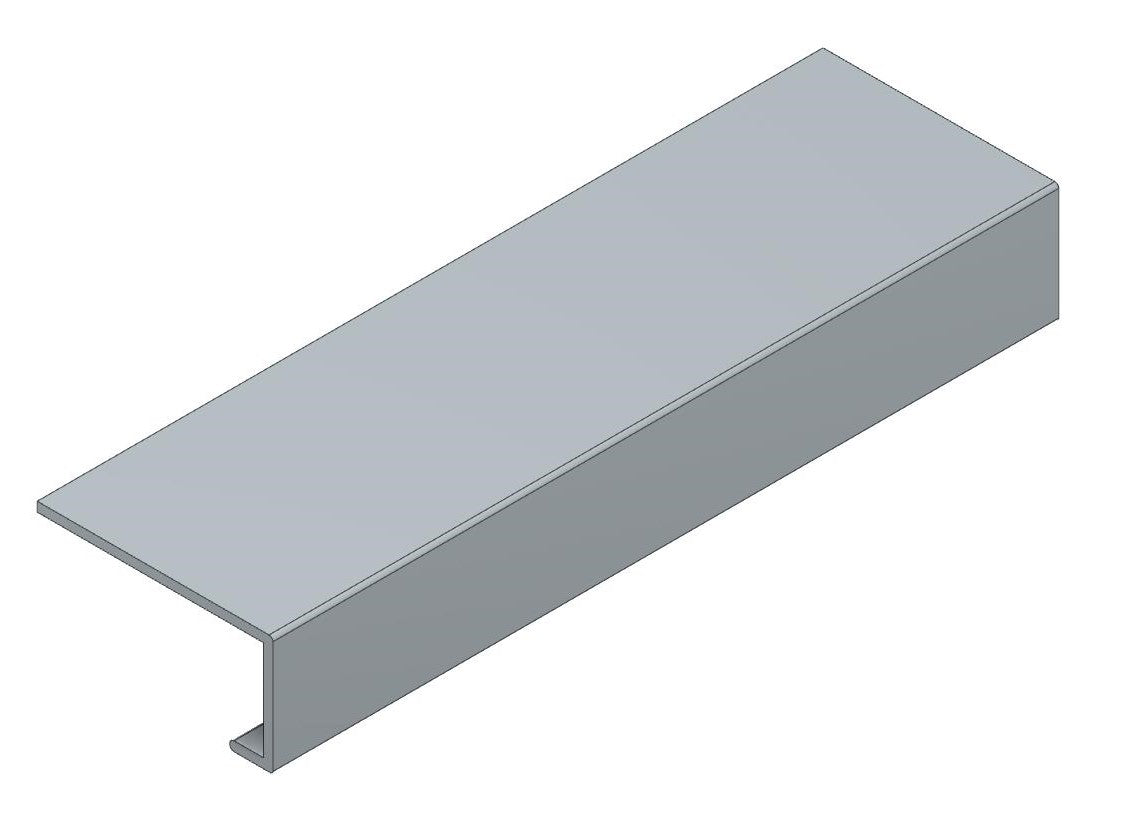

• Vertical Walls P01 ( J Trim )
• Horizontal use ceiling trim detail >>> P15
• Supplied in standard 3000mm lengths
• Stock RAL colour white 9010

• Extruded from architectural grade aluminium alloy to BS1474

• Extruded from T6 internal grade aluminium

• Other colors on request please email.
• Bead range

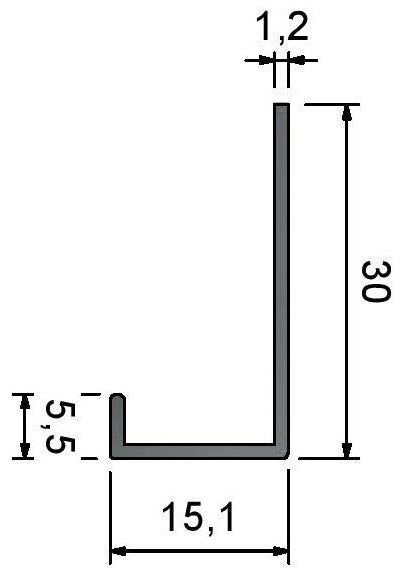

Dimensions Guide
