Glazing U Channel

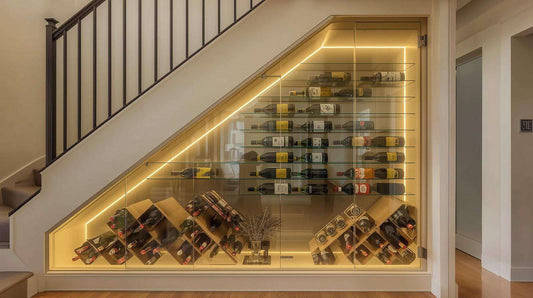

Aluminium Glazing U or Glass U Channel profiles are aimed for fast installation with minimal effort and a slim line perimeter for maximum light, they can be used for a varity of applications, such as frame-less shower screens or glass panel project creation in full height glass partition screens, glazed screen protection areas such as desk or counter dividers, stairwell wine cellar glazing creation, glass cupboards with the correct glass door hinges & handles, and many commercial and residential enviroments.

General Information

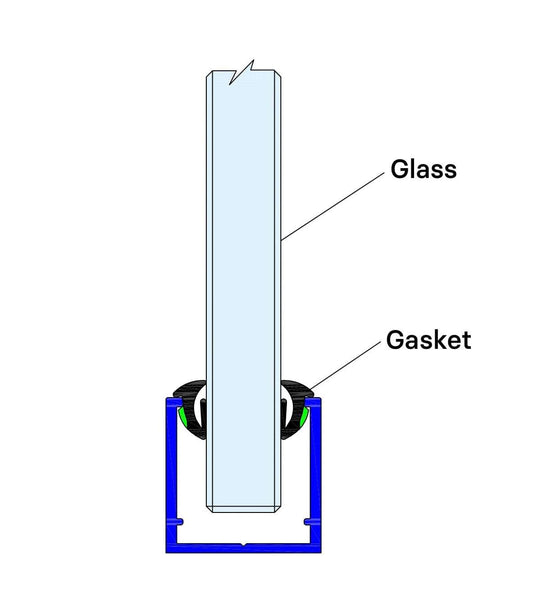

  • Ceiling or Head channel options are a one peice 25 x 25 x 1.75mm dimension.

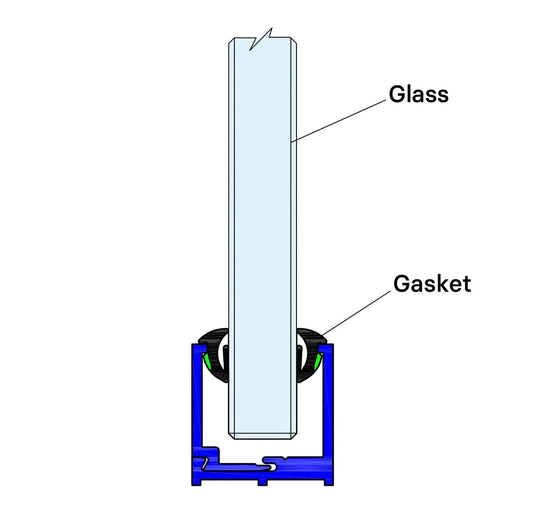

  • Wall or base channels are 2pc 25 x 25 x 1.75mm dimension.
  • Blanking plate section for glass door fixing, clips into ceiling / head channel.
  • Optional flat bars & tape ( crital glazing bars for banding looks & styles ).
  • Dry push in gaskets -  scope 10 to 13mm glass thickness's.
  • Silicone fix glass or panel upto 18mm maximum.
  • Choice of 4 stock colours aluminiu & bespoke RAL requests.
  • Durable heavy duty powder coating.
  • Supplied in 3000mm lengths.
  • Cut to size on site with a aluminium chop saw
