R-Type Reveal Trims

When paired with gypsum plasterboard R-Type Shadow Line Gap Reveal Trims can be utilised to achieve horizontal or vertical design detailing. These reveal trims can be placed in various settings, such as suspended perimeter ceilings, against timber wood or aluminium door frames, above or below MDF floor skirting, window frames, stairways and many more applications to create sophisticated natural lighting designs.

Specification

• Suitable for 12.5mm plasterboard.
• For 15mm boards see >>> RD Type
• Supplied in standard 3000mm lengths
• Standard & durable colour powdercoating - RAL 9010 White.
• Punched flange for easy fixing.
• Feathered edging for tape and joining.
• Extruded from architectural grade aluminium T6 alloy to BS1474
• Larger sizes can dual as recessed base skirting reveals see >>> ST Type
• Ideal for internal use applications
• Please email for bulk quotations

Reveal Trim Example

Shown below using a steel stud and plasterboard fix butting up to a Timber door frame prior wet trade plastering.

Reveal Trims Dimensions

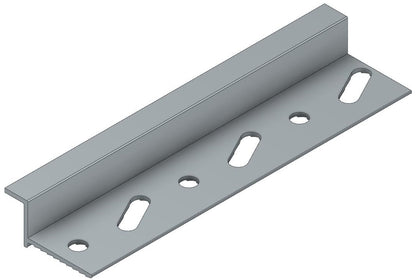

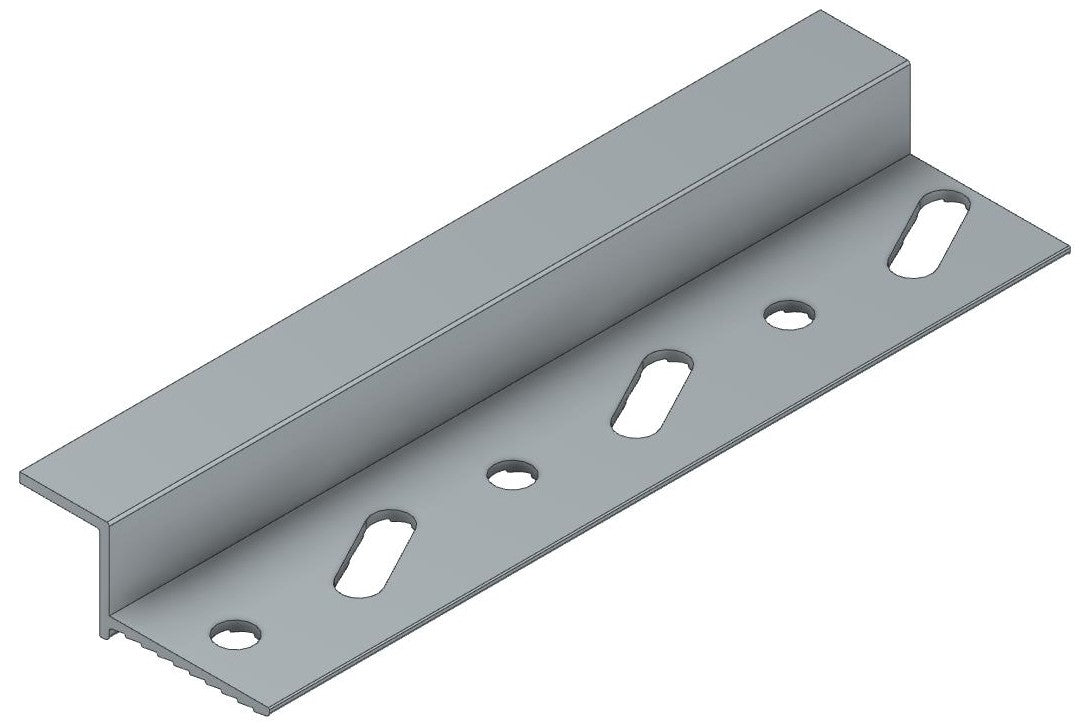

R-Style ranges from 6mm to 40mm reveal / shadow gap detail using 12.5mm plasteboard, >>> RD-Style trim is designed for 15mm plasterboard details. Above 40mm dual as skirting recessed type.
