Aluminium Door Frame Kits

Designed for glass door and timber doors, our standard glass partitioning door frames are the perfect partner for a simple dry glazing partition system method, providing easy glass insertion allowing shuffle glazing and positioning glass finishing.

Specification Details

• Supplied - as complete kit made to size ( finished opening is required )

• Dry glaze gaskets supplied for glass thickness of 10 -12.8mm
• Glass thinkness range - 10mm to 12.8mm recommended
• Maximum door width 926mm
• Maximum door height 2750mm
• Self closing glass hinges surface mountable example >>> hinges
• Glass is not supplied ( email for information )
• 4 popular colours white / silver / grey / black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium
• Manual drilling will be required to fix head and wall detail

• Striker & opening versions will need to be discussed prior production

• >>> Glazing Channels

NB Lead time will vary from 3-10 working days / No acoustic data is offered with this frame work.

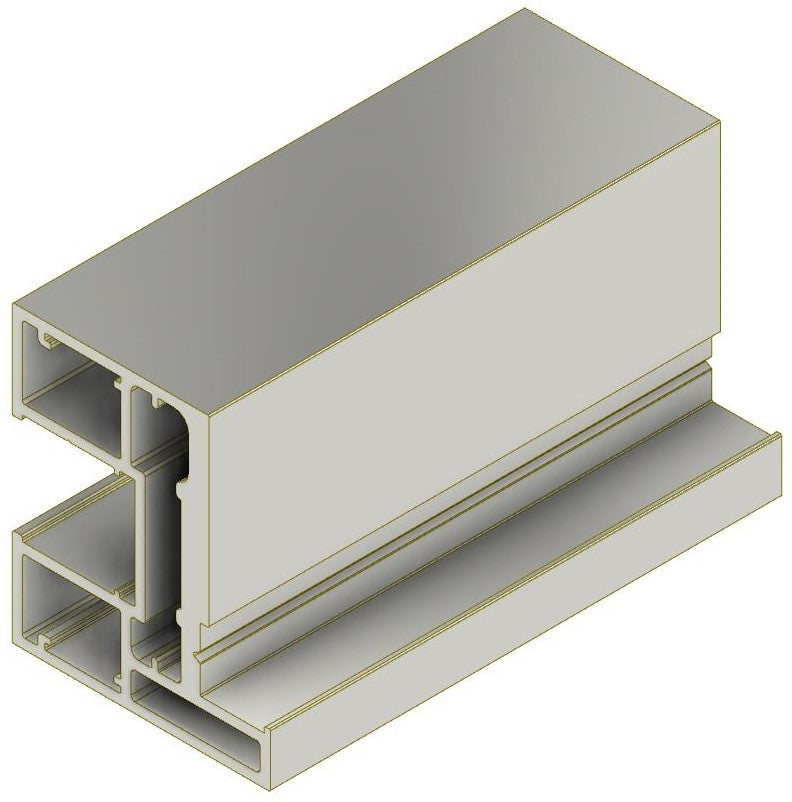

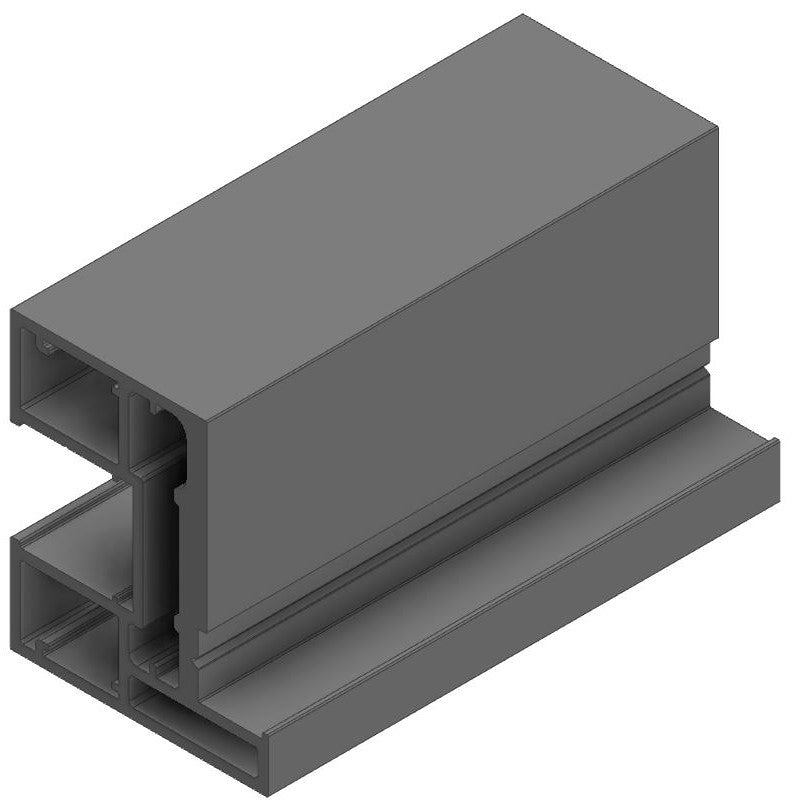

Aluminium Door frame Example
