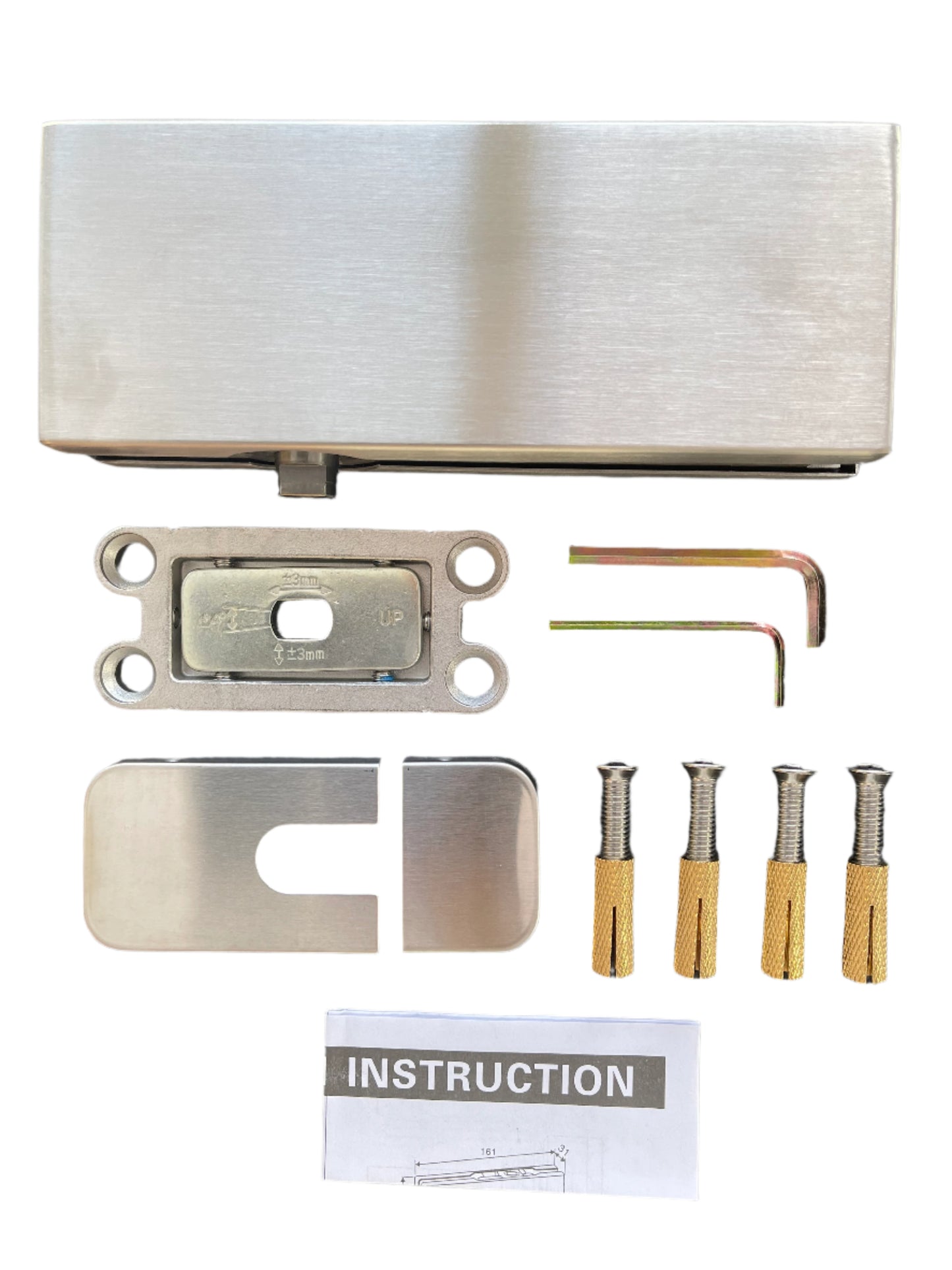

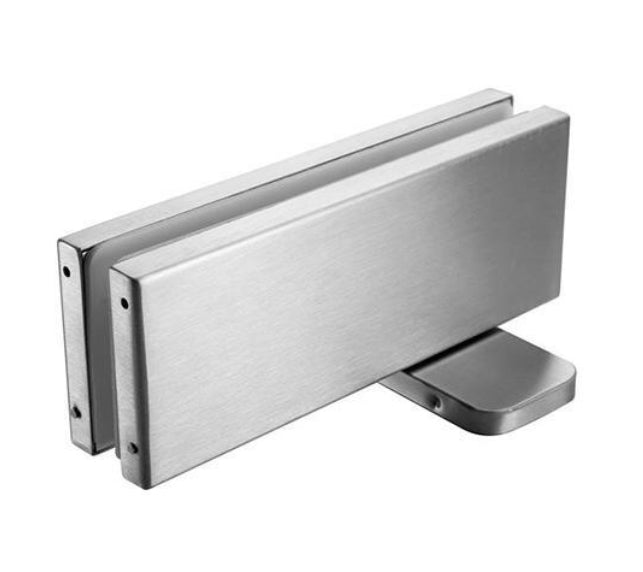

Glass Door Hydraulic Patch Fitting Closer

The Glass Door Hydraulic Patch Closer provides smooth, soft-closing functionality for internal glass doors fitted with toughened safety glass. Designed for flexible installation at the door’s base assissted by a sturdy top pin, this closer is perfect when traditional floor springs are impractical - such as with underfloor heating or mechanical installations. Its compact base design eliminates the need for floor recessing, simplifying installation and maintenance while preserving valuable floor space.

Hydraulic Patch Fitting Features

• Removeble dust covers
• EN 1154 compliant
• Maximum door weight 100 kg
• Maxium door width 1000mm
• Maximum door leaf height 2700 mm ( 900 mm width )
• Glass thickness gaskets 10 to 12 mm
• Maximum door opening 150° & controlled to 135°
• Dual swing action
• Two speed adjustment closing
• Cycle tested to 500,000
• Alignment adjustment +3 mm in four directions
• 304 standard quick release cover plates
• Color: SSS Stainless Steel Brushed & BLK Black Options
• Type: glass door bottom hydraulic closer
• Ozone OCFH 100 / Rutland GP3 type

Dimensions
