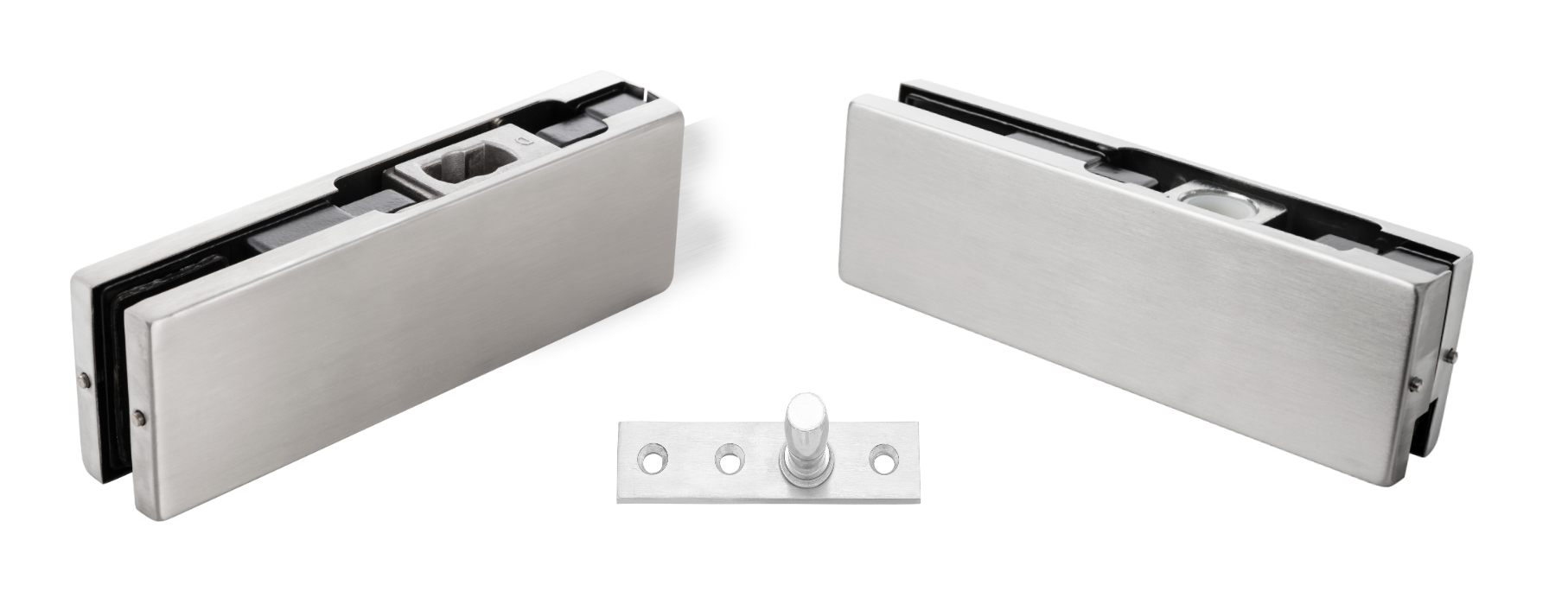

• Glass Door Patch Set - SSS Finish
  • Glass Door Patch Set

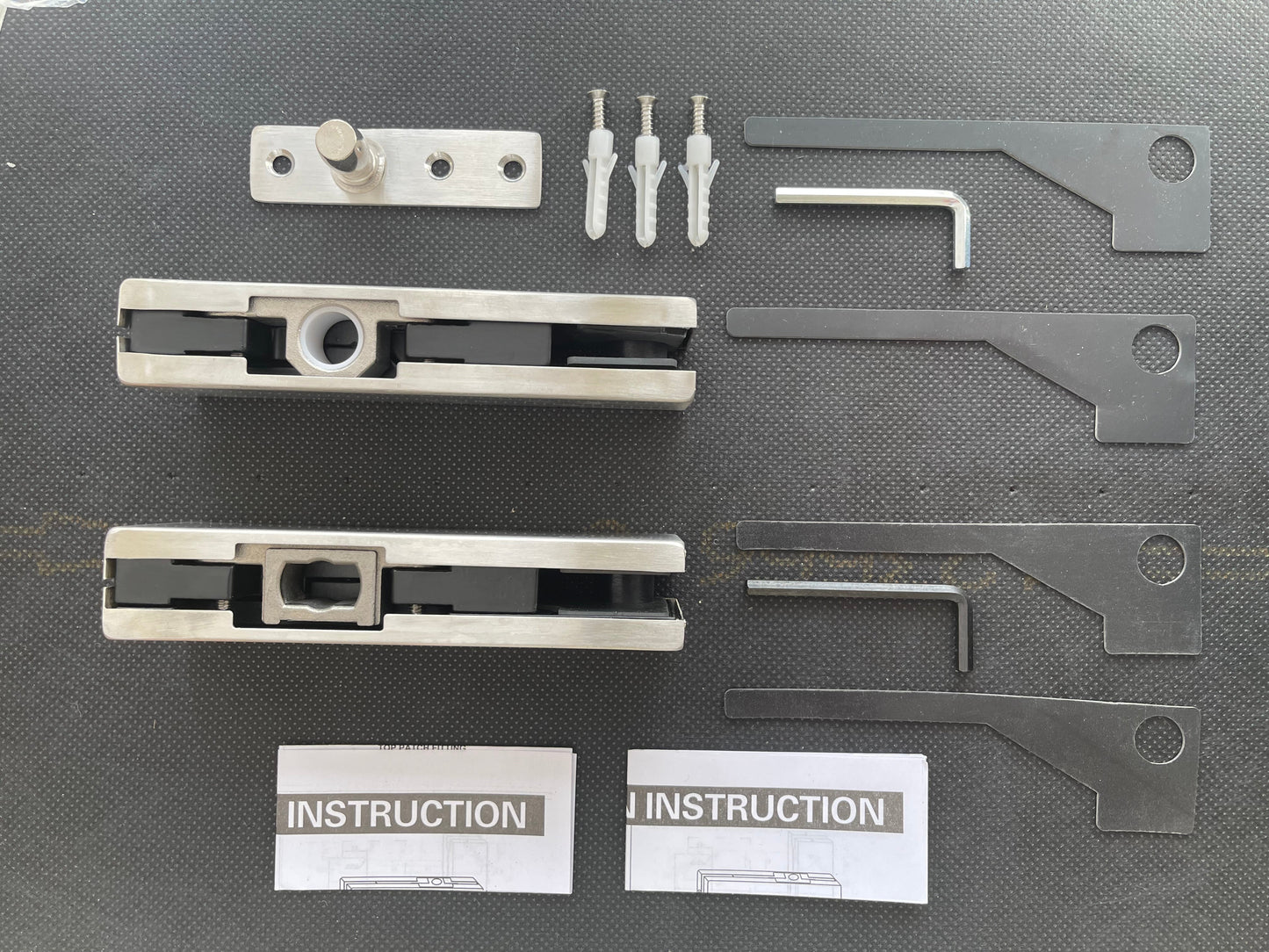

  • Glass Door Patch Set 2

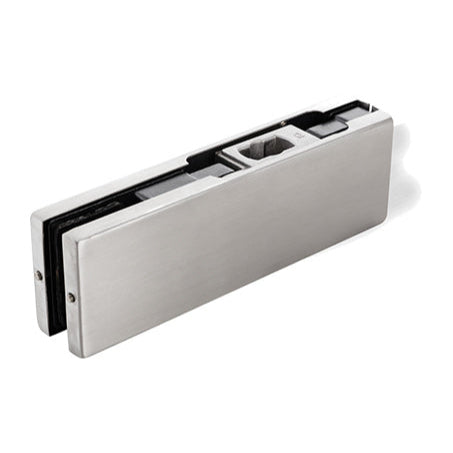

  • Glass Bottom Door Patch Fitting - SSS Finish ( Dorma Style PT10 )

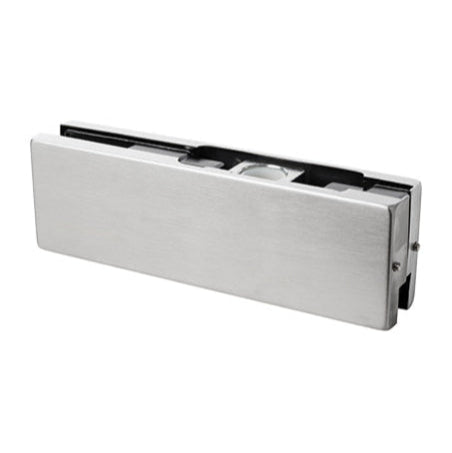

  • Glass Door Top Patch Fitting - SSS Finish ( Dorma Style PT10 )

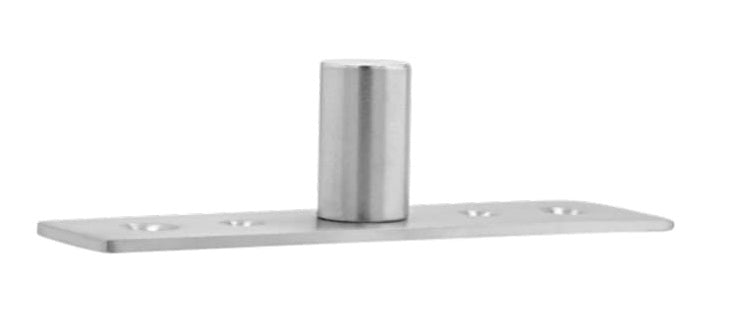

  • CPF201- Top Pivot Patch Fitting Plate
  • CP250-2 Floor Patching Fitting Pivot 250KG
  • CP100-1 Floor Patching Fitting Pivot 100KG

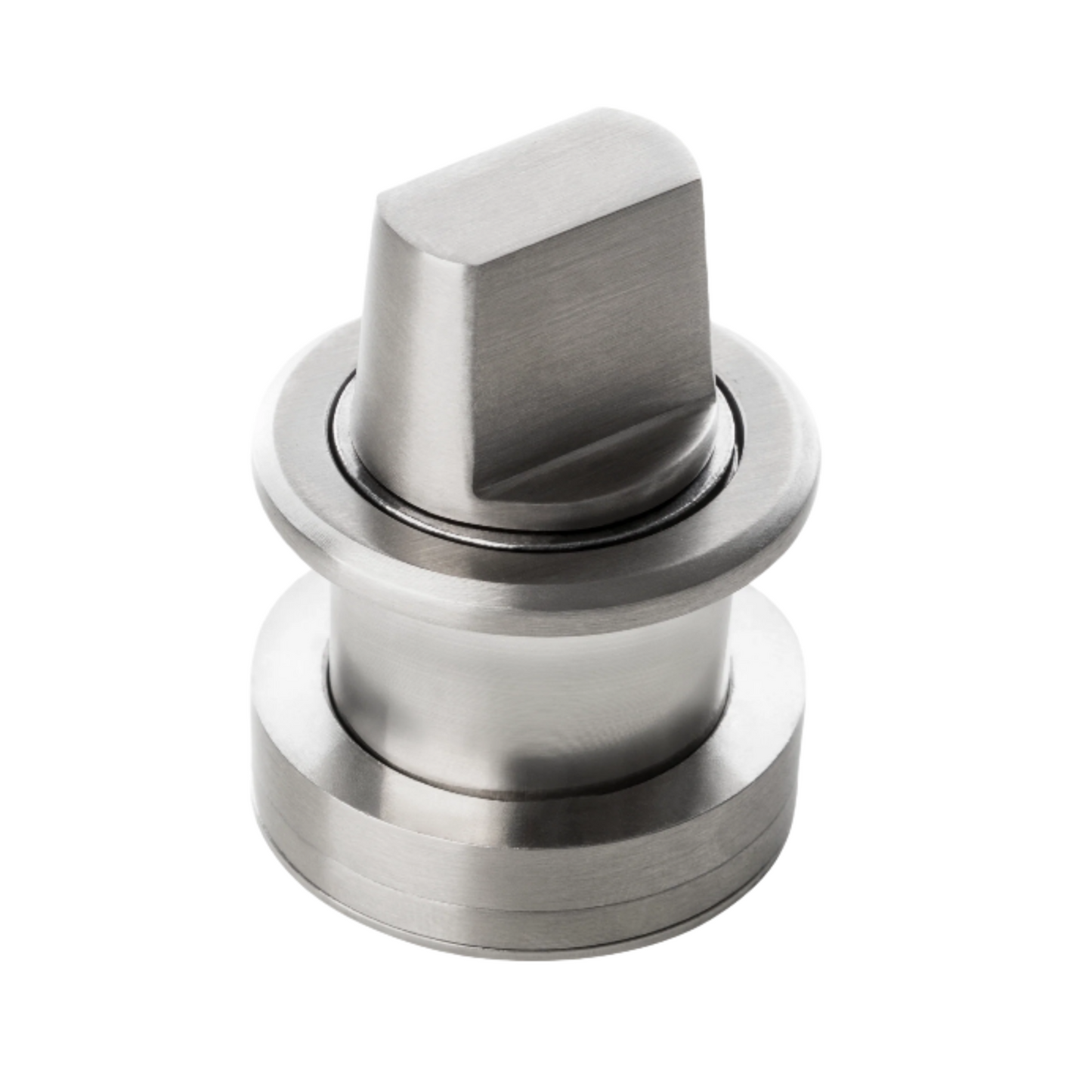

  • CP-100 100kg Free Swing Floor Pivot SSS

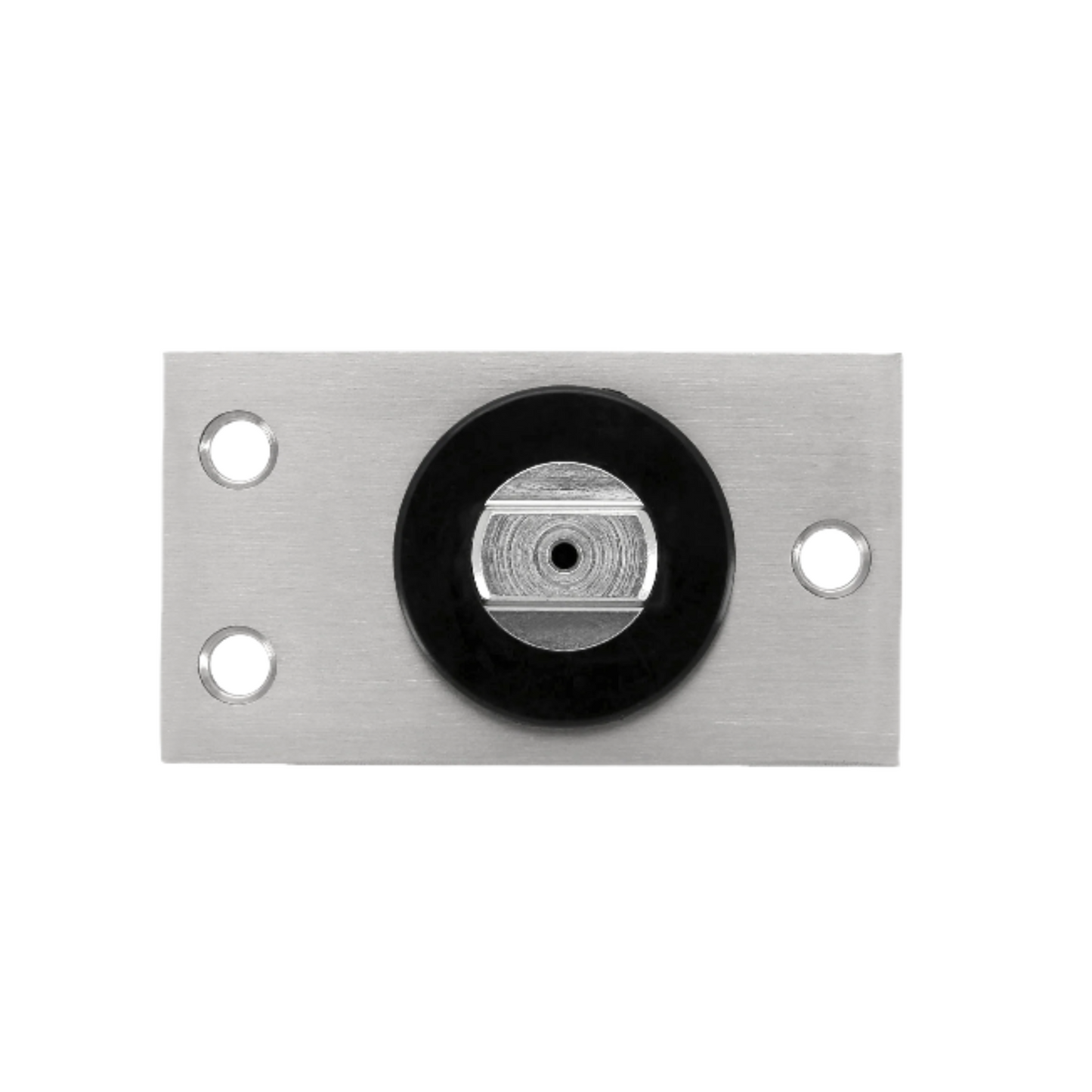

  • CP-250 250kg Free Swing Floor Pivot SSS
1 10

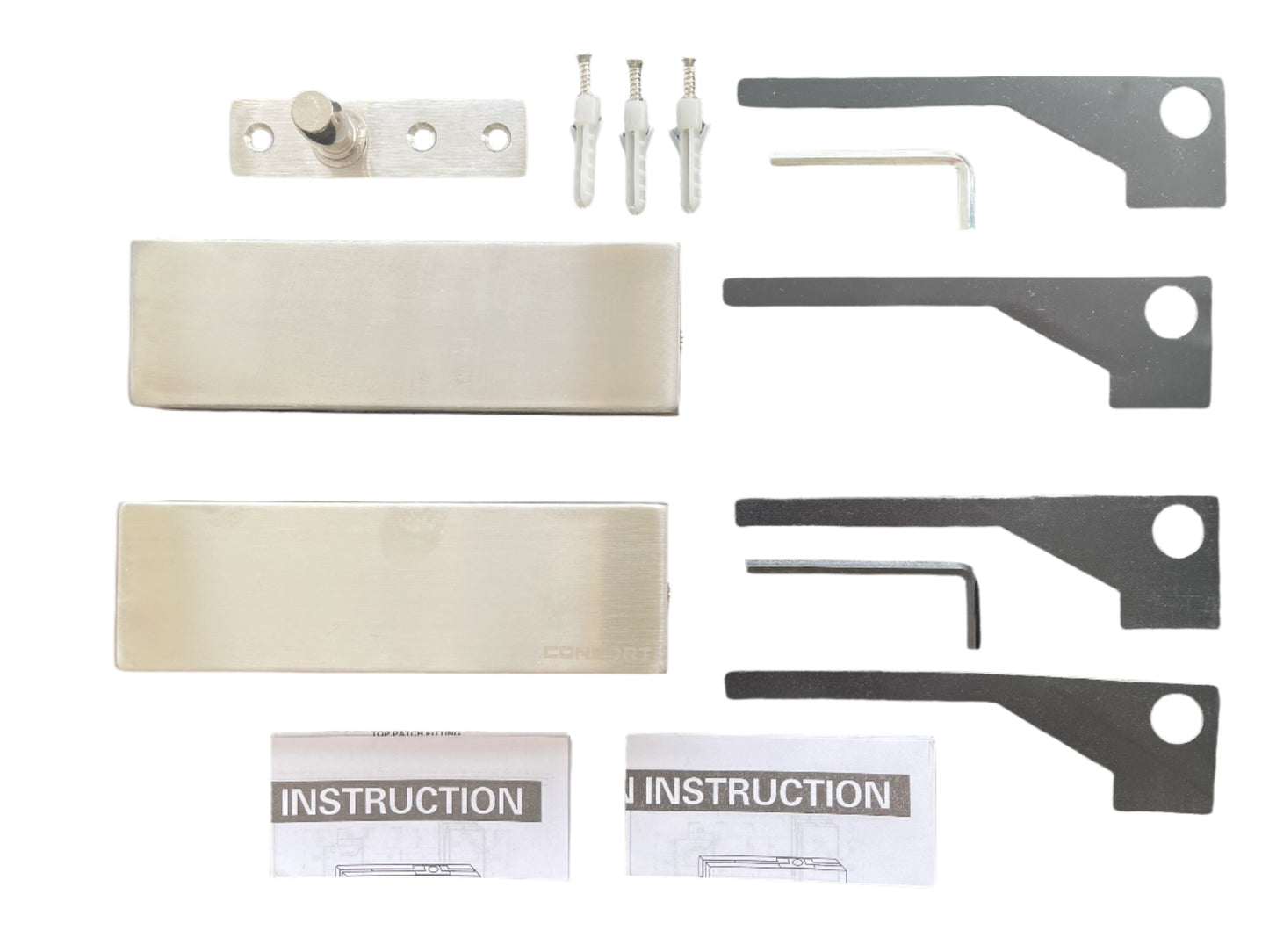

Glass Door Patch Set

Glass Door Patch Set

Enhance your internal glass doors by incorporating our superior universal bottom Glass Door Patch Fitting. Specifically designed for single glazed frameless glass doors with a detachable bracket cover, this fitting offers a Dorma BTS style connection for effortless installation on spindles or floor springs (optional). It is perfectly engineered for interior glass doors.

Features:

  • Top over pivot ( included )
  • Top patch glass door fitting ( included )
  • Bottm patch glass door fitting ( included )
  • Suitable for most market floor springs & pivots ( optional )
  • Includes insert to closer connection
  • Door load weight - Max 80kg
  • Door maxium width - 1000mm
  • Size (mm) - L-164 H-51 D-32
  • Glass size gaskets (mm) - 10-12mm
  • Pivot point (mm) - 53-63

Top Pivot Spindle Dimensons

CPF201- Top Pivot Patch Fitting Plate - Dimensions

Top Patch Dimensions & Glass Cut Out

CPF102 Top Pivot Patch Fitting - Dimensions

Bottom Patch Dimensions & Glass Cut Out

Glass Door Patch Fitting - Bottom Dimensions




  • Expert Advice
  • Speedy Packing
  • Same Day Dispatch
£44.99 GBP
£44.99 GBP
Sale Sold out
Shipping calculated at checkout.

64 in stock

CPF-101 + 102 +202 SSS
