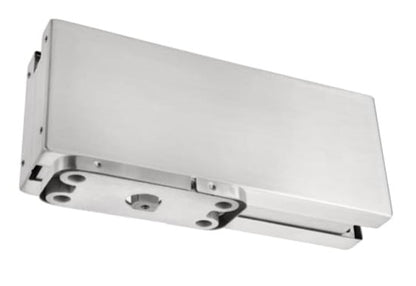

Hydraulic Patch Fitting Set - Glass Door Self Closer

Soft closing door hinge set for internal doors when using toughned safety glass, the Glass Door Hydraulic Closer set offers convenient installation options at the base and top of the door. It is ideal for situations where traditional floor spring closers are not suitable due to factors like underfloor heating or other mechanical services and requires no floor closer digging to save space and service easily due to having a small base footprint.

Hydraulic Patch Closer Fitting Features

• Removeble dust covers
• EN 1154 compliant
• Maximum door weight 100 kg
• Maxium door width 1000mm
• Maximum door leaf height 2700 mm ( 900 mm width )
• Glass thickness gaskets 10 to 12 mm
• Maximum door opening 150° & controlled to 135°
• Dual swing action
• Two speed adjustment closing
• Cycle tested to 500,000
• Alignment adjustment +3 mm in four directions
• 304 standard quick release cover plates
• Color: SSS Stainless Steel Brushed & BLK Black Options
• Type: glass door bottom hydraulic closer

Hydraulic Patch Set Dimensions

Glass Cut Out Dimensions
