Glass Partitioning Head / Wall Channel - 25x27x3m

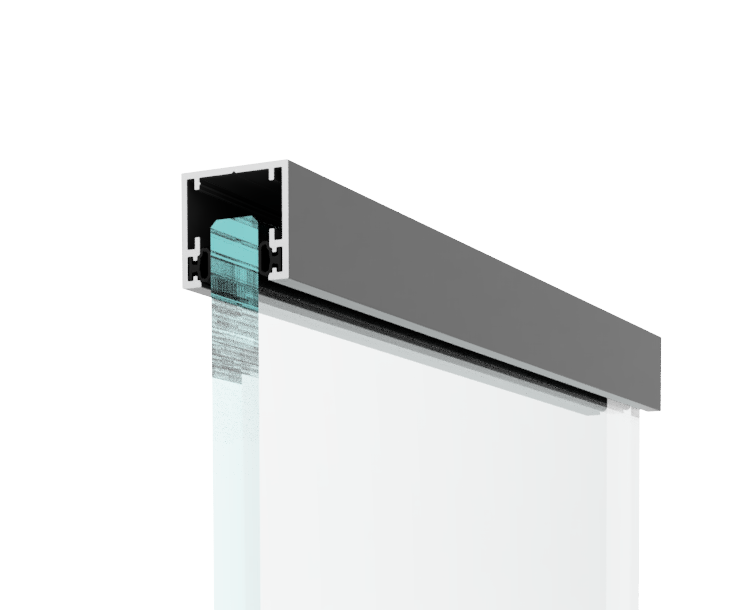

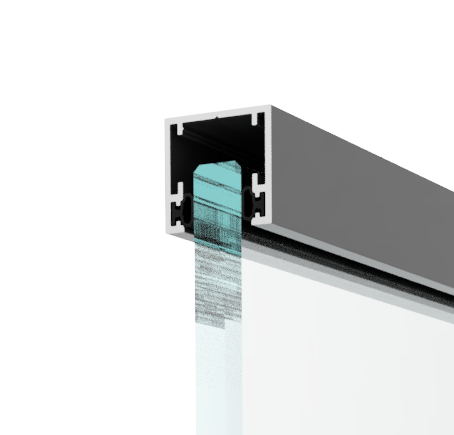

Engineered specifically for glass screen partitioning applications, this 25x27x3m aluminium U channel facilitates superior head and wall depth clearance.

The precision-designed profile enables efficient glass panel insertion, allowing for precise adjustment and positioning prior to silicone application or completion with the gasket system for professional installation results. oftern refered to as head track or glazing trims.

PLEASE NOTE AN ALTERNATIVE MAY BE SENT STA

Specification

• Aluminium channel supplied - 25 x 27 x 3000mm lengths

• 20mm depth of panel or glass maximum capacity.
• Available in 3 popular colours White / Silver / Black.
• Durable powder costing
• Engineered from T6 Internal architectural grade aluminium.

• Some drilling on site maybe required - excludes fixings
• Slide in anti friction gaskets INCLUDED 10-13mm glass sizes.
• Glazing range >>>

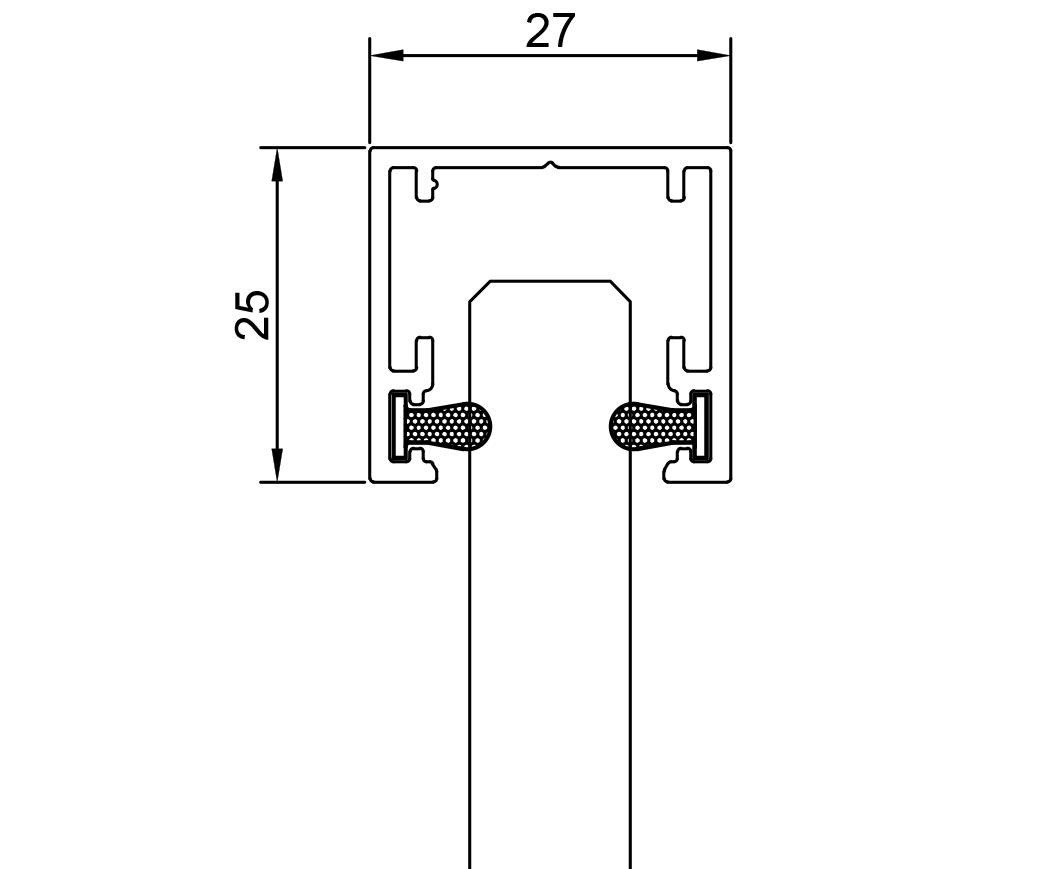

Head Channel Dimensions
