Collection: Partitioning Wall & Reveal Trims

Trims Description

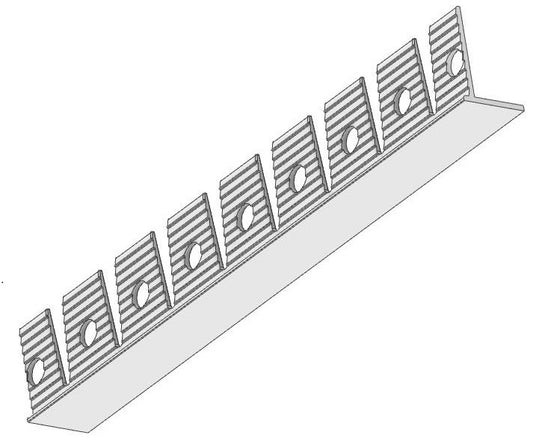

Partition Wall Trims are metal alloy aluminium drywall trims compatible with a wide range of plasterboard thicknesses, from single gypsum boards to double skin applications. They are able to create horizontal or vertical reveal, beading and shadow gap details, and in cases certain profiles can be curved. The aluminium trims are versatile enough to be used in several drywall settings including creating channels in or under suspended ceilings, door frame abutments, recessed floor skirting, endcapping/fairends, stairwells and window frames.

They are available in standard 3000mm lengths in the standard RAL colour "WHITE" 9010. They are produced and extruded from a T6 architectural grade aluminium alloy to BS1474, ensuring durability and strength.

The trims are suitable for use on both standard stud and steel frame system walls ( SFS ) on internal tape and join applications, with a tendacy for preferance aluminium trims can be mitre saw cut for versatility on projects on site.

Also maybe known as R-Type Trim  Shadow Gap Trims / Edge Bead Trims / Metal Reveal Trims / Door Casing Reveal Trims / Skirting Reveal Trims / Stairway Reveals

Specifications

• All trims supplied in 3000mm lenghts.
• Colour RAL 9010 "WHITE".
• Bespoke colours MOQ please contact us
• T6 architectural grade aluminium.
• Can be cut and mitred precise on site.
• Feather edged for tape and joint / plastering.
• Pre punched for mechanical fixing.
• Several sizes available.
